System Diagram

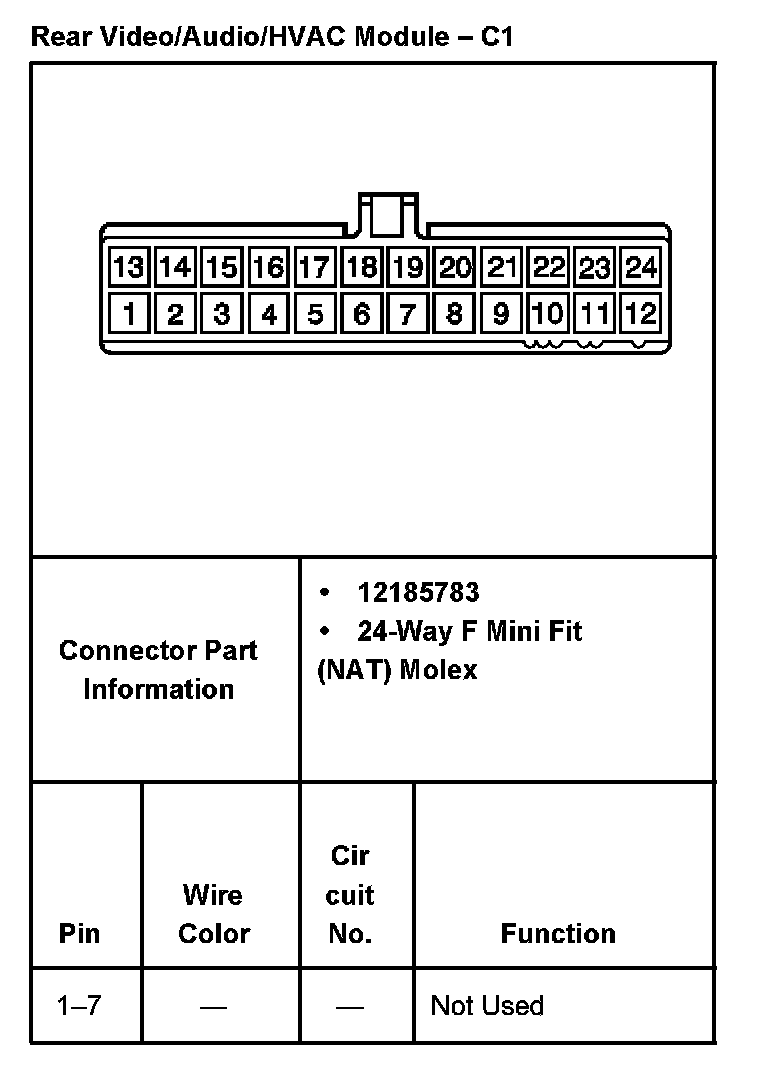

Rear Video/Audio/HVAC Module - C1 Part 1:

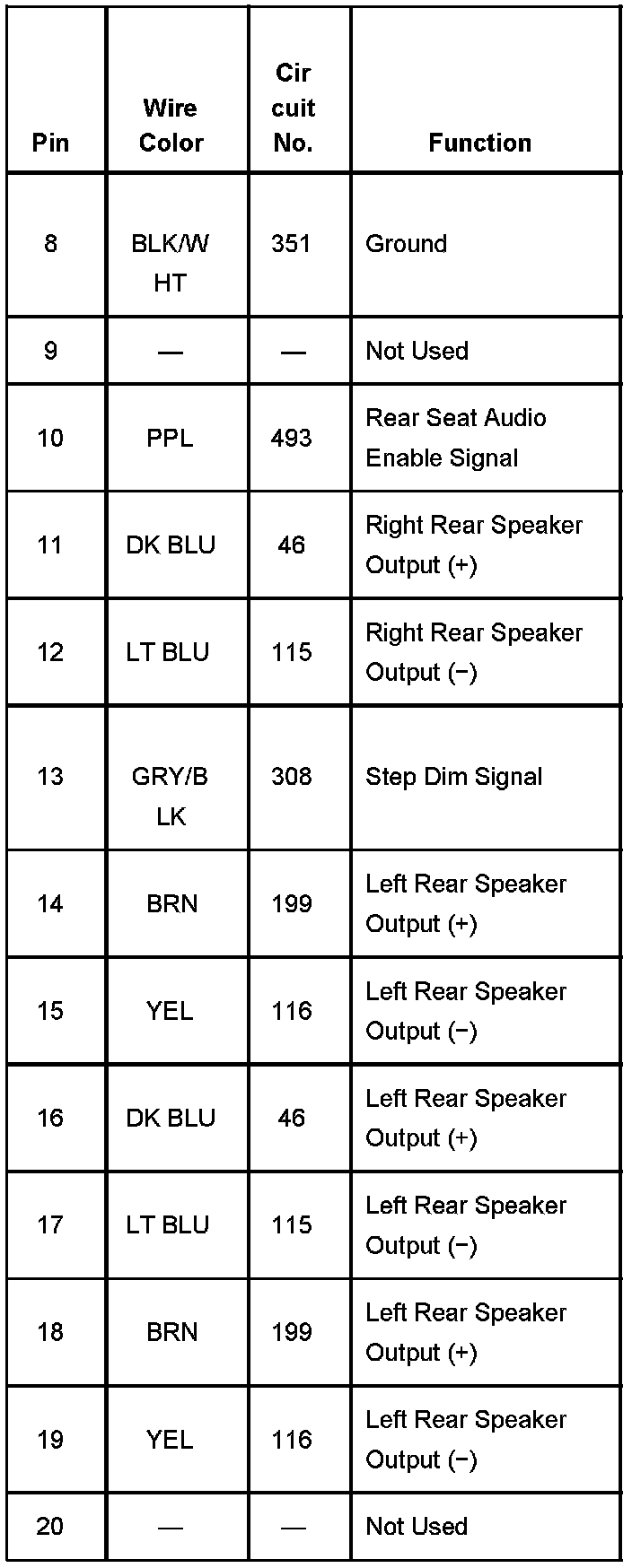

Rear Video/Audio/HVAC Module - C1 Part 2:

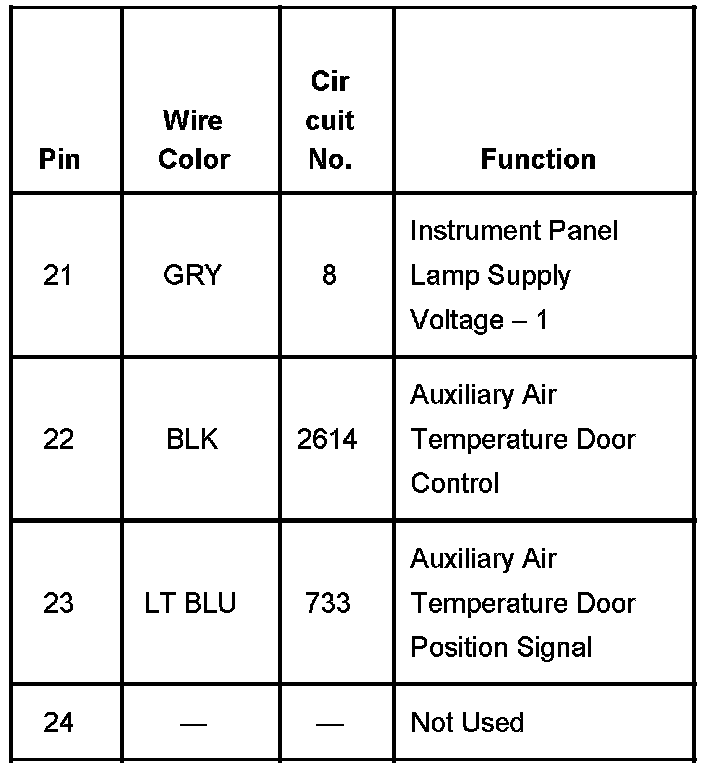

Rear Video/Audio/HVAC Module - C1 Part 3:

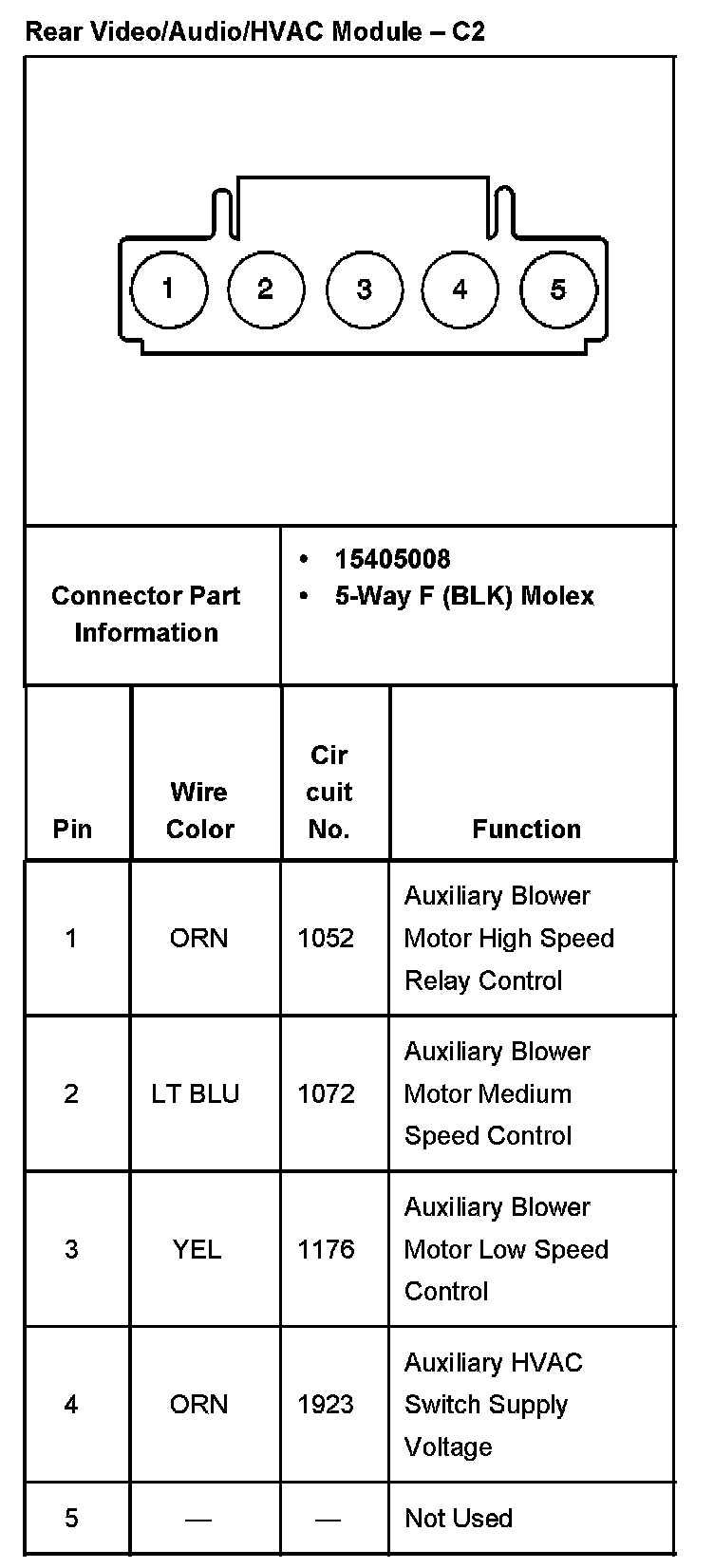

Rear Video/Audio/HVAC Module - C2:

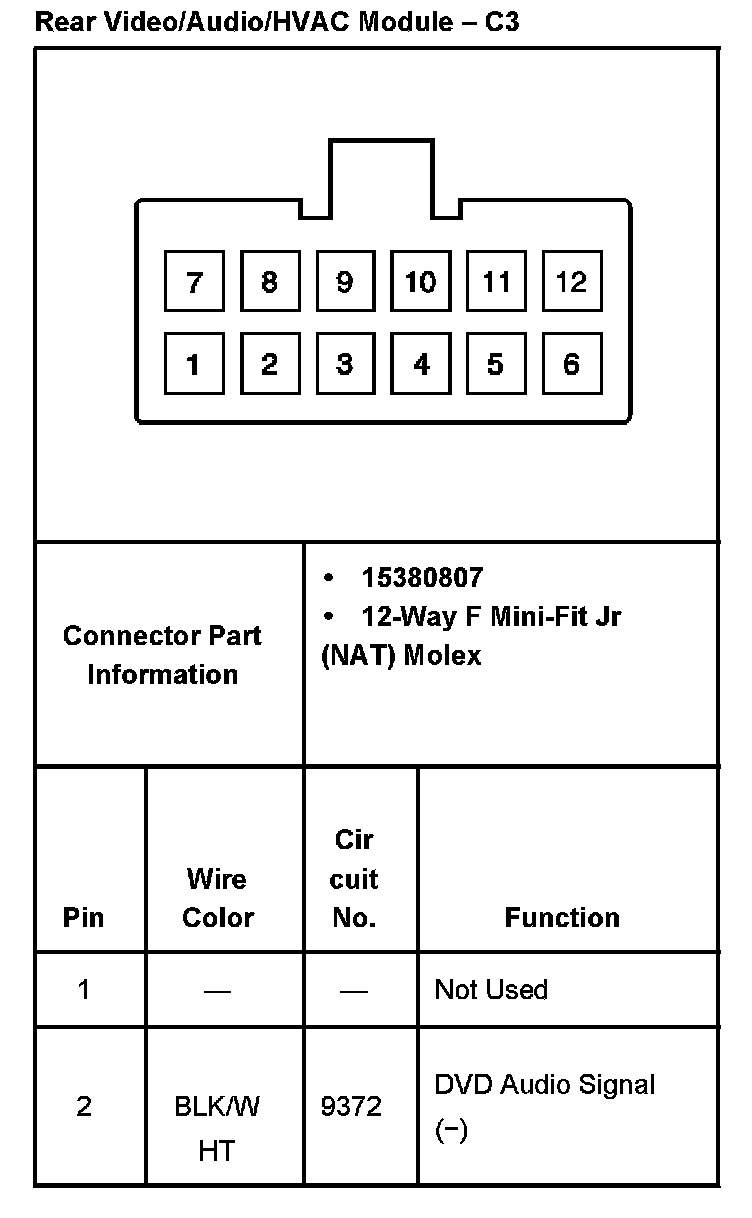

Rear Video/Audio/HVAC Module - C3 Part 1:

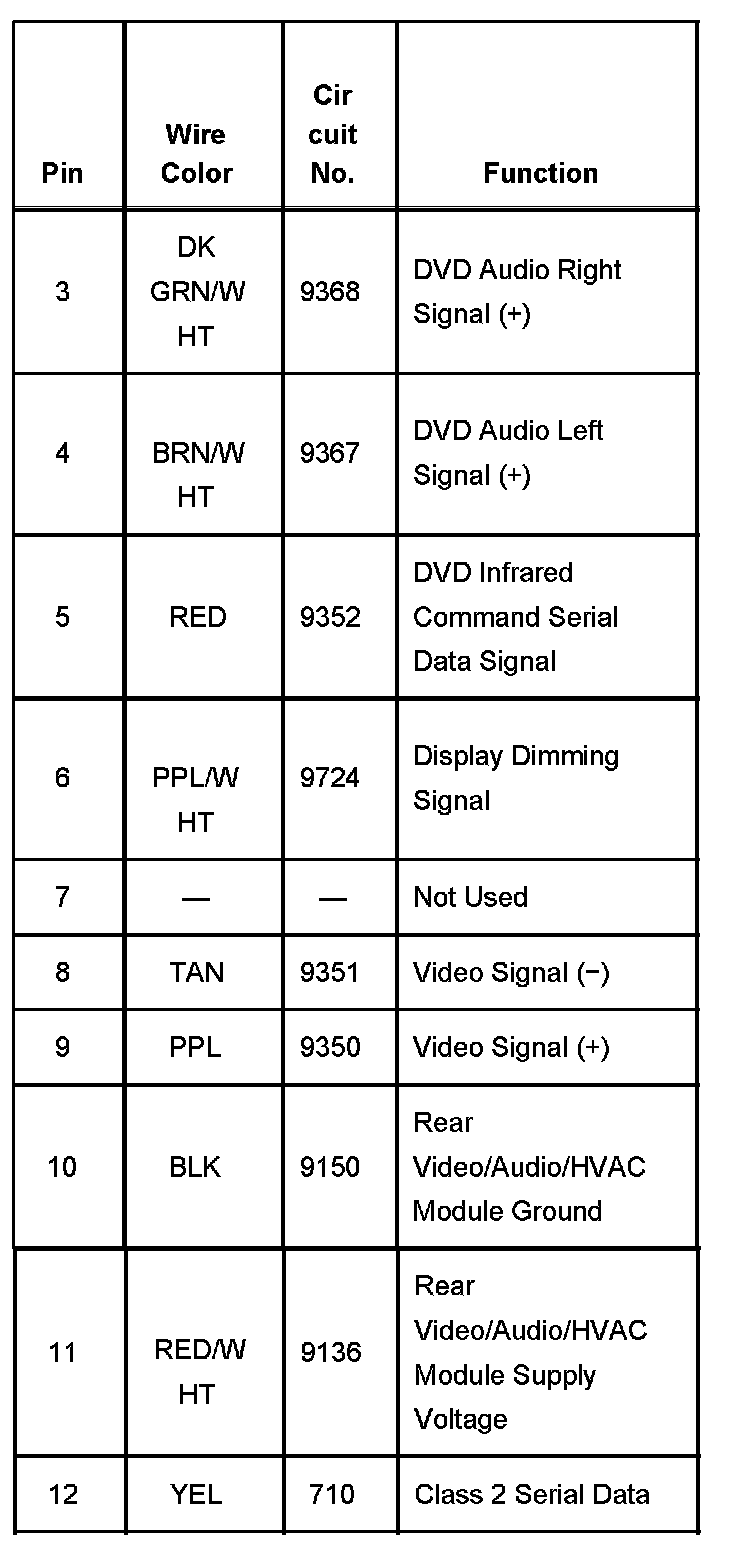

Rear Video/Audio/HVAC Module - C3 Part 2:
