Transfer Case
Transfer Case

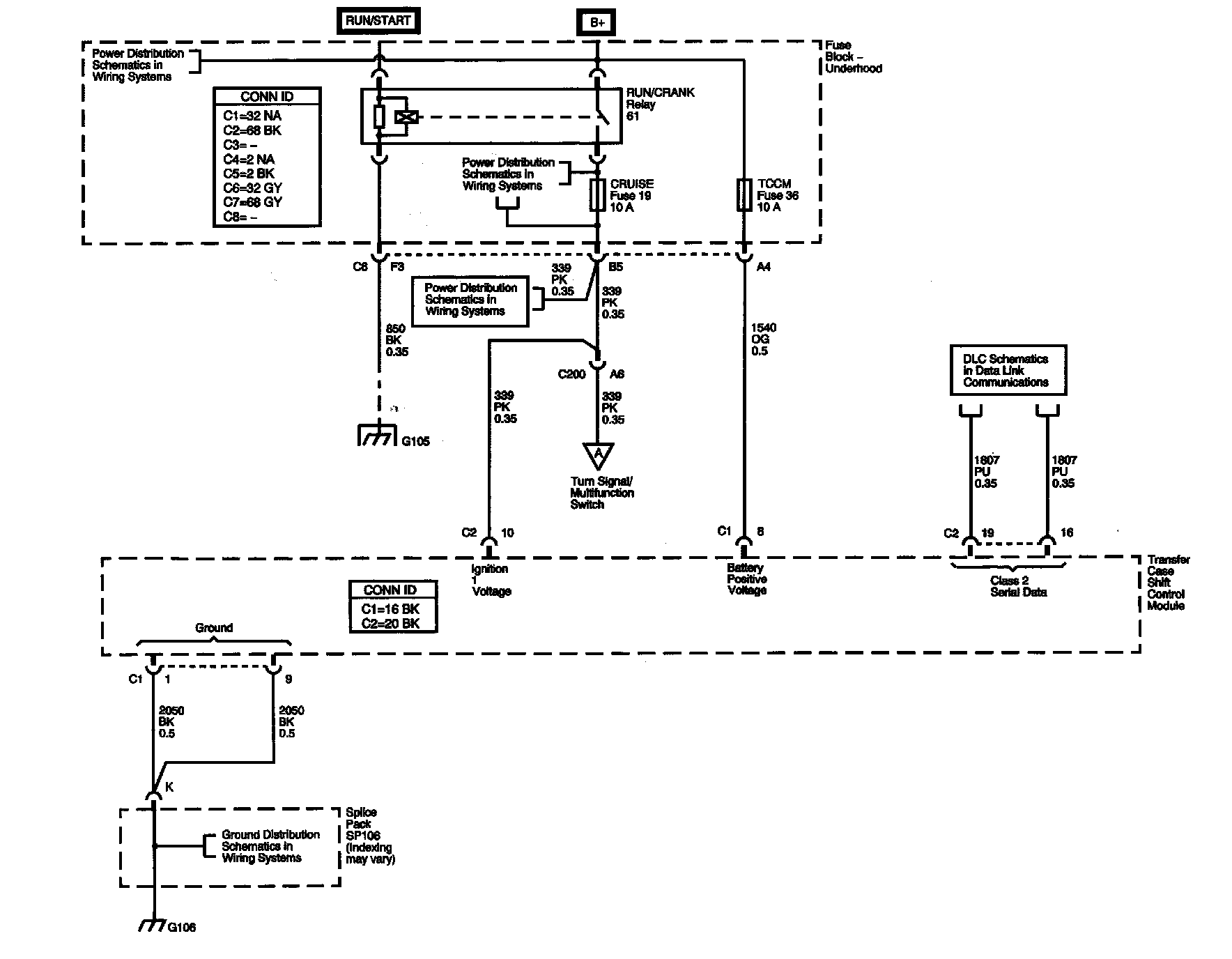

Power, Ground, and DLC:

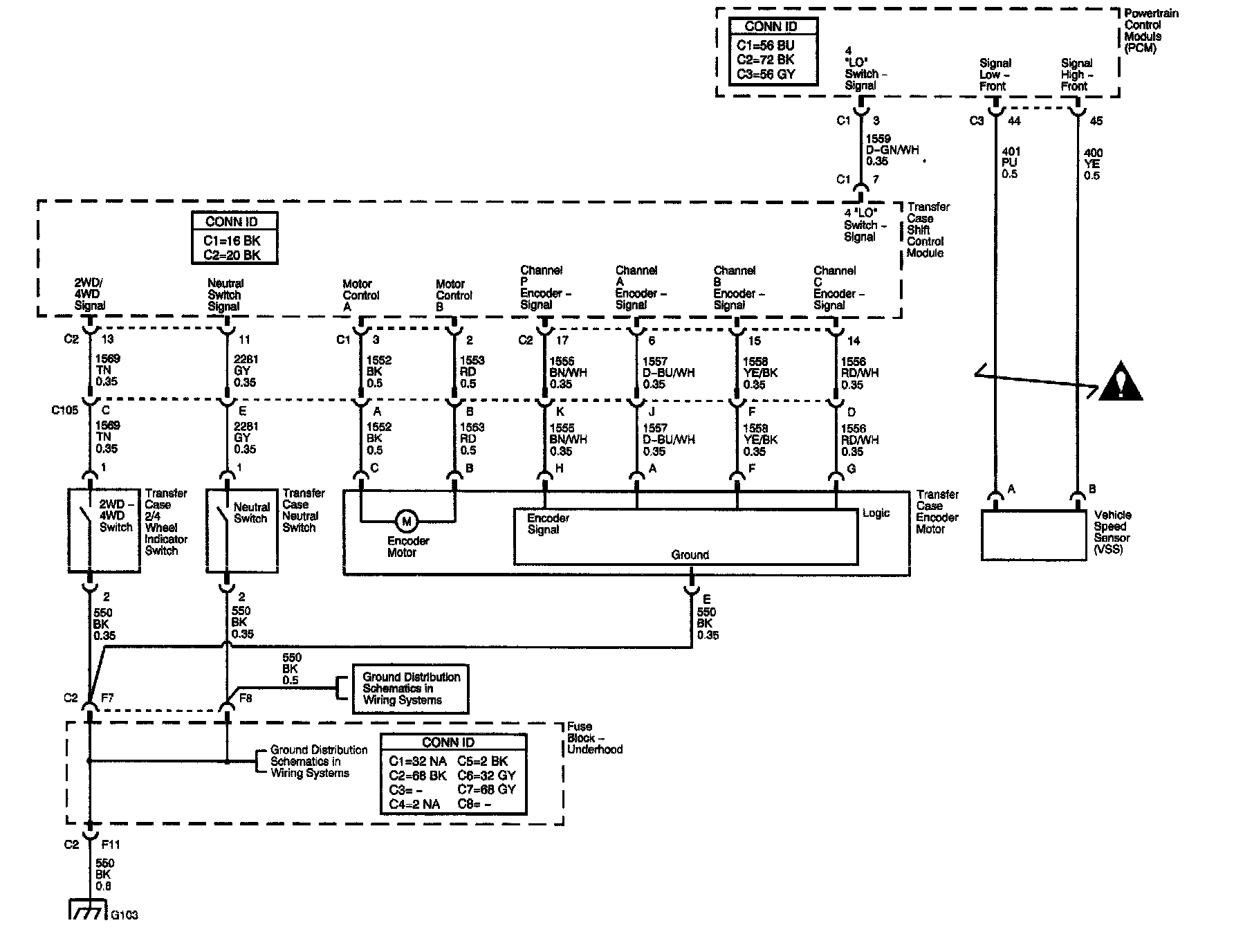

Transfer Case Encoder Motor:
Front Axle Actuator:

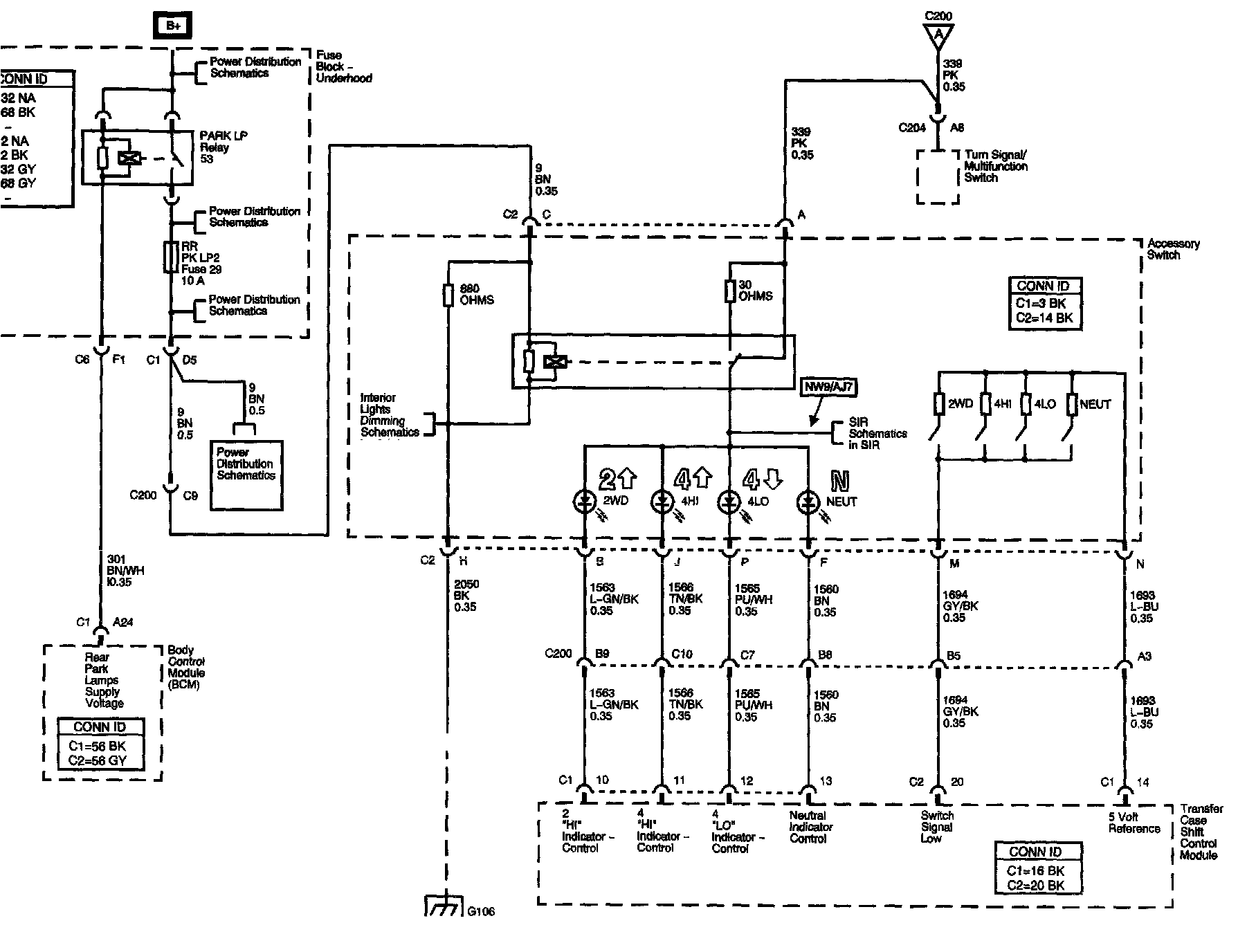

Shift Control Switch Inputs:
