Rear Fender Liner: Service and Repair

Wheelhouse Liner Panel Replacement - Rear

Removal Procedure

1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
2. Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.

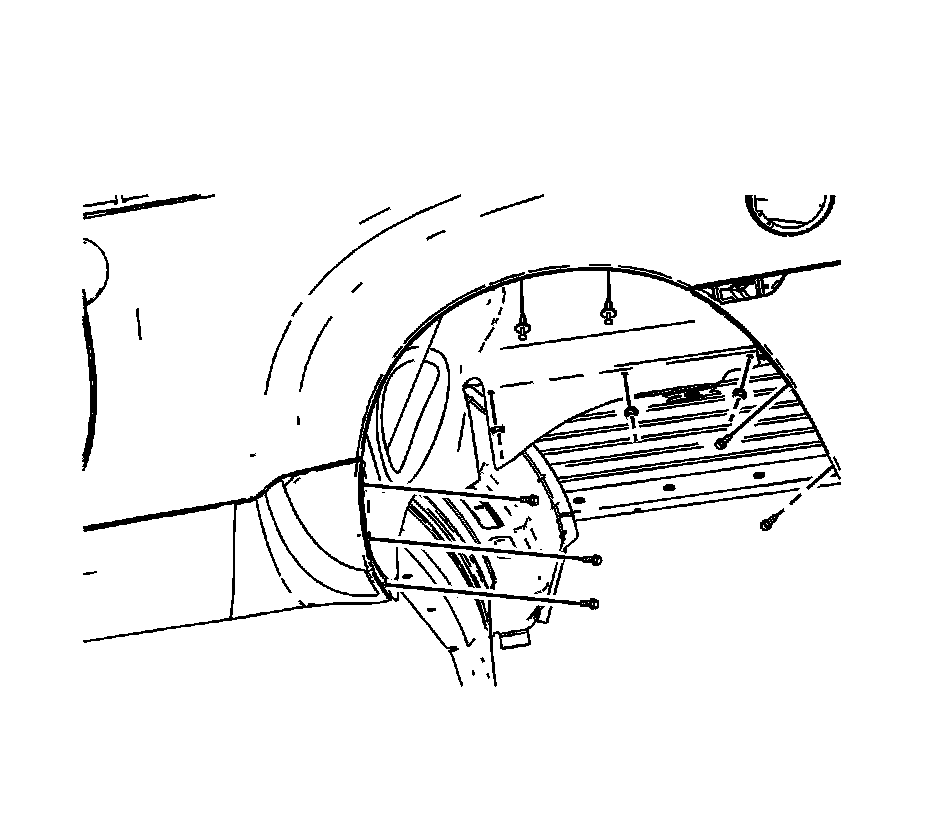

3. Remove the rear wheelhouse liner panel retainers.

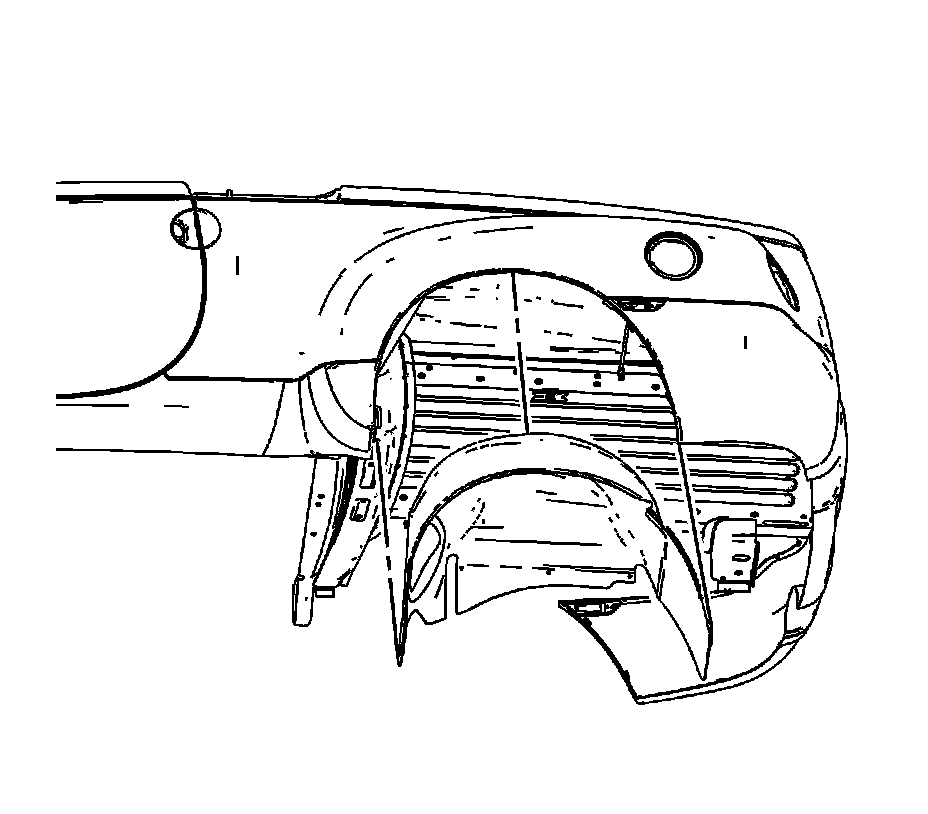

4. Remove the rear wheelhouse liner panel from the vehicle.



Installation Procedure





1. Insert the rear wheelhouse liner panel into the wheel opening.




2. Install the rear wheelhouse liner panel retainers.
3. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
4. Lower the vehicle.
