Convertible Top Latch Position Switch / Sensor: Locations

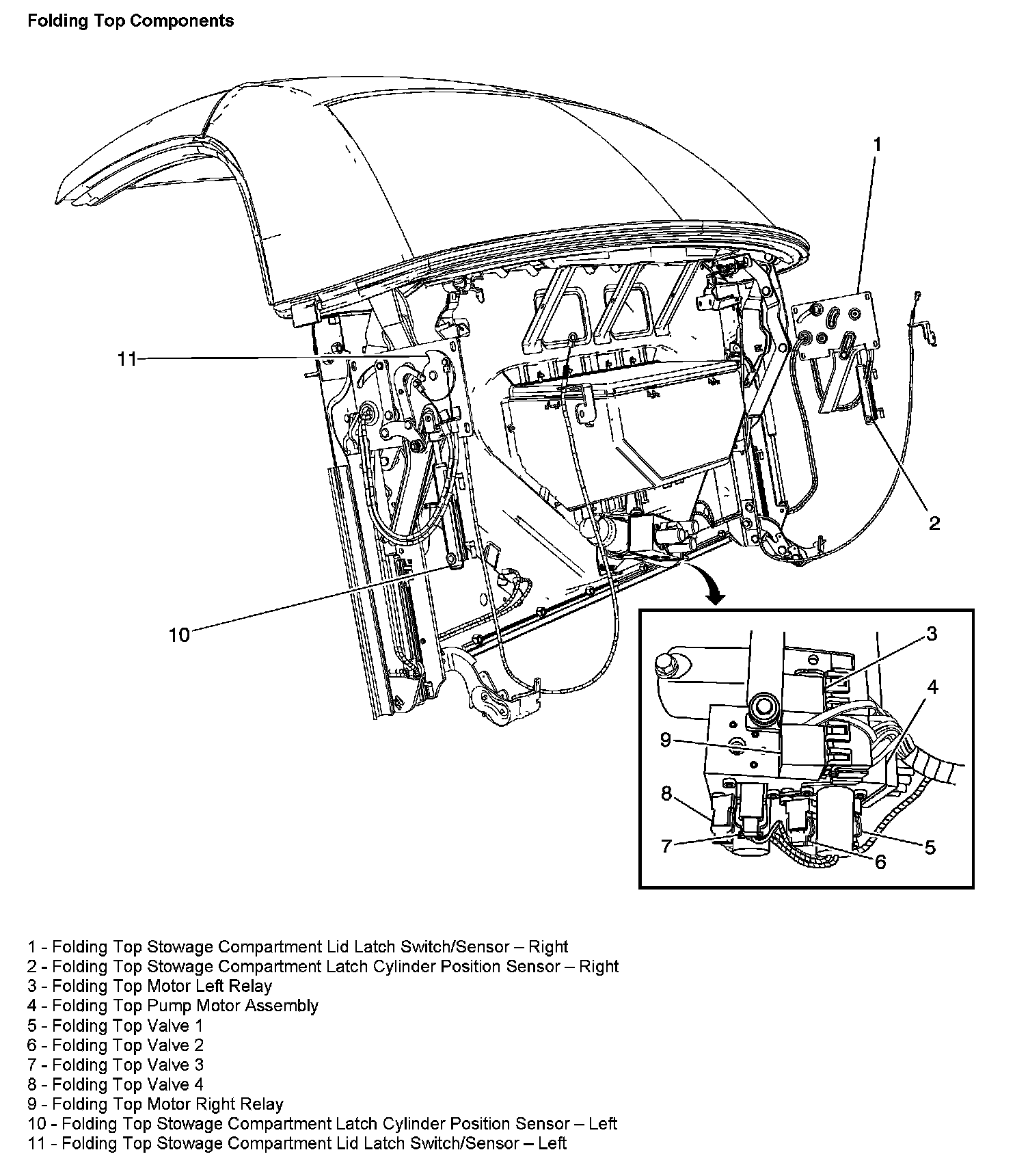

Folding Top Components:



Folding Top Roof Components:



Header Harness Routing:
