Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
2004
>>
SSR V8-5.3L VIN P
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C100 - C199
>>
C106
C106

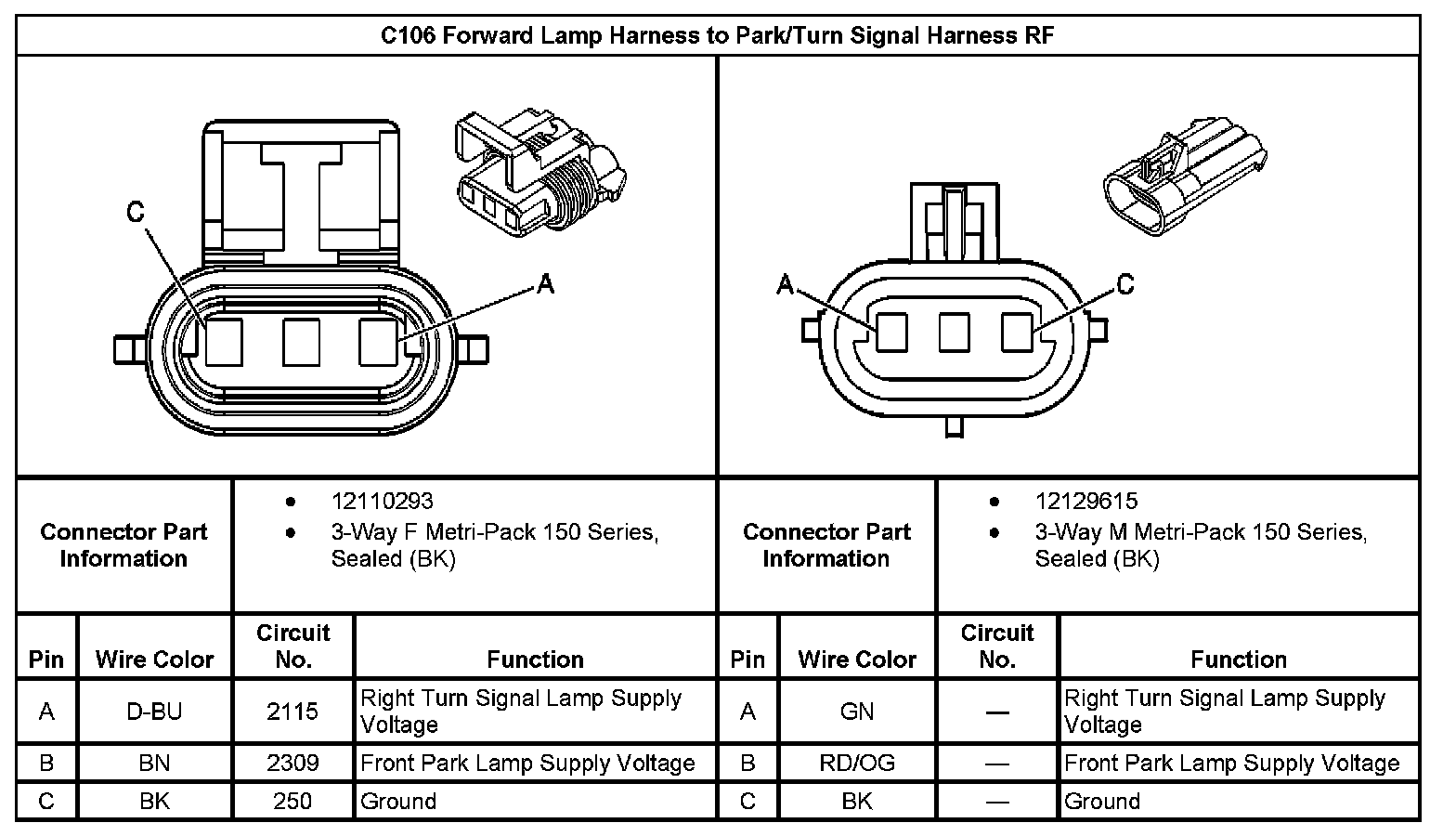

C106 Forward Lamp Harness to Park/Turn Signal Harness RF:
