Chevy Truck
>>
2004
>>
SSR V8-5.3L VIN P
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C400 - C499
>>
C400
C400

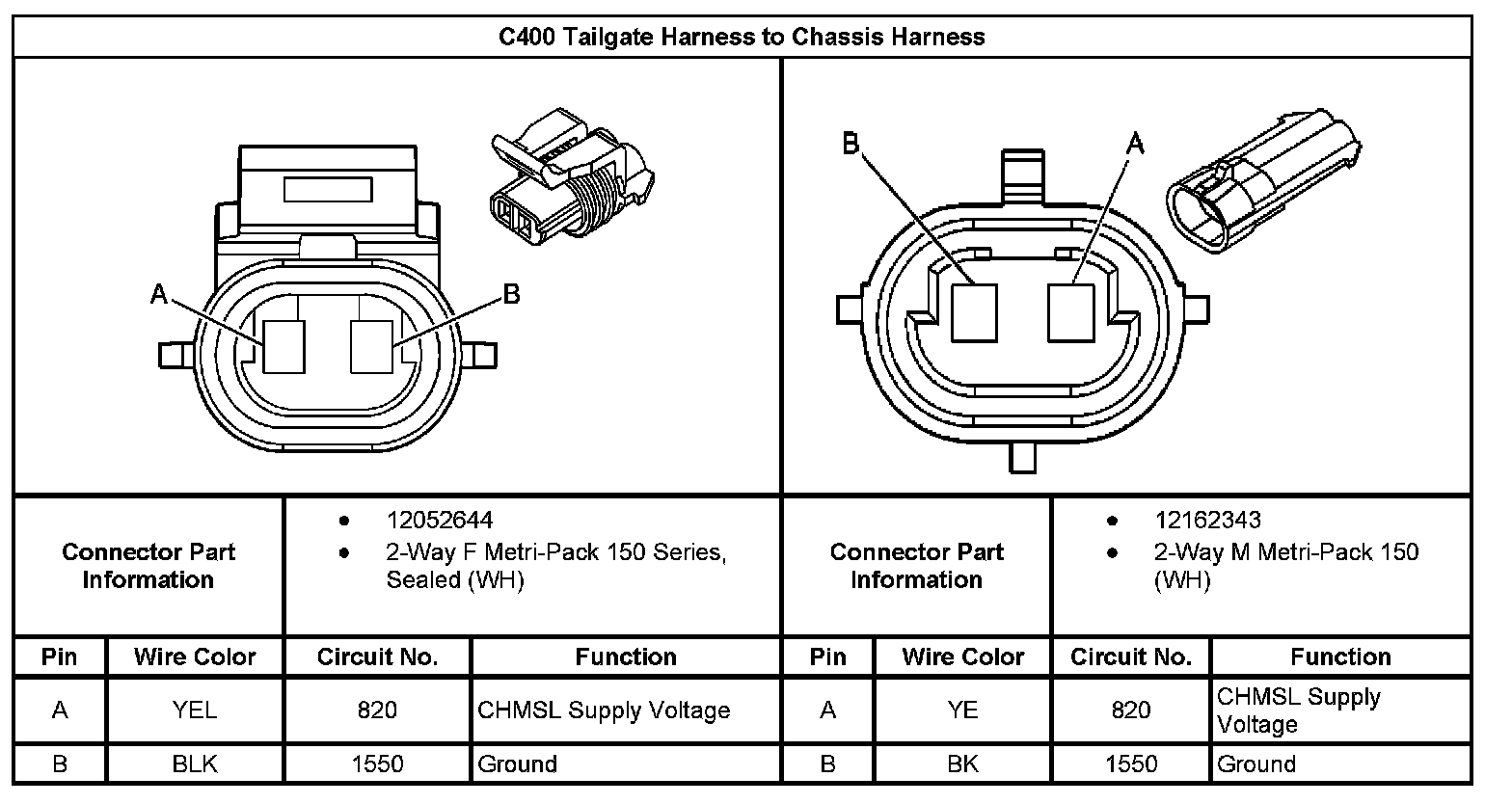

C400 Tailgate Harness to Chassis Harness:
