Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
2004
>>
SSR V8-5.3L VIN P
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C400 - C499
>>
C404
C404

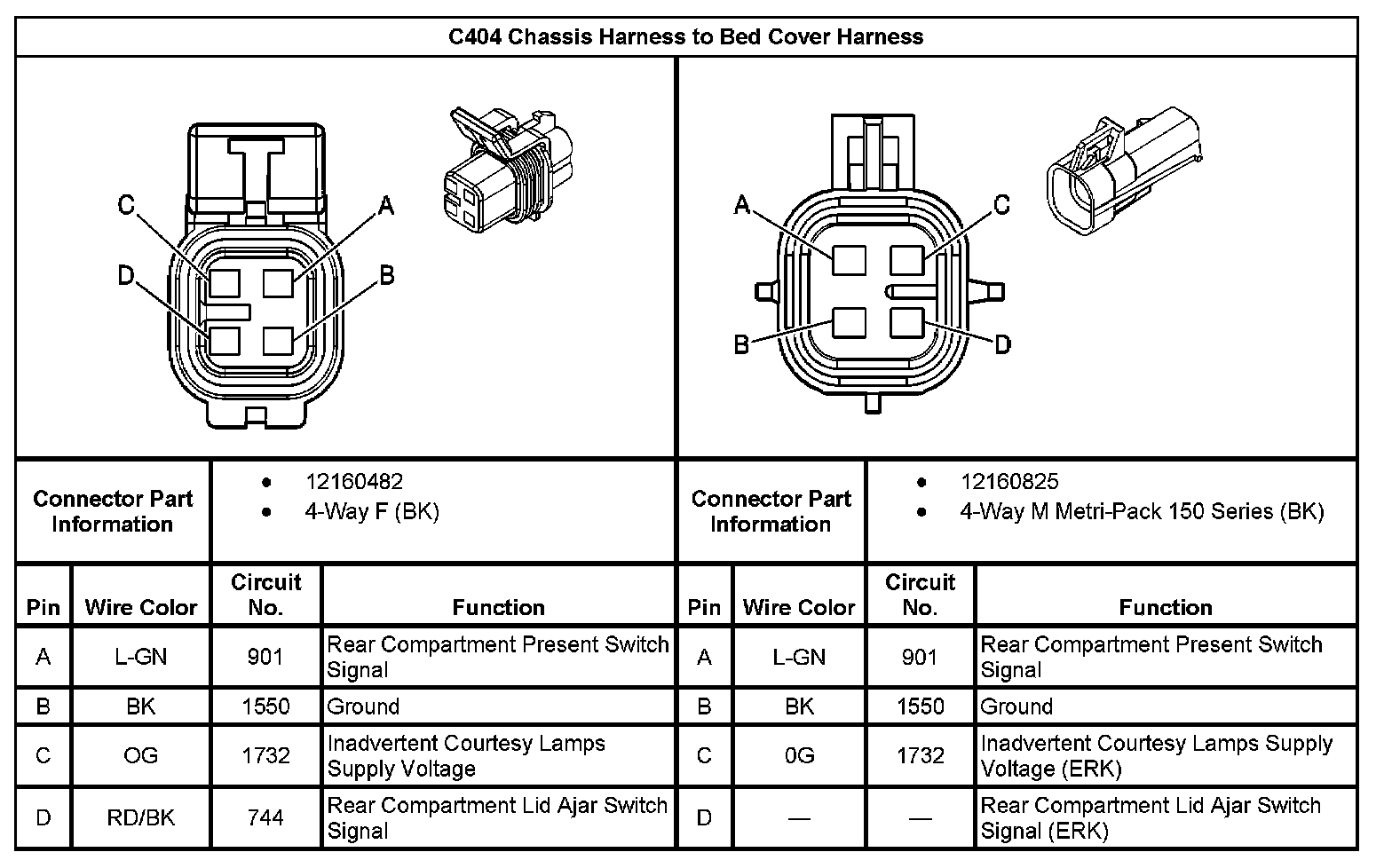

C404 Chassis Harness to Bed Cover Harness:
