Home
>>
Chevy Truck
>>
2004
>>
SSR V8-5.3L VIN P
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C200 - C314
>>
C205
C205

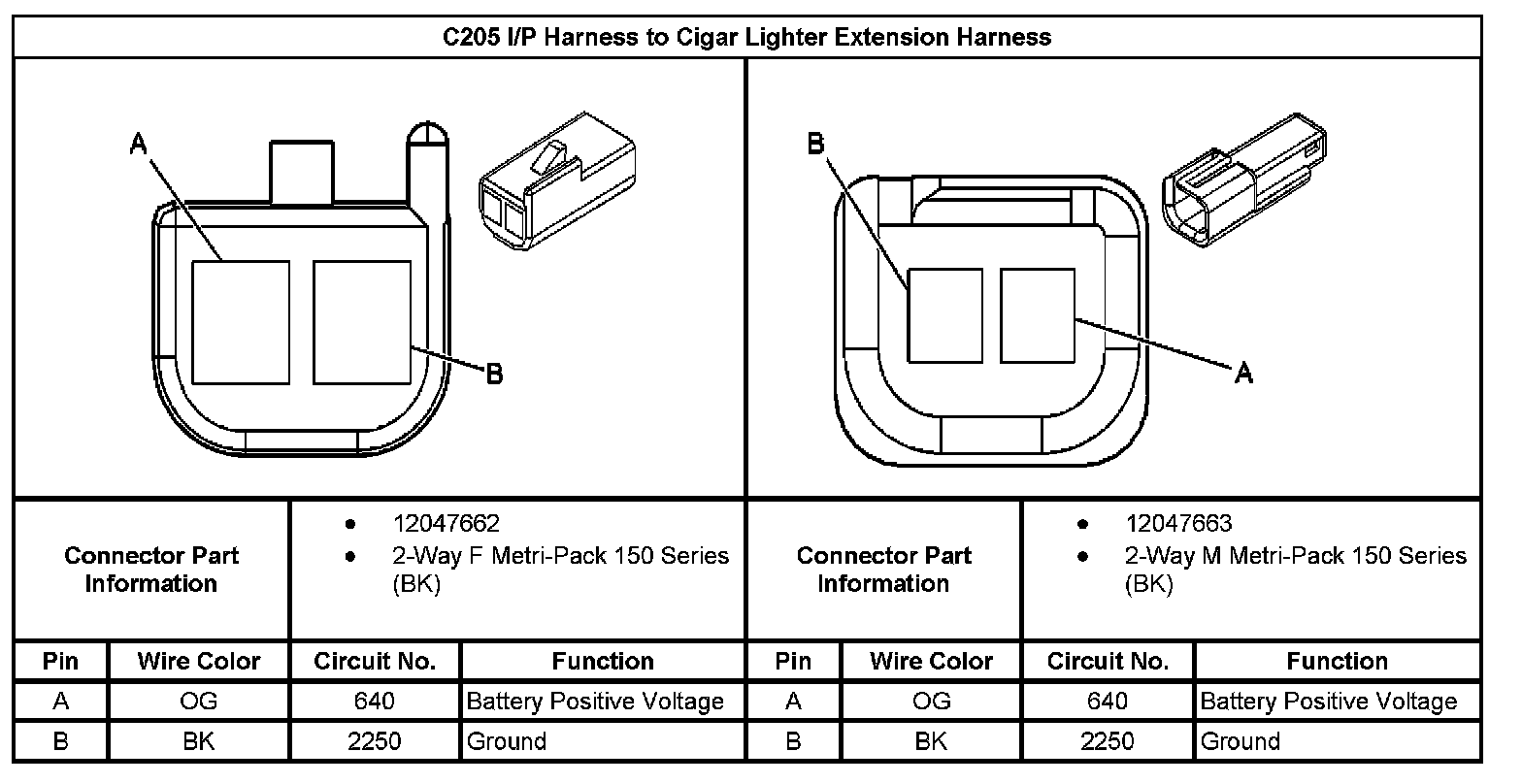

C205 I/P Harness to Cigar Lighter Extension Harness:
