Multiple Junction Connector
>>
C200 - C314
>>
C304
C304

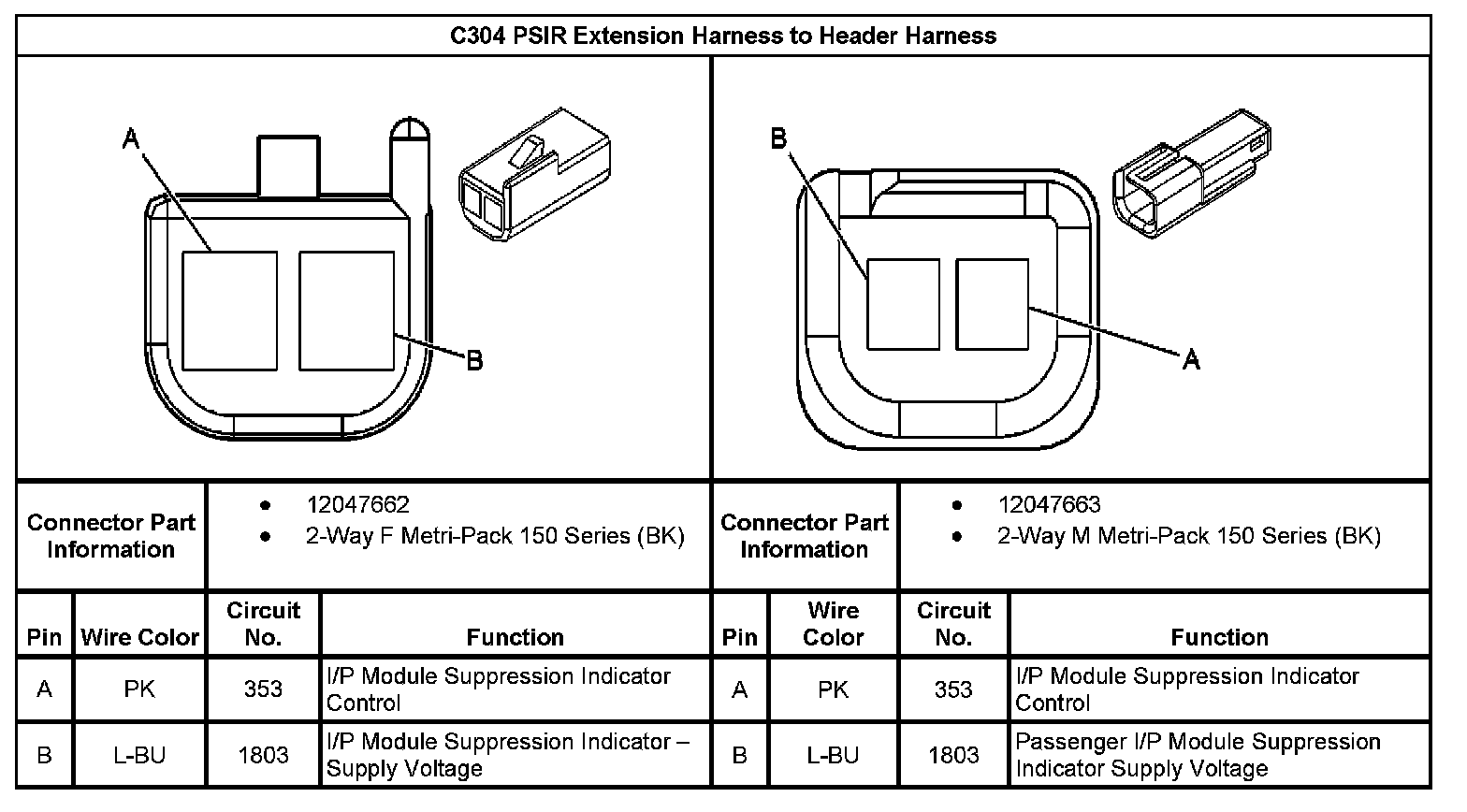

C304 PSIR Extension Harness to Header Harness:
