Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
2004
>>
SSR V8-5.3L VIN P
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C200 - C314
>>
C308
C308

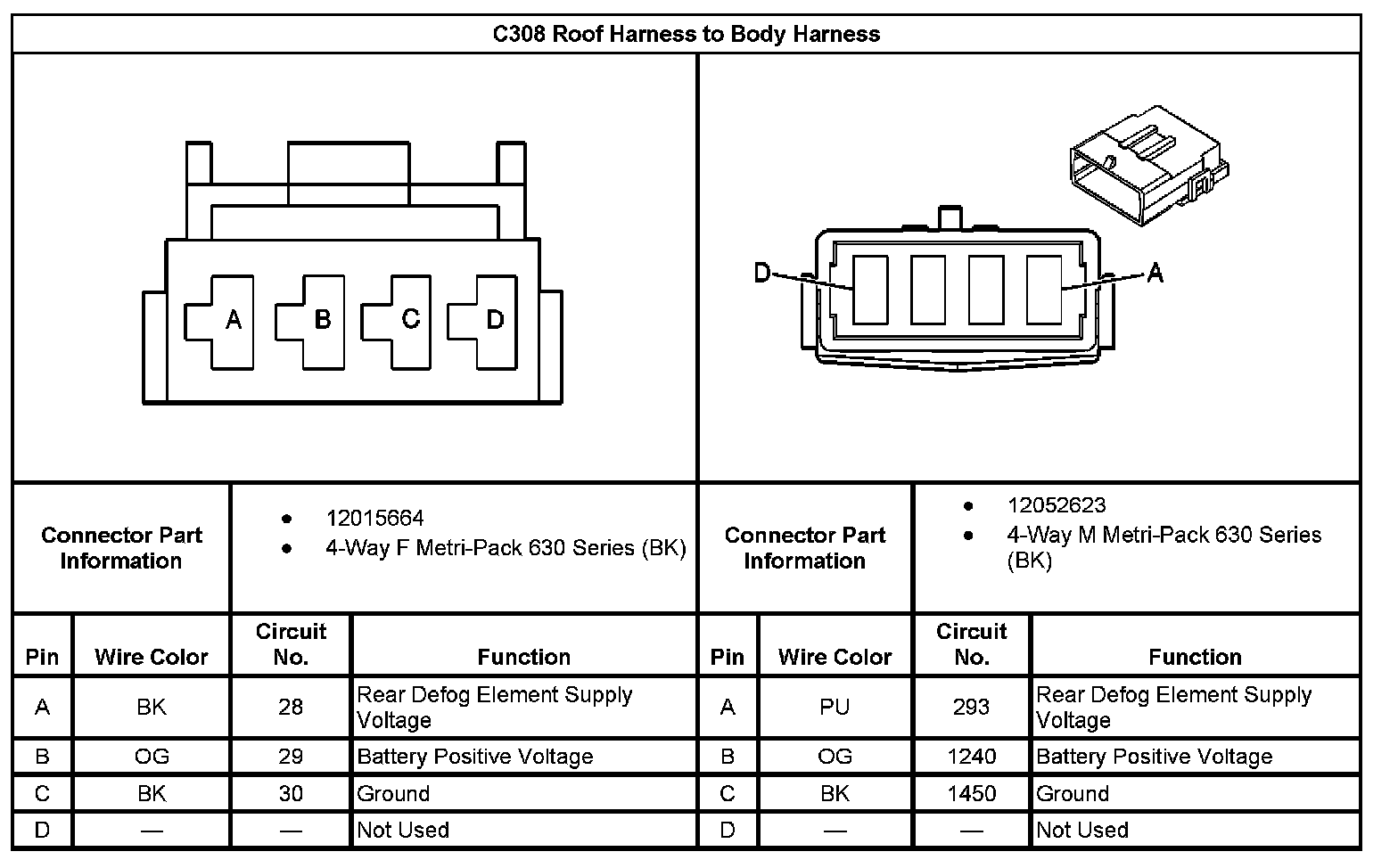

C308 Roof Harness to Body Harness:
