Speaker-RF Door

Speaker-RF Door:

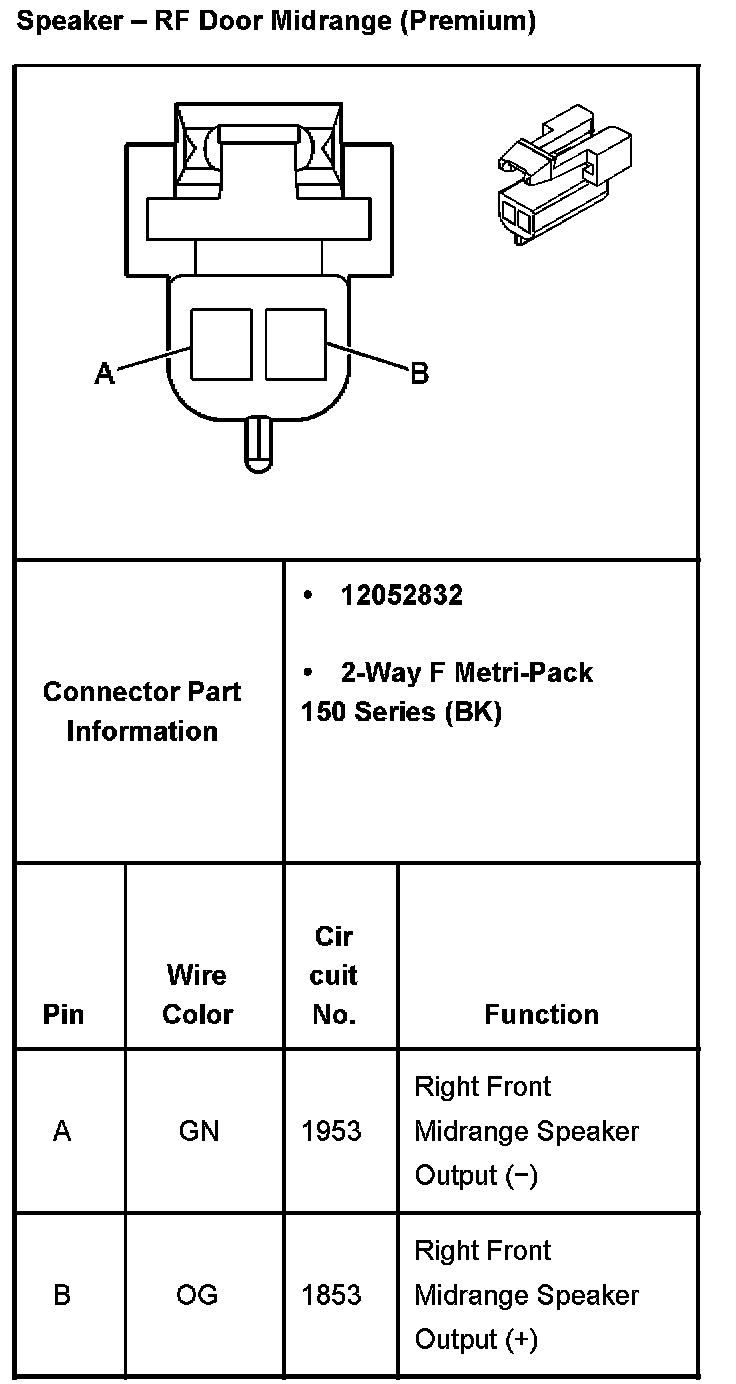

Speaker-RF Door Midrange (Premium):

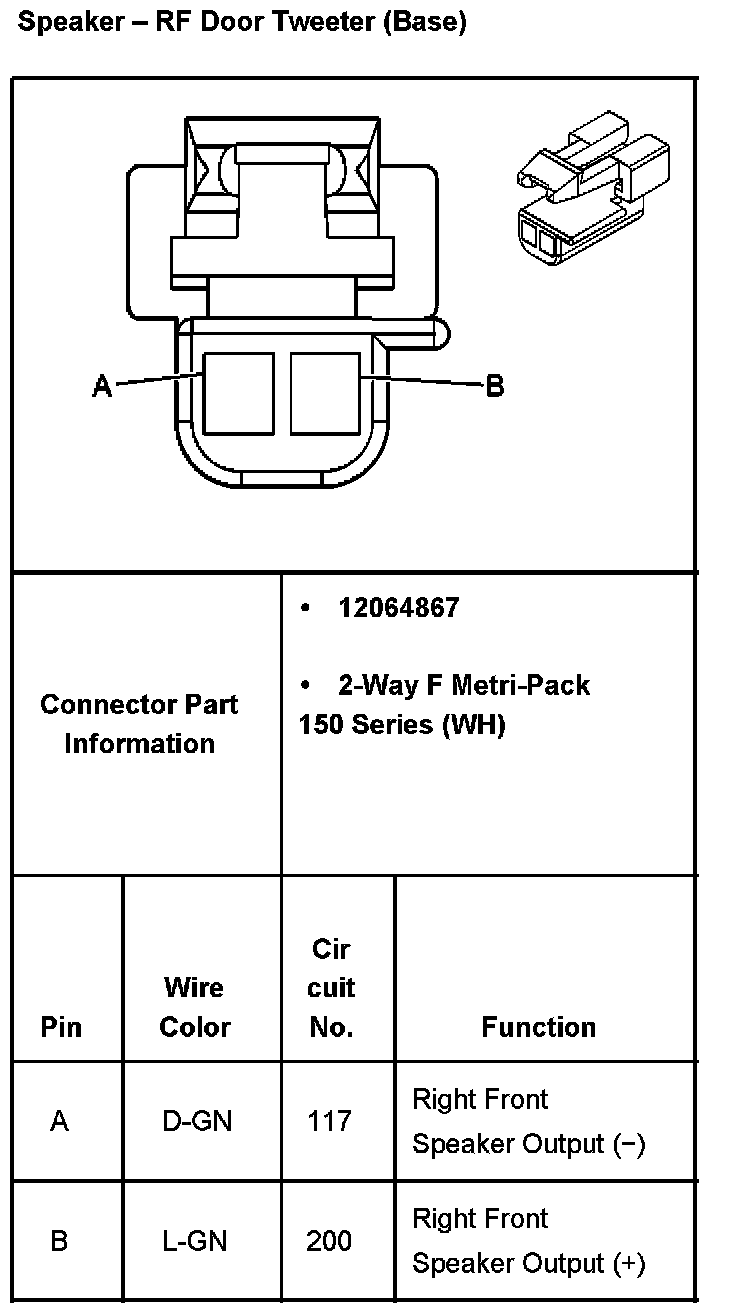

Speaker-RF Door Tweeter (Base):
