Convertible Top

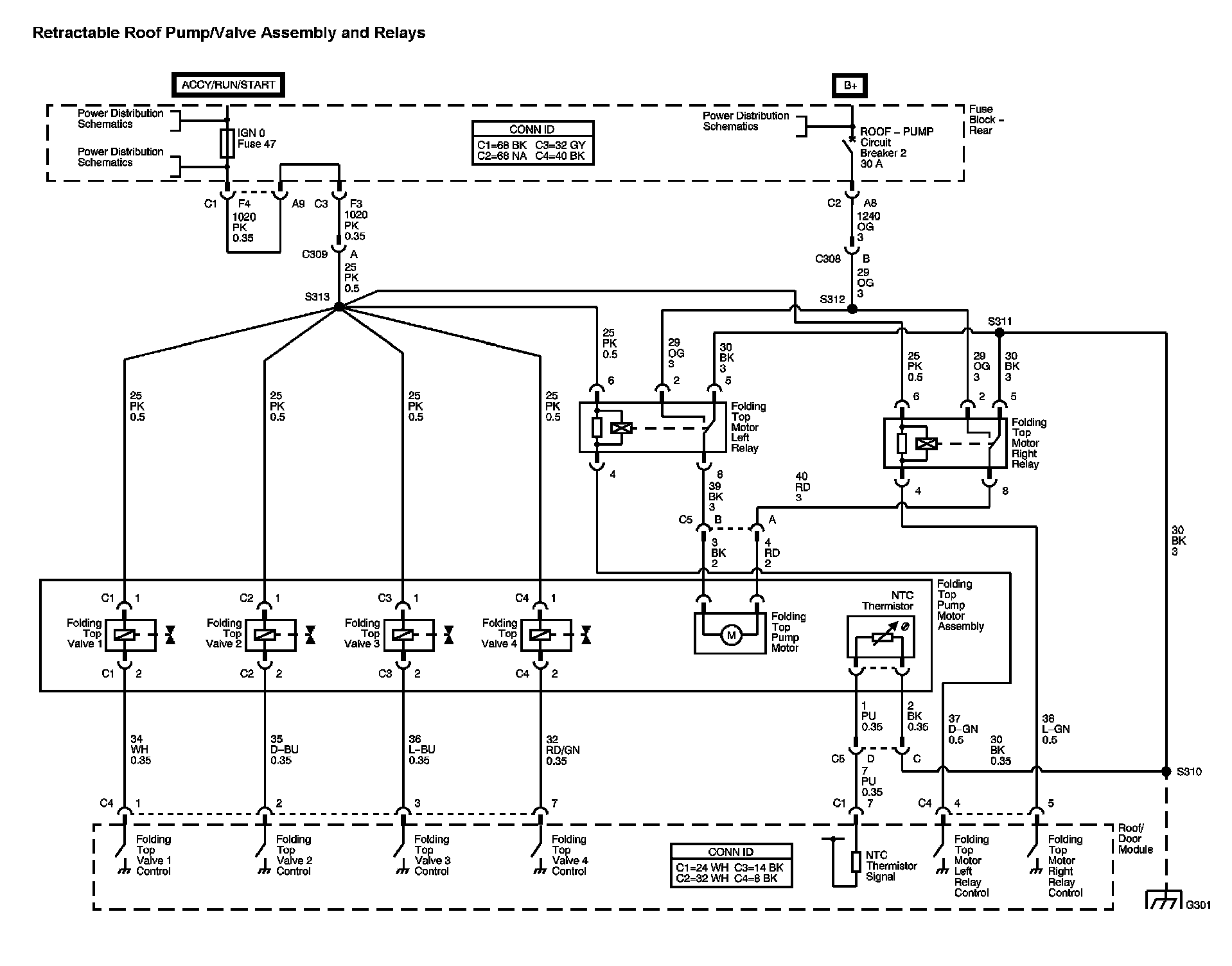

Power Folding Top Diagram 1:

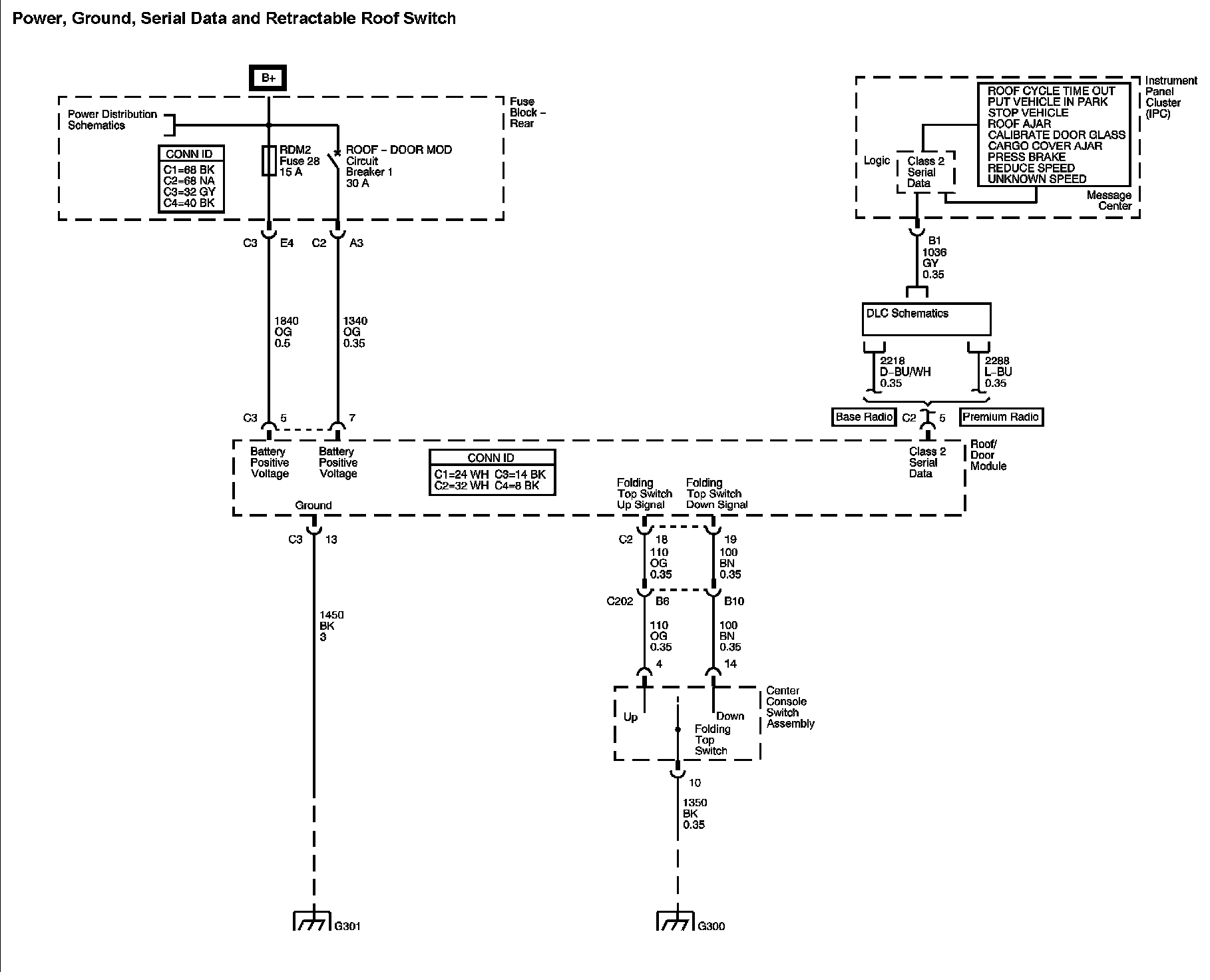

Power Folding Top Diagram 2:

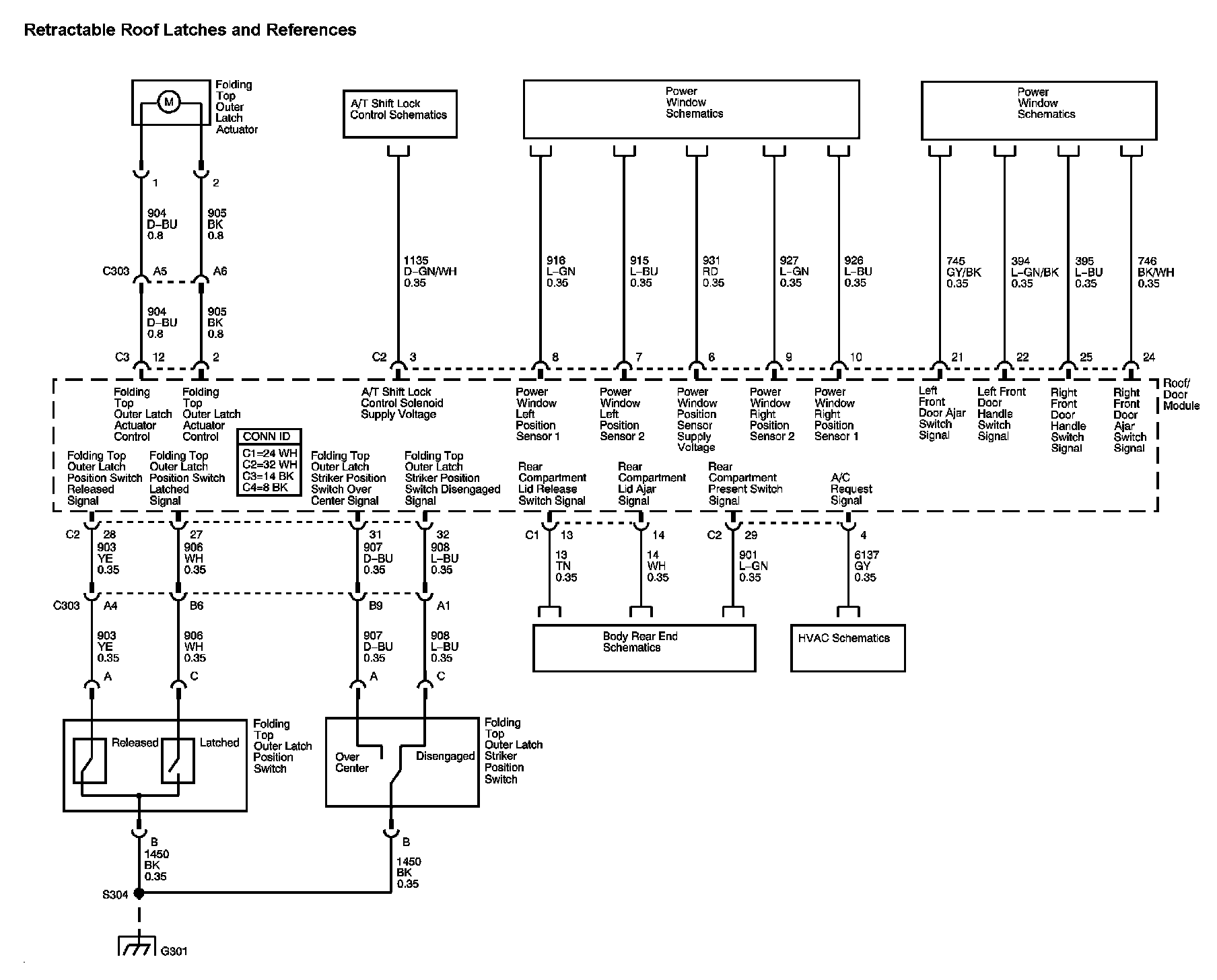

Power Folding Top Diagram 3:




Power Folding Top Diagram 4:
