Shift Solenoid: Locations

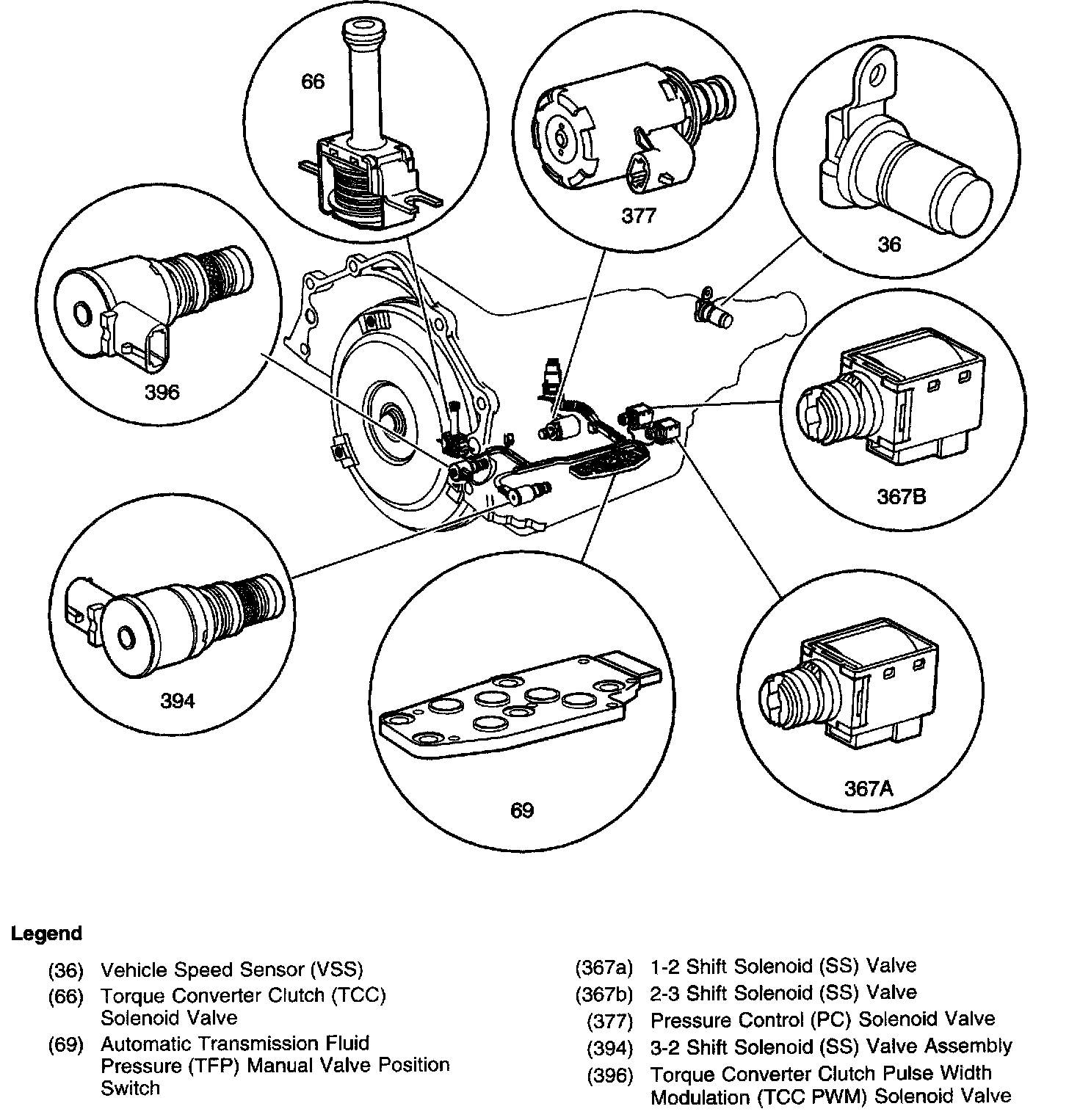

Automatic Transmission Electronic Component Views





Electronic Components

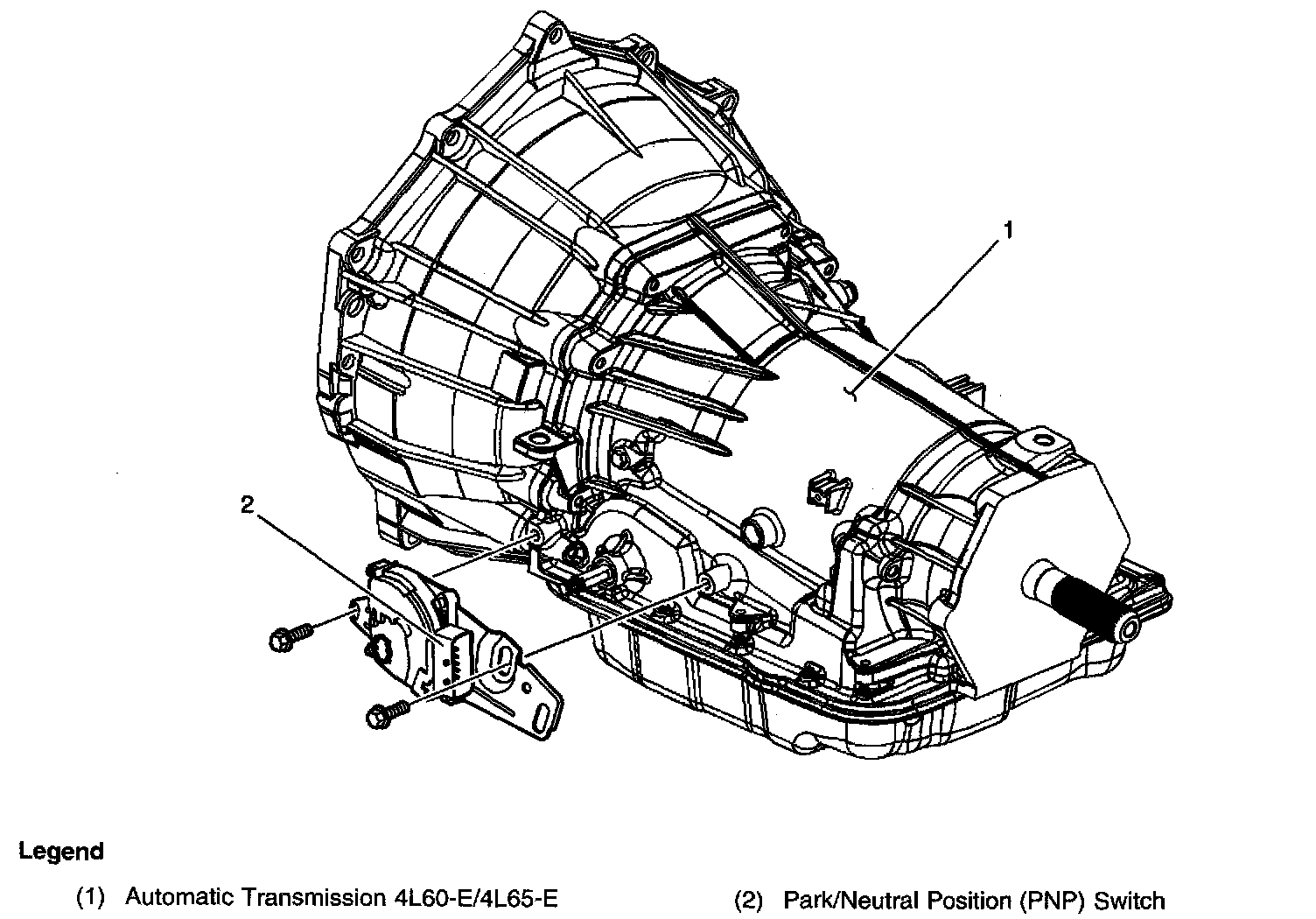

Park Neutral Position (PNP) Switch

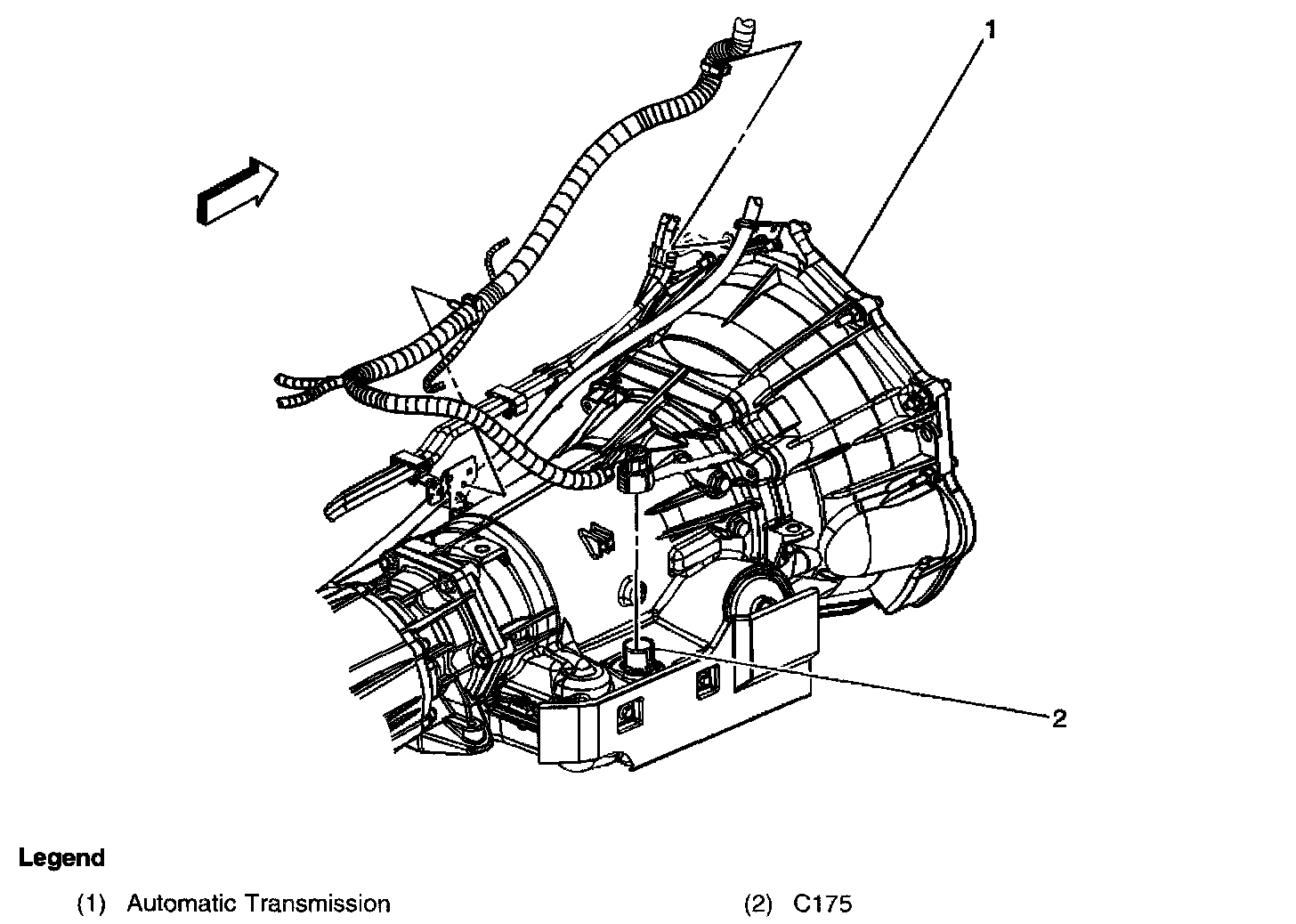

C175
