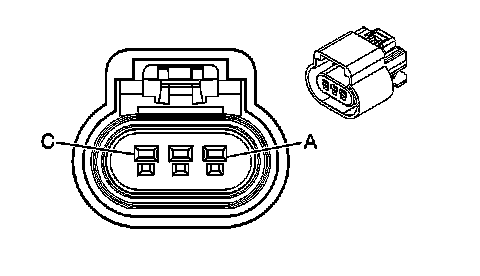

Rear Axle Connector End Views

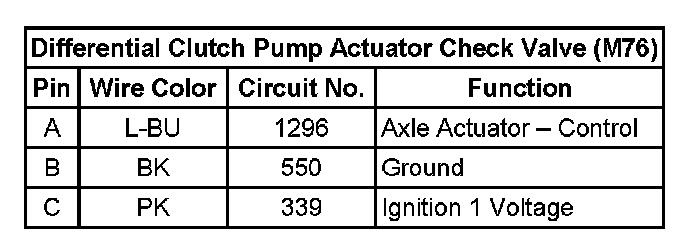

Differential Clutch Pump Actuator Check Valve (M76):

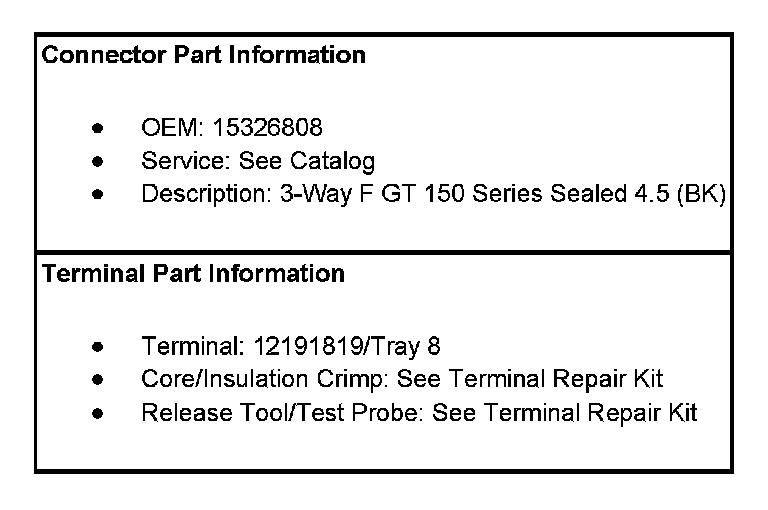

Connector Part Information
