Home
>>
Chevy Truck
>>
2007
>>
Uplander V6-3.9L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seats
>>
Power Seat Switch
>>
Swivel Inside Limit Switch (AQW)
Swivel Inside Limit Switch (AQW)

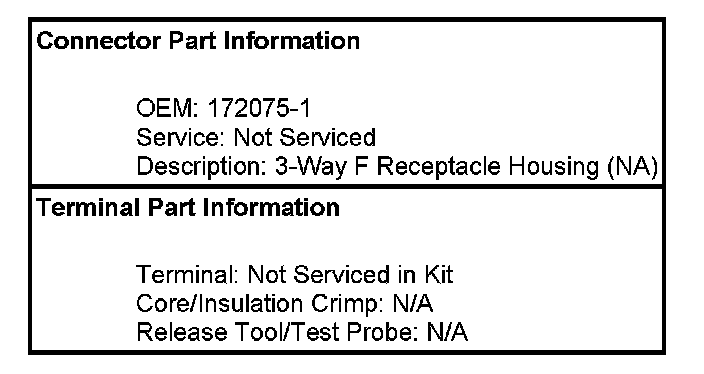

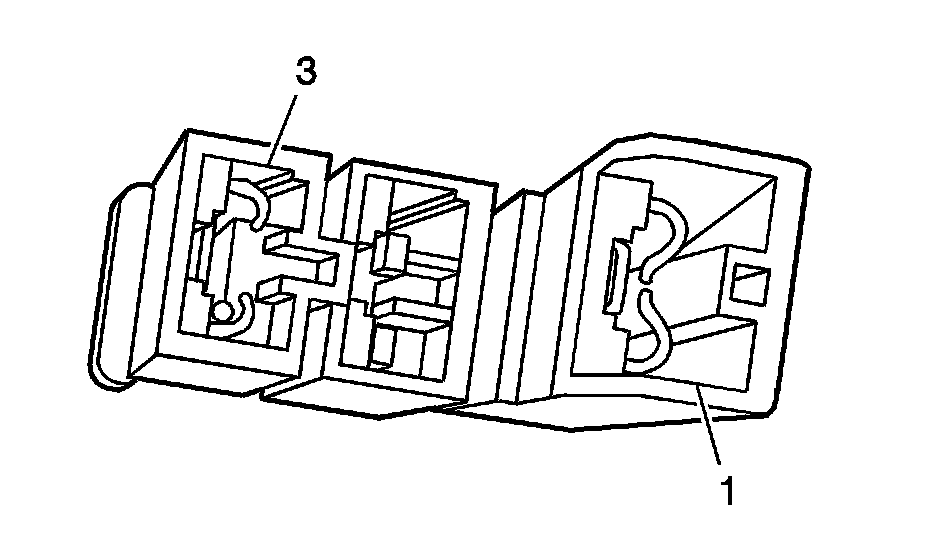

Power Seat Connector End Views

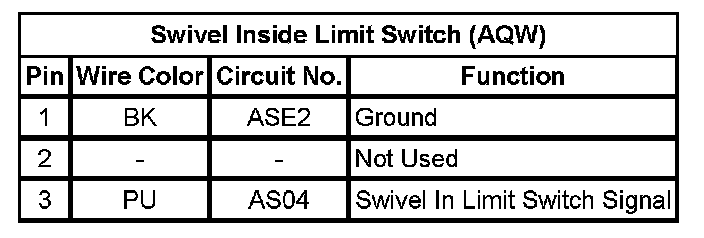

Swivel Inside Limit Switch (AQW)
