Leak Detector, Evaporative System

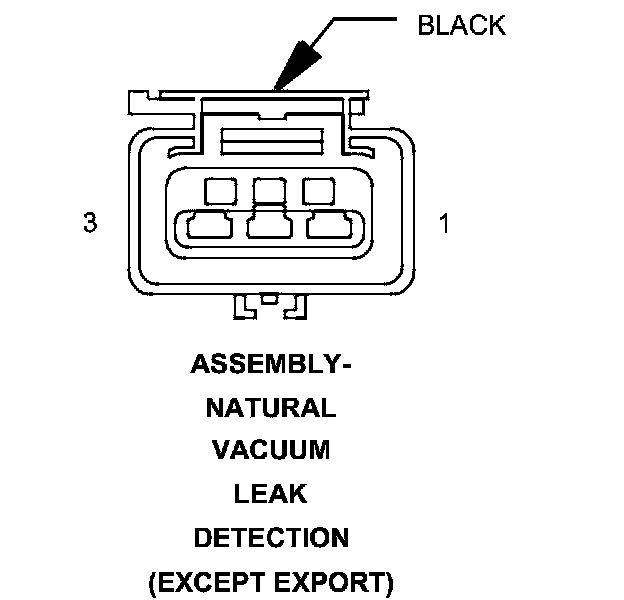

Connector (EXCEPT EXPORT) - (UNDERBODY) 3 WAY

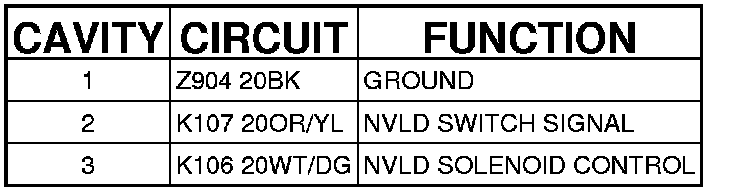

ASSEMBLY-NATURAL VACUUM LEAK DETECTION (EXCEPT EXPORT) - (UNDERBODY) 3 WAY
