Shift Solenoid, A/T

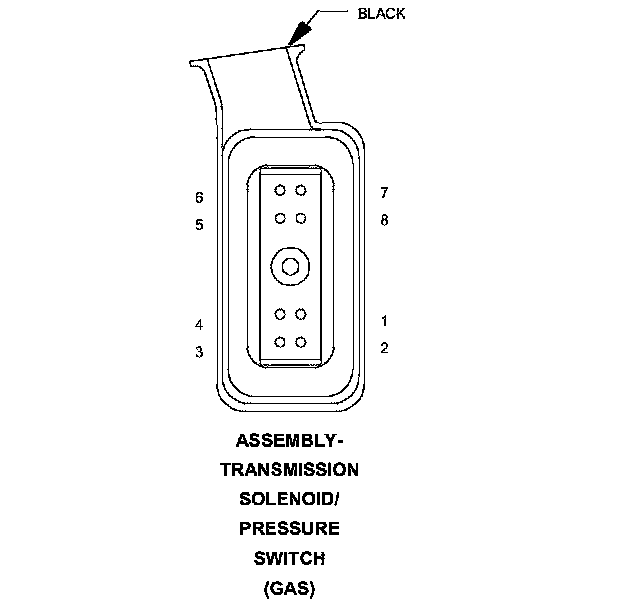

Connector (GAS) - (ENGINE) 8 WAY

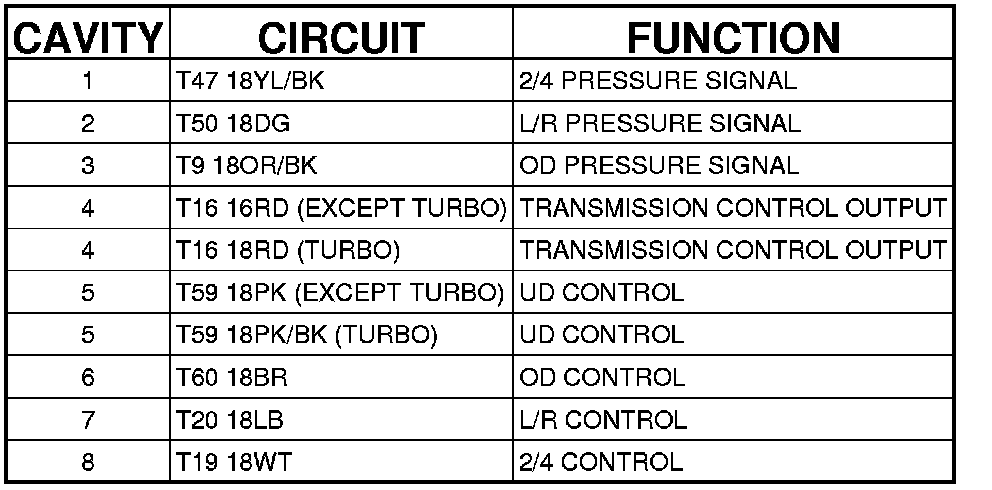

ASSEMBLY-TRANSMISSION SOLENOID/PRESSURE SWITCH (GAS) - (ENGINE) 8 WAY
