Power Window Switch
>>

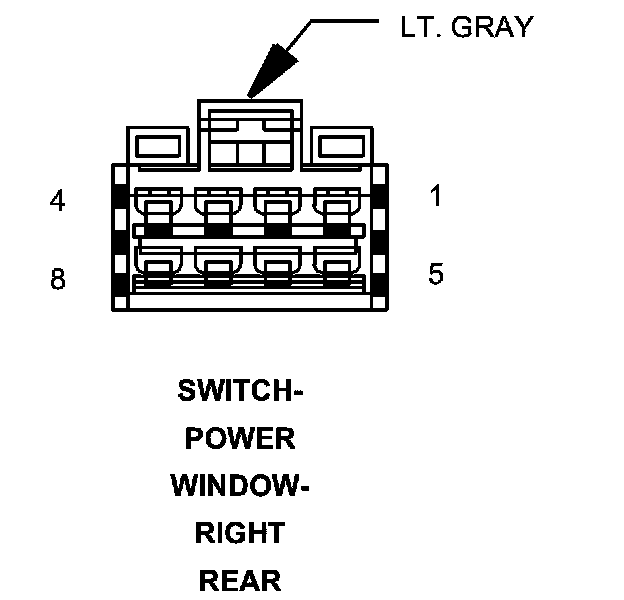

Right Rear Power Window Switch (Body) 8 Way
Right Rear Power Window Switch (Body) 8 Way

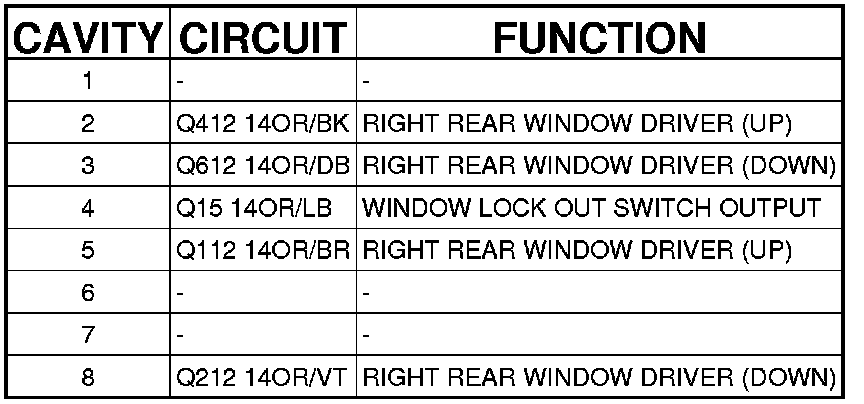

Connector - (BODY) 8 WAY
SWITCH-POWER WINDOW-RIGHT REAR - (BODY) 8 WAY
