Manual Transmission/Transaxle: Locations

FLUID DRAIN AND REFILL










NOTE: All T350 Manual Transaxles require the use of ATF+4 (Automatic Transmission Fluid).

The transaxle fill plug is located on the left side of the transaxle differential area. The fluid level should be within 3/16 inch from the bottom of the transaxle fill hole (vehicle must be level when checking).

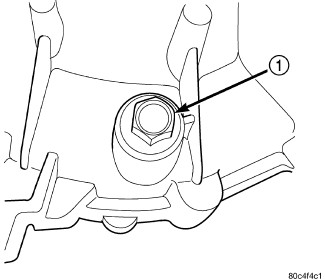

The transaxle drain plug is located on the lower right side of the transaxle differential housing. Tighten drain plug to 14 Nm (120 in. lbs.).
