Replacement

Throttle Body:

WARNING: Release fuel pressure prior to opening fuel system.

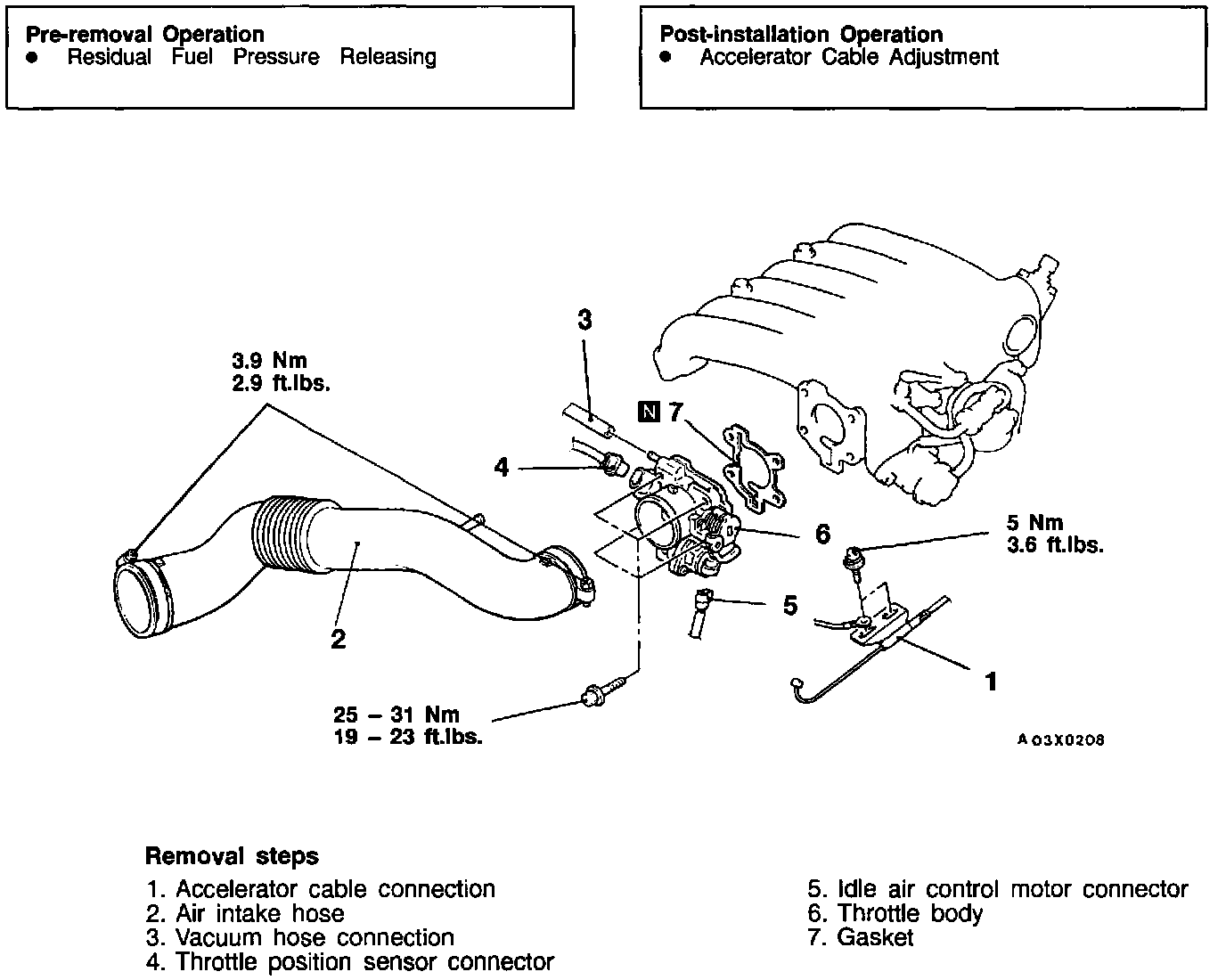

REMOVAL
1. Accelerator cable connection
2. Air intake hose
3. Vacuum hose connection
4. Throttle position sensor connector
5. Idle air control motor connector
6. Throttle body
7. Gasket

REMOVAL
1. Gasket
2. Throttle body
3. Idle air control motor connector
4. Throttle position sensor connector
5. Vacuum hose connection
6. Air intake hose
7. Accelerator cable connection
8. Adjust accelerator cable
