Secondary Coil Resistance

Ignition Coil:

Measurement of the secondary coil resistance.

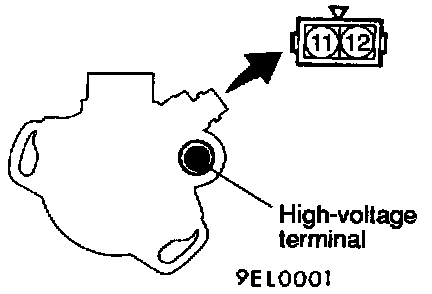

Measure the resistance between the high-voltage terminal and connector terminal 11.
Standard value: 12 - 18 K-Ohms
