Computers and Control Systems: Locations

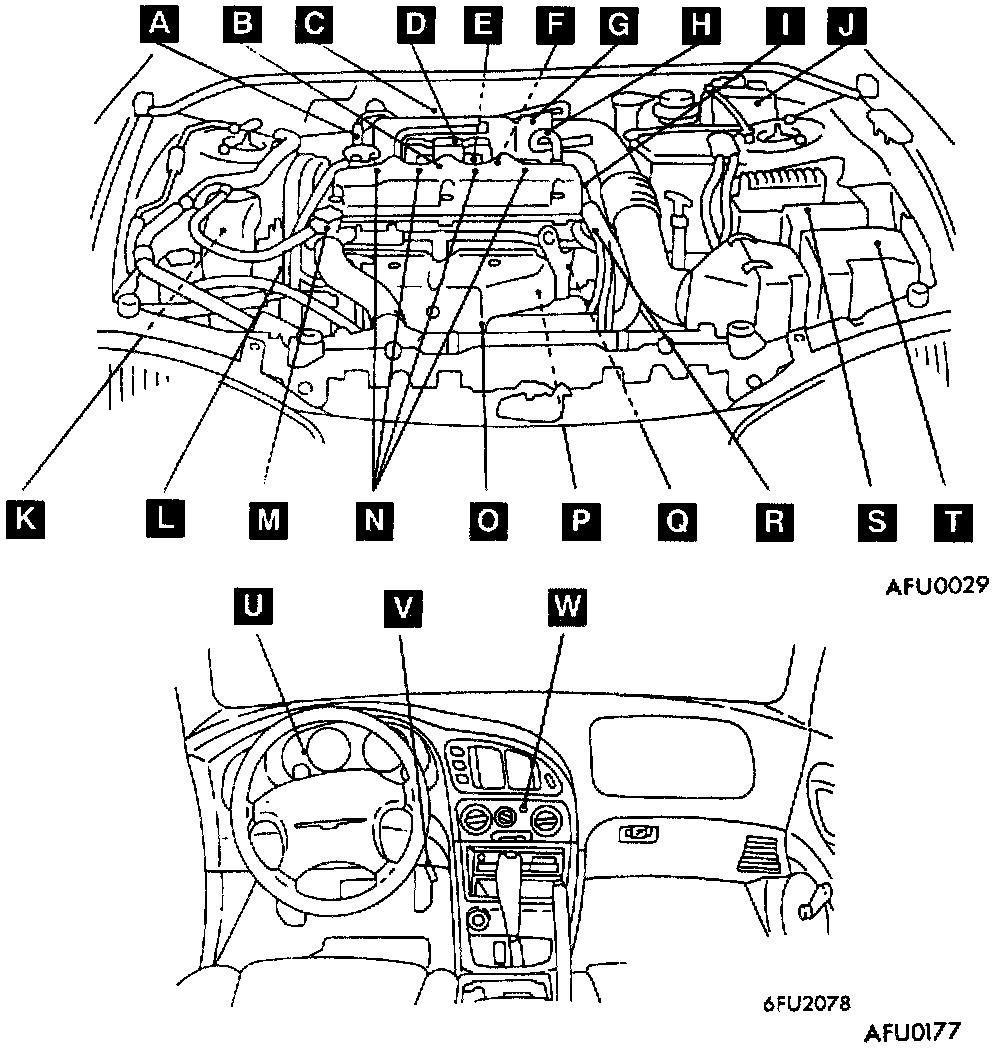

Overview:

Name View
A/C Compressor Clutch Relay T
A/C Switch W
Camshaft Position Sensor I
Check Engine/Malfunction Indicator U
Crankshaft Position Sensor B
Data Link Connector V
Electric EGR Transducer Solenoid R
Engine Coolant Temperature Sensor M
Evaporative Emission Purge Solenoid K
Evaporative Emission Vent Solenoid X
Fuel Pump Relay J
Heated Oxygen Sensor (Front) O
Heated Oxygen Sensor (Rear) E
Idle Air Control Motor G
Ignition Coil D
Injector N
Intake Air Temperature Sensor C
Knock Sensor F
MFI (ASD) Relay J
MAP Sensor A
Transaxle Range Sensor Q
Power Steering Pressure Sensor L
Powertrain Control Module S
Throttle Postion Sensor H
Vehicle Speed Sensor P

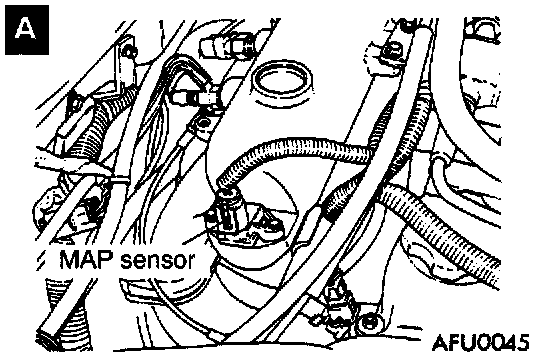

View A:

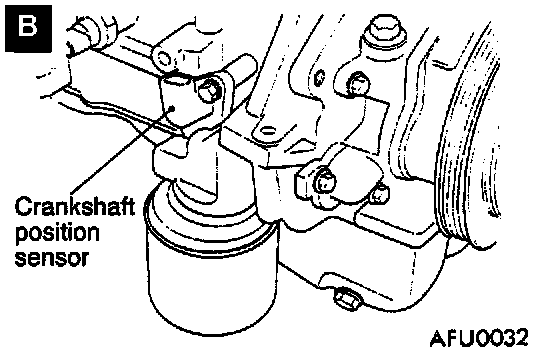

View B:

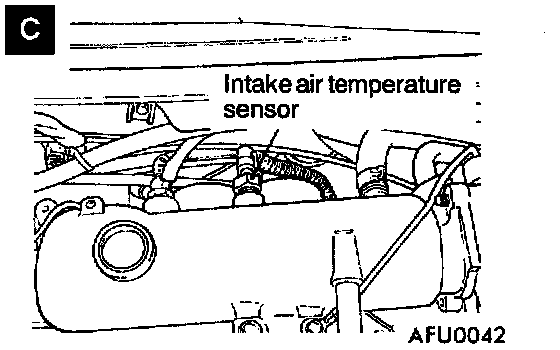

View C:

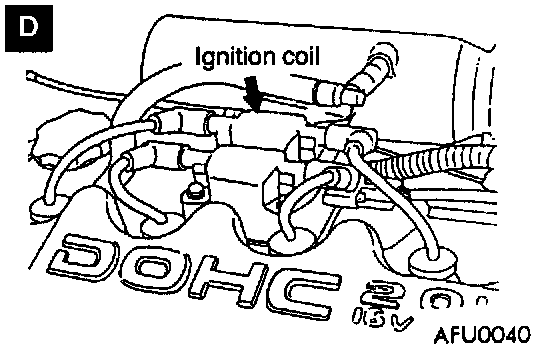

View D:

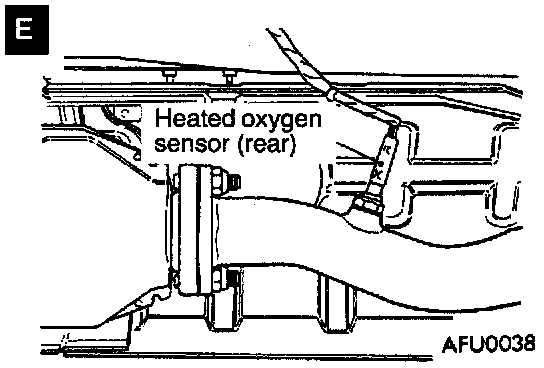

View E:

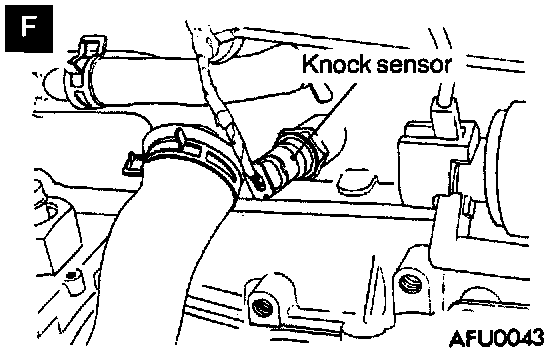

View F:

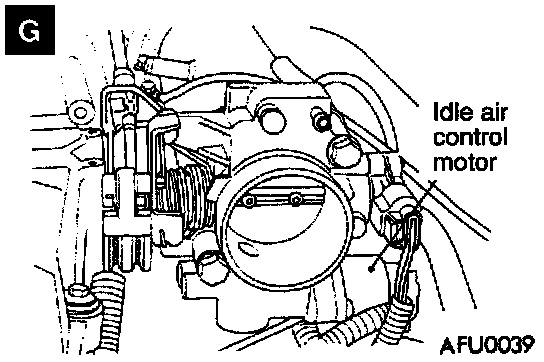

View G:

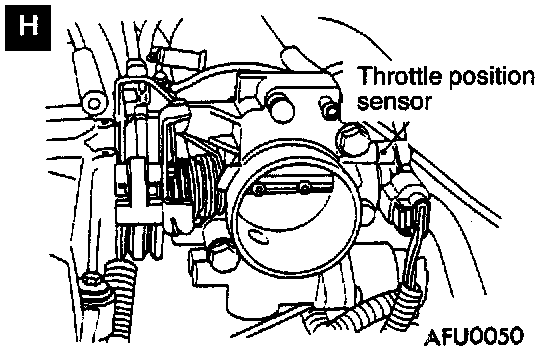

View H:

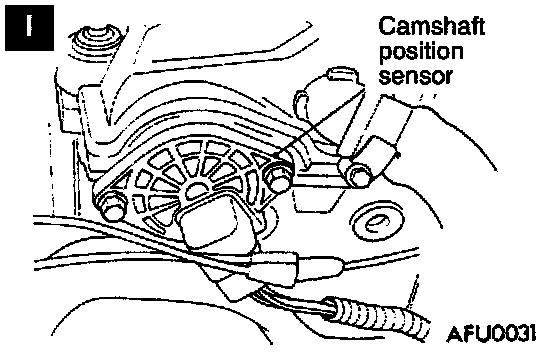

View I:

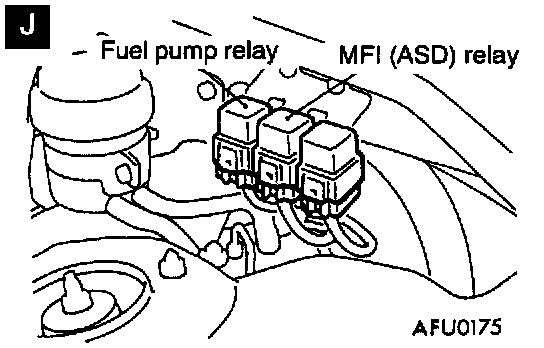

View J:

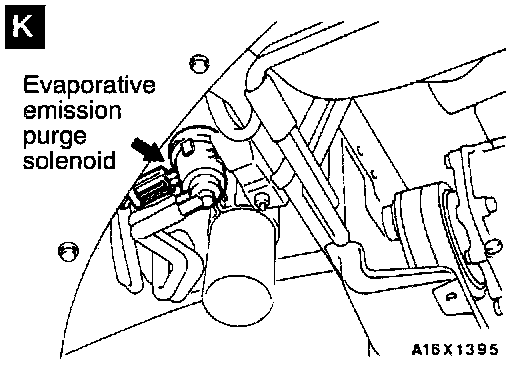

View K:

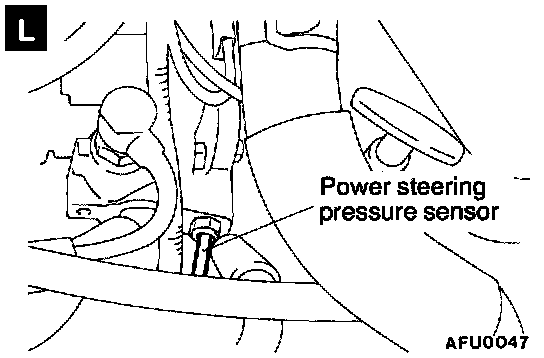

View L:

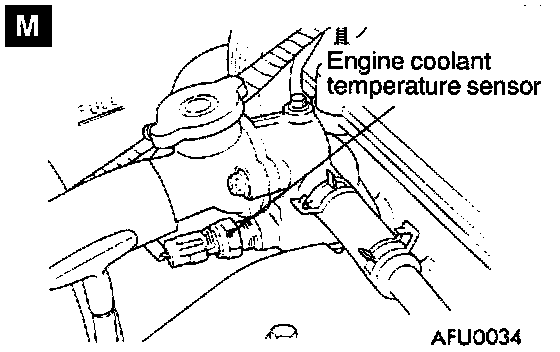

View M:

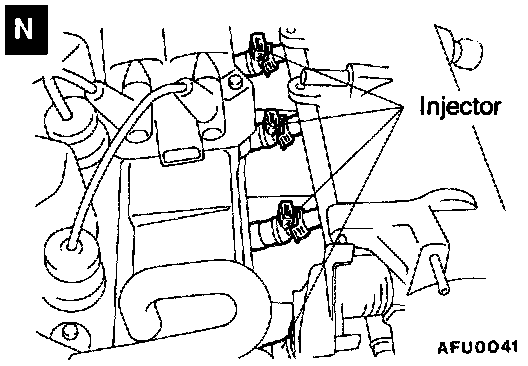

View N:

View O:

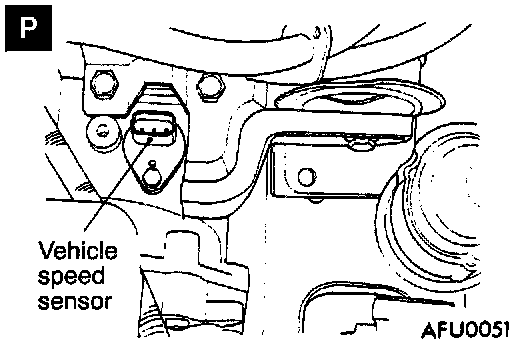

View P:

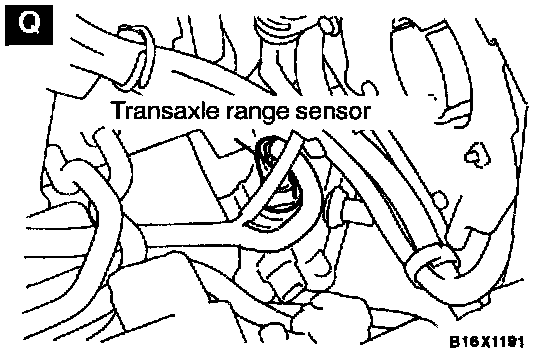

View Q:

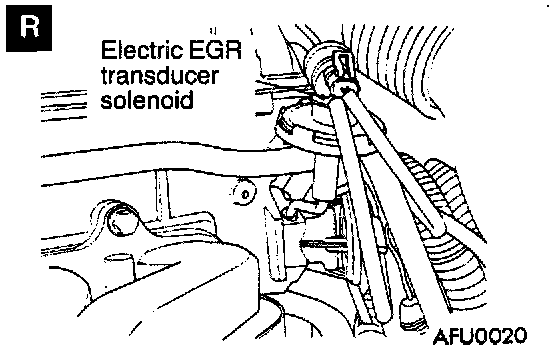

View R:

View S:

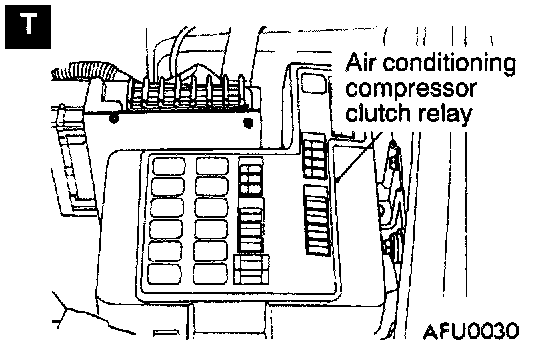

View T:

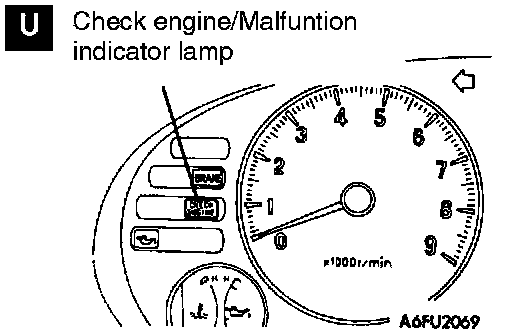

View U:

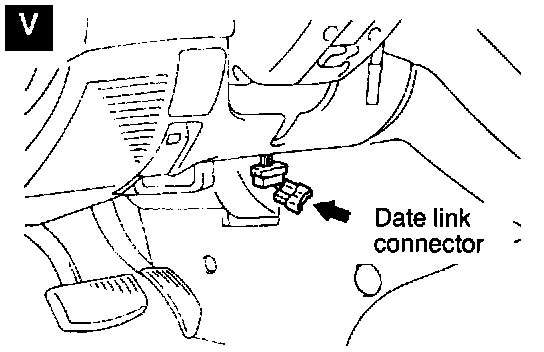

View V:

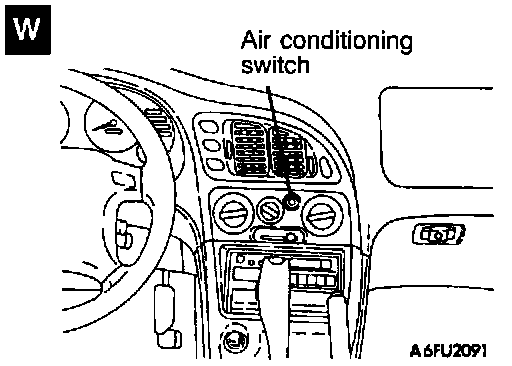

View W:

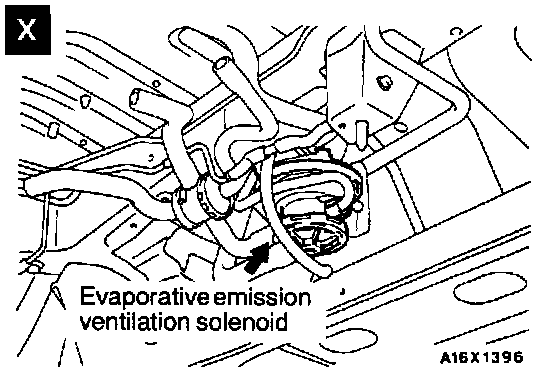

View X:
