Transmission Oil Cooler Module

REMOVAL





1. Raise vehicle on hoist.
2. Disconnect cooling fan motor electrical connector.
3. Position an oil drain pan under oil cooler.
4. Remove transmission oil cooler line support clip.
5. Remove transmission oil cooler lines from cooler.

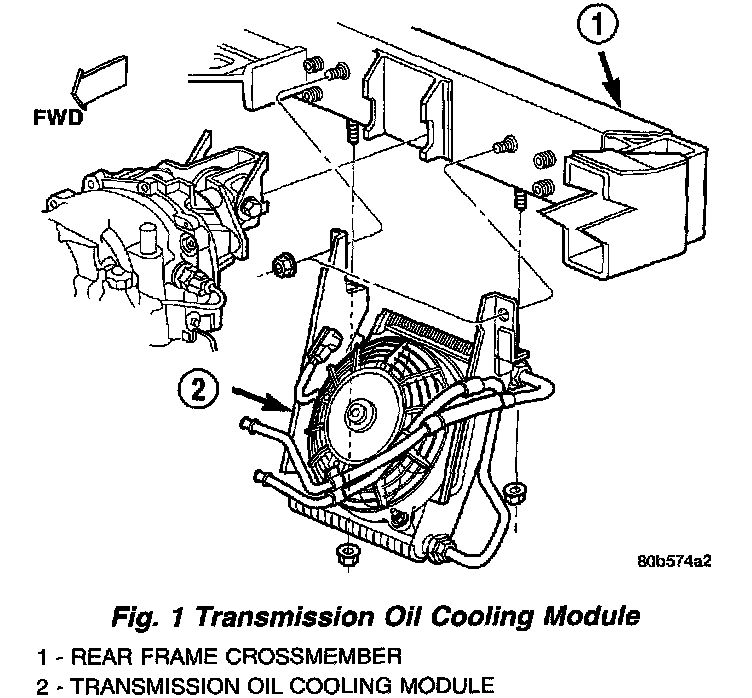

6. Remove cooling module attaching fasteners to frame and remove module (Fig. 1).

INSTALLATION
1. Install cooling module to frame and tighten fasteners to 22.5 Nm (200 in. lbs.) (Fig. 1).
2. Attach transmission cooler lines to cooler and tighten fittings to 25 Nm (220 in. lbs.).
3. Install transmission oil cooler line support clip.
4. Connect cooling fan motor electrical connector.
5. Lower vehicle.
6. Check and adjust transmission fluid as necessary.
