Air Bag: Diagrams

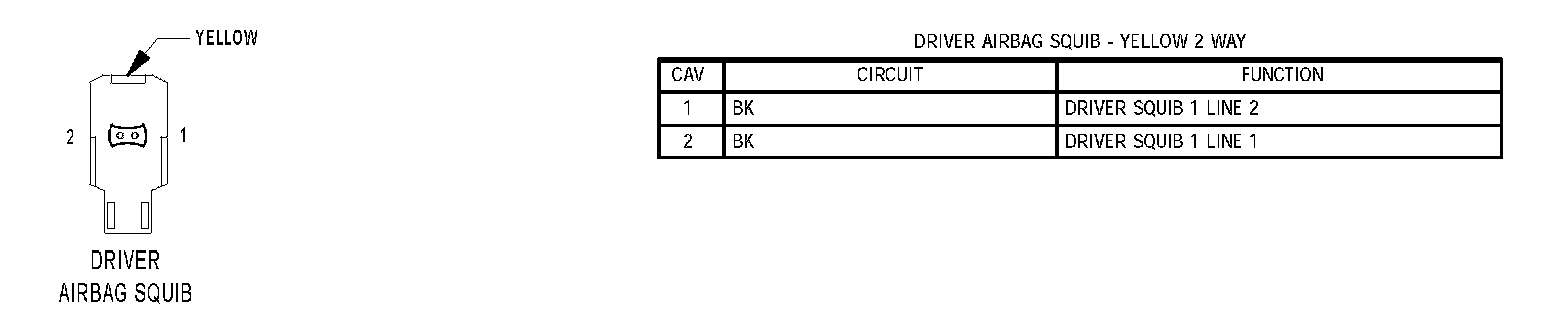

Driver Airbag Squib:

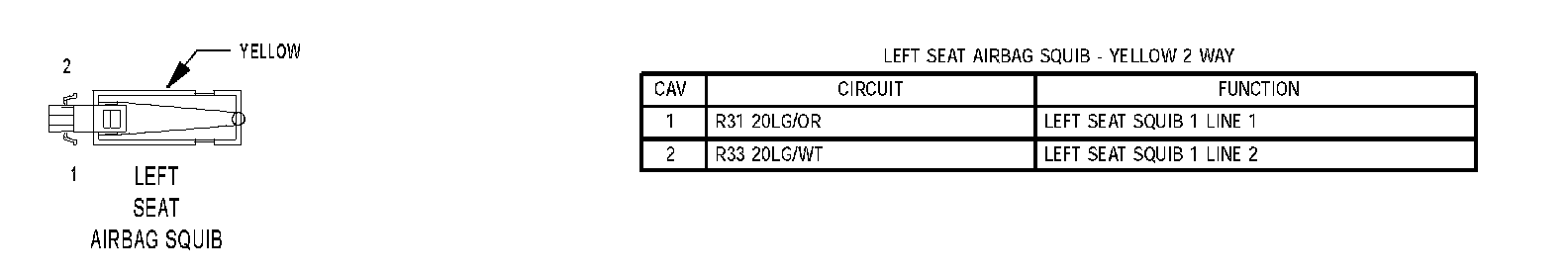

Left Seat Airbag Squib:



Passenger Airbag Squib:



Right Seat Airbag Squib:
