Garage Door Opener Transmitter: Service and Repair

REMOVAL
1. Disconnect the negative battery cable.

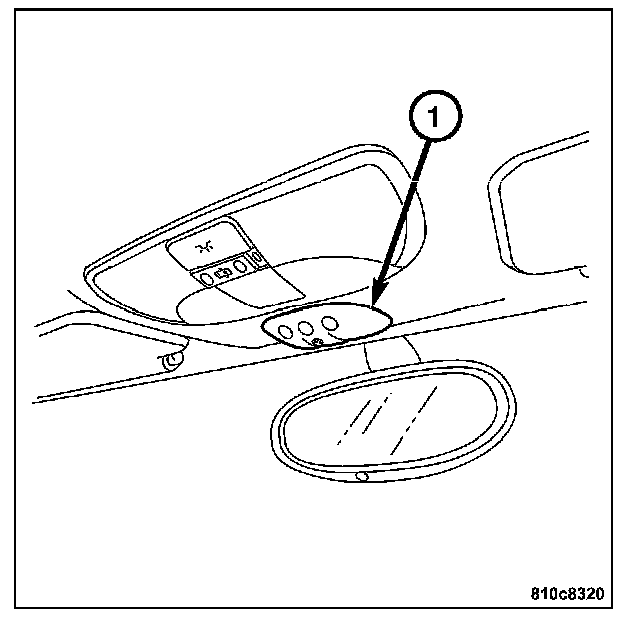

2. Using a plastic wedge, slide the wedge under the Universal Garage Door Opener/Tire Pressure Monitor module and the headliner and pry the Universal Garage Door Opener/Tire Pressure Monitor module away from the headliner.
3. Disconnect the Universal Garage Door Opener/Tire Pressure Monitor module harness connector.

INSTALLATION
1. Connect the harness connector to the Universal Garage Door Opener/Tire Pressure Monitor module.

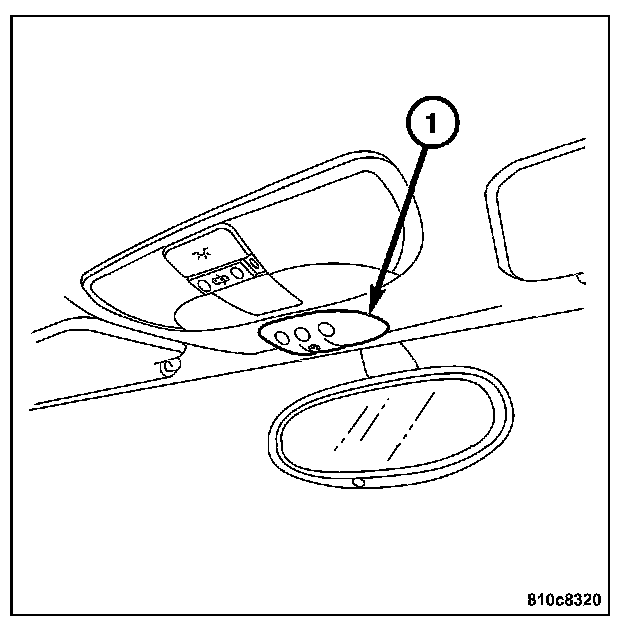

2. Install the Universal Garage Door Opener/Tire Pressure Monitor module by snapping it into the headliner.
3. Connect the negative battery cable.
