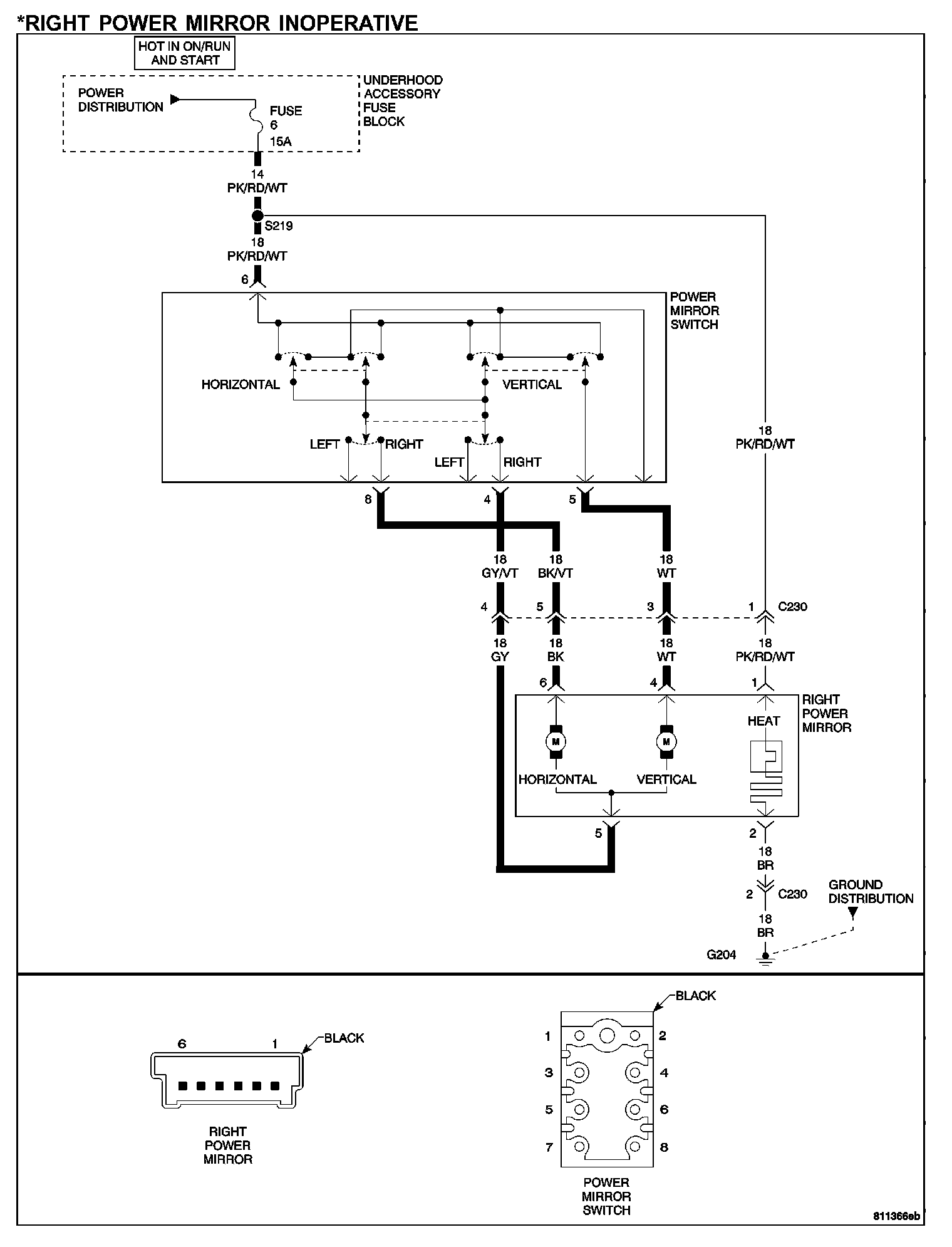

Right Power Mirror Inoperative

Right Power Mirror Inoperative:

POSSIBLE CAUSES
- Right power mirror
- Right power mirror circuit
- Power mirror switch

Diagnostic Test




1. MEASURE RIGHT POWER MIRROR CIRCUIT RESISTANCE

Turn the ignition off.
Disconnect the Power Mirror Switch harness connector.
Disconnect the Right Power Mirror harness connector.

NOTE: Check connectors - Clean/repair as necessary.

Connect a jumper wire between cavity 5 and cavity 6 of the Right Power Mirror harness connector.
Measure the resistance between cavity 4 and cavity 8 of the Power Mirror Switch harness connector.

Q: Is the resistance below 5.0 ohms?

YES: Go to 2
NO: Repair the Right Power Mirror circuit for an open. Perform BODY VERIFICATION TEST. Body Verification Test




2. TEST THE RIGHT POWER MIRROR

Remove the jumper wire from the Right Power Mirror harness connector.
Reconnect the Right Power Mirror harness connector.

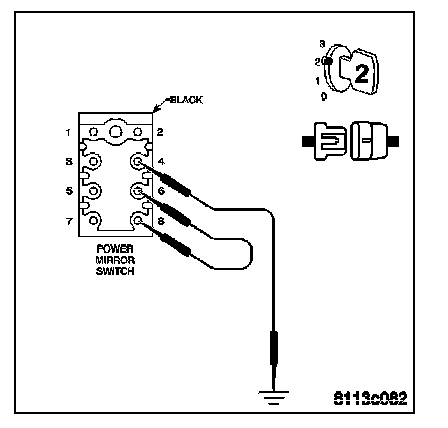

Connect a jumper wire between cavity 4 and ground of the Power Mirror Switch harness connector.
Turn the ignition on.
Connect a jumper wire between cavity 6 and cavity 8 of the Power Mirror Switch harness connector.

Q: With the jumper wires connected, does the Right Power Mirror move?

YES: Replace the Power Mirror Switch. Perform BODY VERIFICATION TEST. Body Verification Test
NO: Replace the Right Power Mirror. Perform BODY VERIFICATION TEST. Body Verification Test
