Chrysler
>>
2004
>>
Pacifica V6-3.5L VIN 4
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Tail Lamp
>>
Diagrams
>>
Connector Views
Connector Views

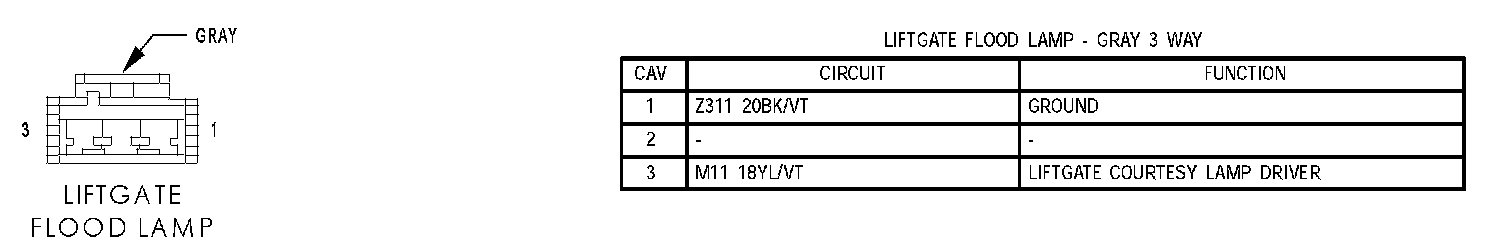

Liftgate Flood Lamp:

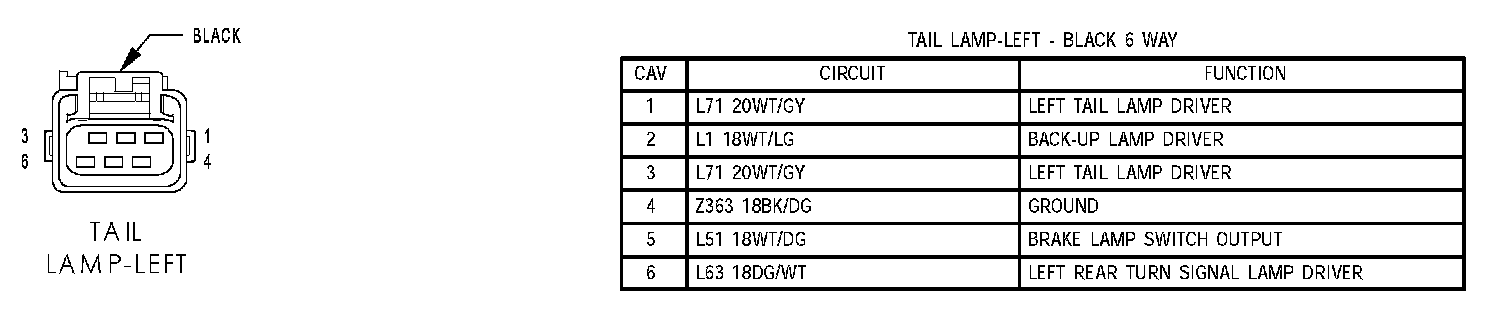

Tail Lamp - Left:

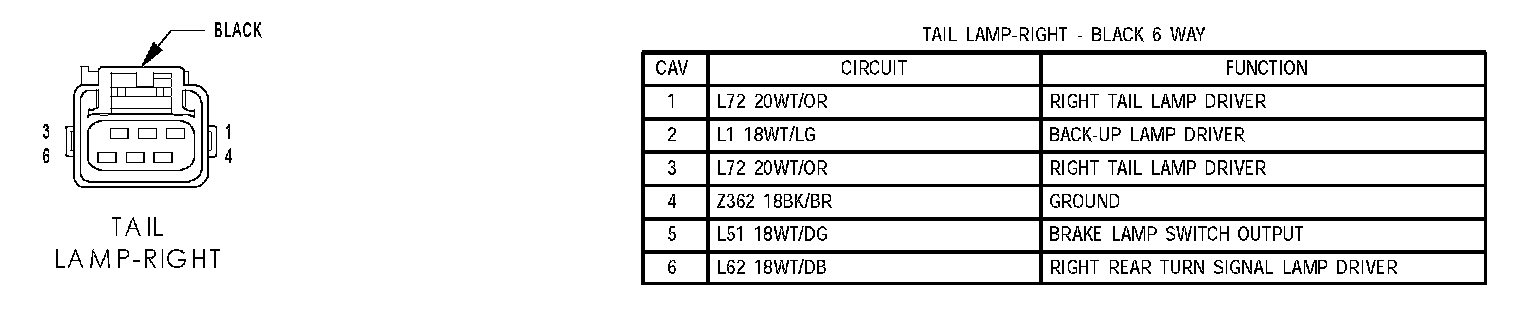

Tail Lamp - Right:
