Throttle Body: Service and Repair

REMOVAL
1. Disconnect negative cable from battery
2. Remove the engine cover.
3. Remove the air cleaner box.
4. Hold throttle lever in wide open position. Remove throttle cable and speed control cables from throttle arm.

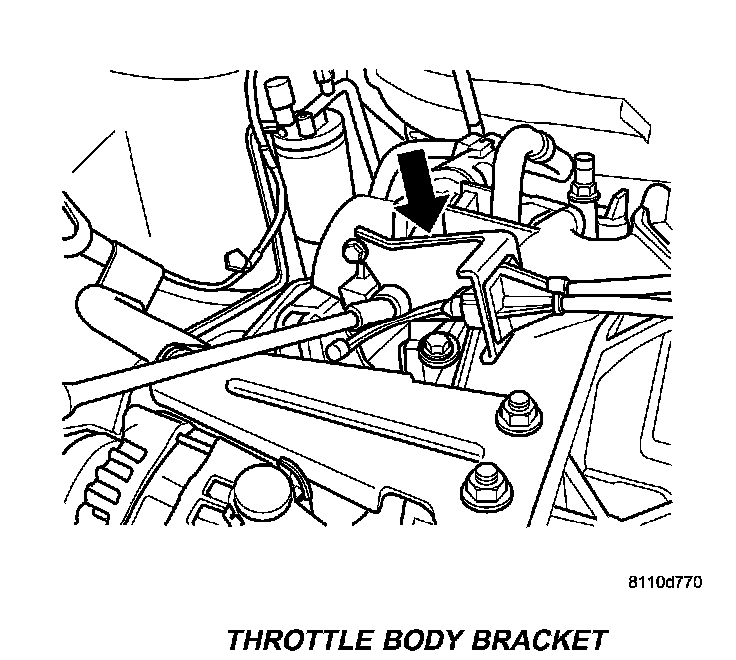

Throttle Body Bracket:

5. Remove throttle cable bracket.

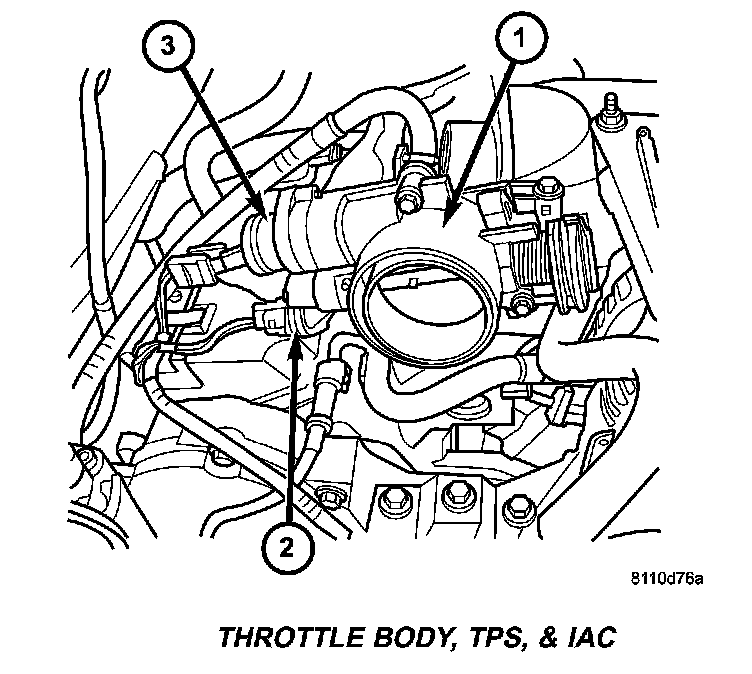

Throttle Body, TPS & IAC:

6. Disconnect electrical connectors from throttle body.
7. Remove 3 throttle body bolts.

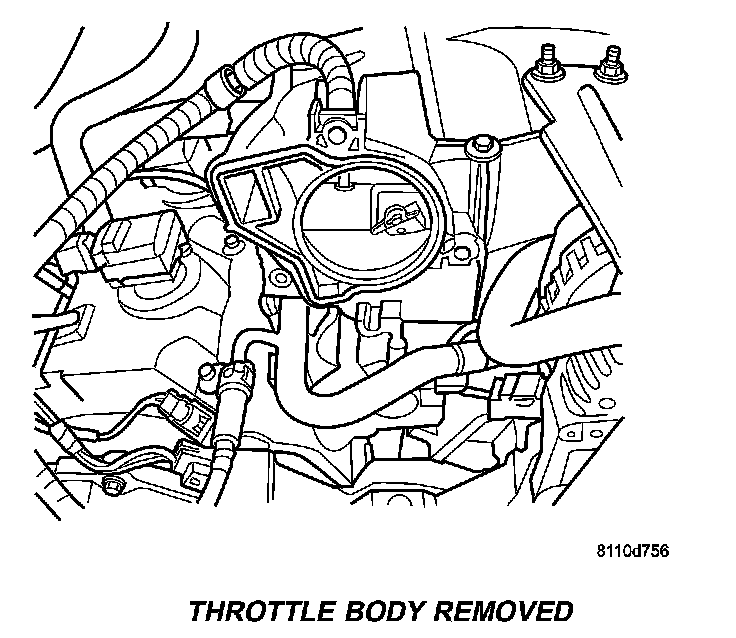

Throttle Body Removed:

8. Remove throttle body.
9. Clean mating surfaces.

INSTALLATION
1. Install throttle body.
2. Install 3 throttle body bolts and tighten.
3. Connect electrical connectors to throttle body.
4. Install throttle cable bracket.
5. Hold throttle lever in wide open position. Install throttle cable and speed control cables to throttle arm.
6. Install the air cleaner box.
7. Install the engine cover.
8. Connect negative cable from battery
