Seals and Gaskets: Service and Repair

SEAL OIL PUMP

REMOVAL
1. Remove transaxle from vehicle

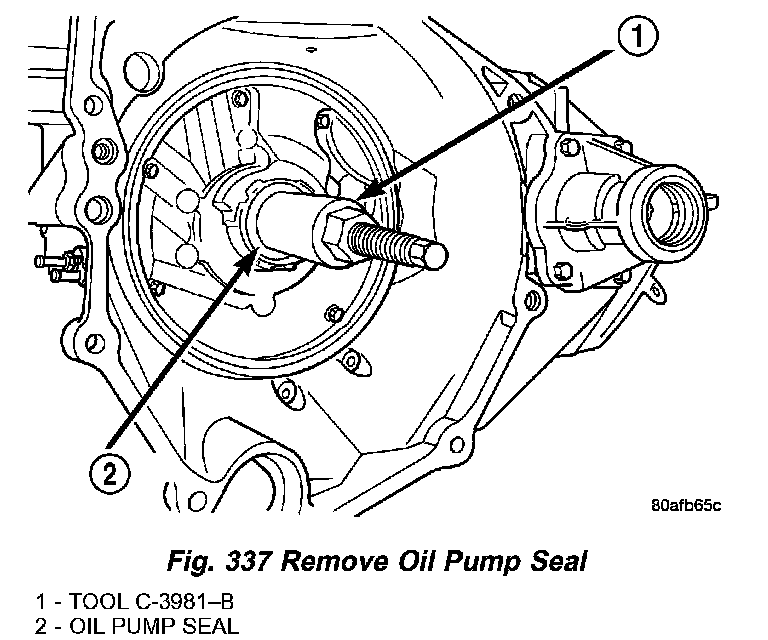

2. Using Tool C-398 1 -B. remove oil pump seal (Fig. 337).

INSTALLATION

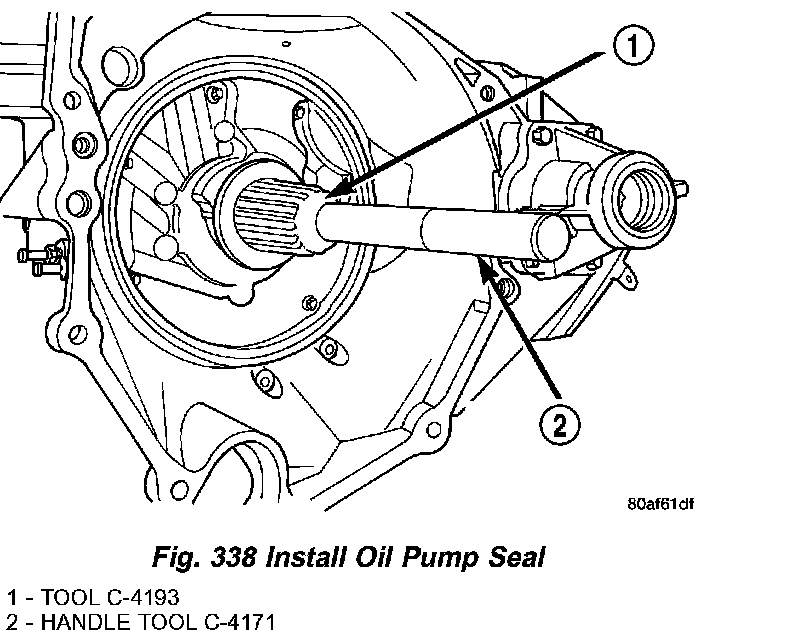

1. Using Tool C-4193, install oil pump seal (Fig. 338).
2. Install transaxle to vehicle
