Valve Body

VALVE BODY

REMOVAL

NOTE: If valve body is replaced or reconditioned, the PCM Quick Learn Procedure must be performed.

NOTE: The Engine Cradle Crossmember assembly must be partially lowered to gain access to and remove the Valve Body assembly.

1. Disconnect battery negative cable.

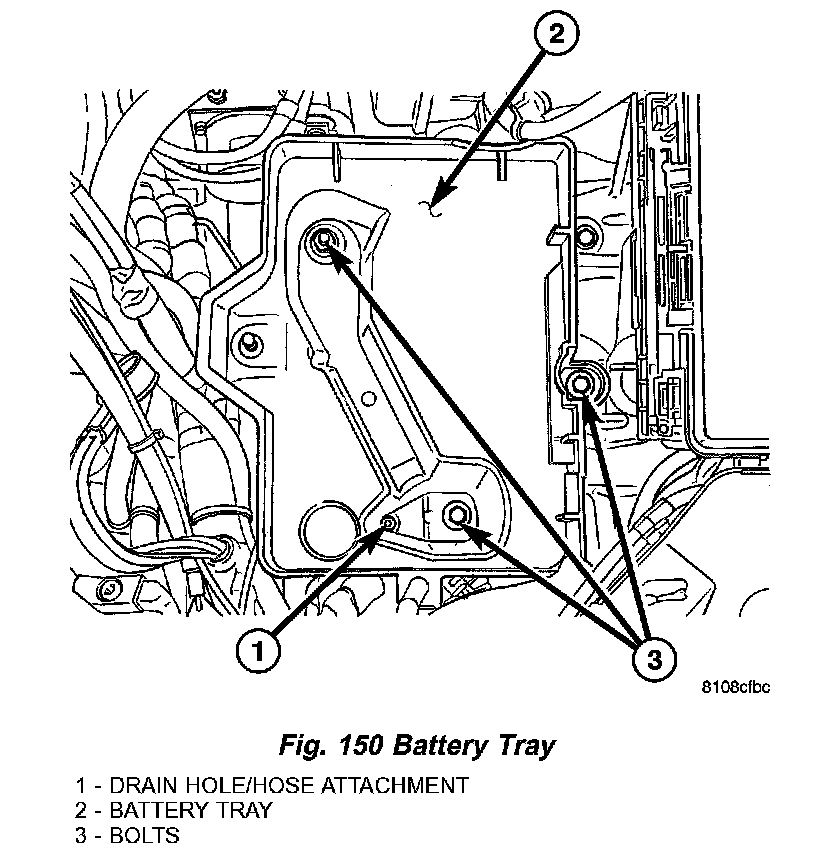

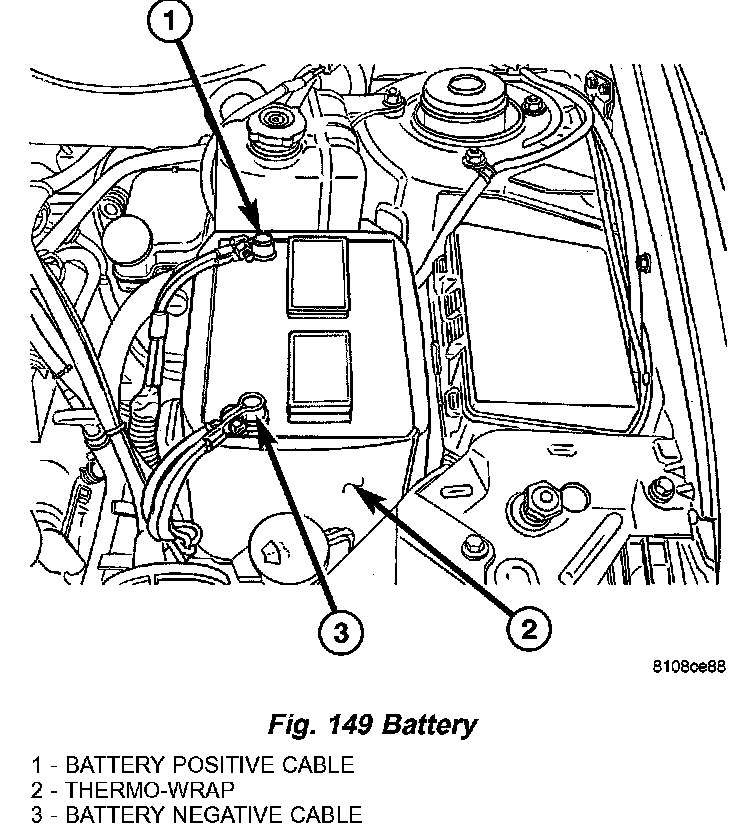

2. Remove battery and tray (Fig. 149) (Fig. 150).

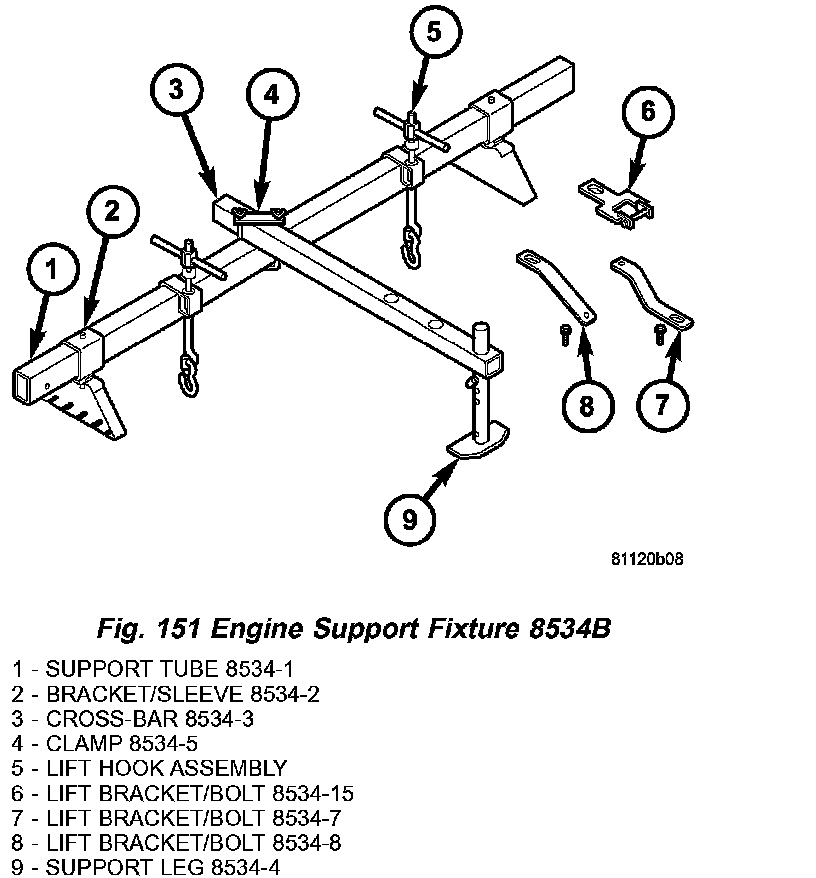

3. Install overhead powertrain support fixture (Tool 8534B and adapter kit 8534-12) (Fig. 151):

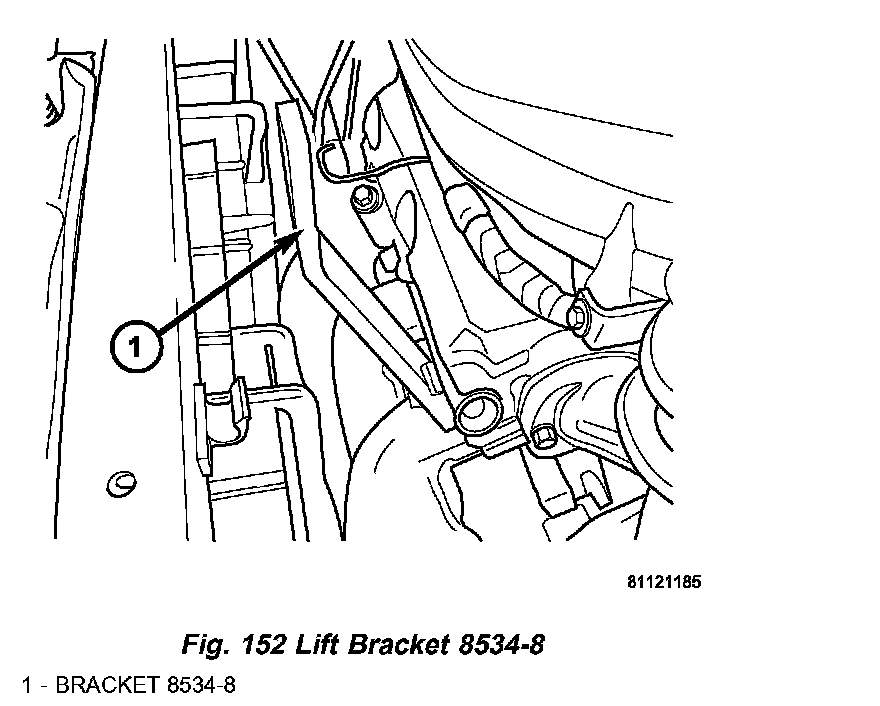

a. Remove engine oil dipstick tube-to-cylinder head fastener (Fig. 152). Install lift/support bracket 8534-8 and secure with dipstick tube bolt.

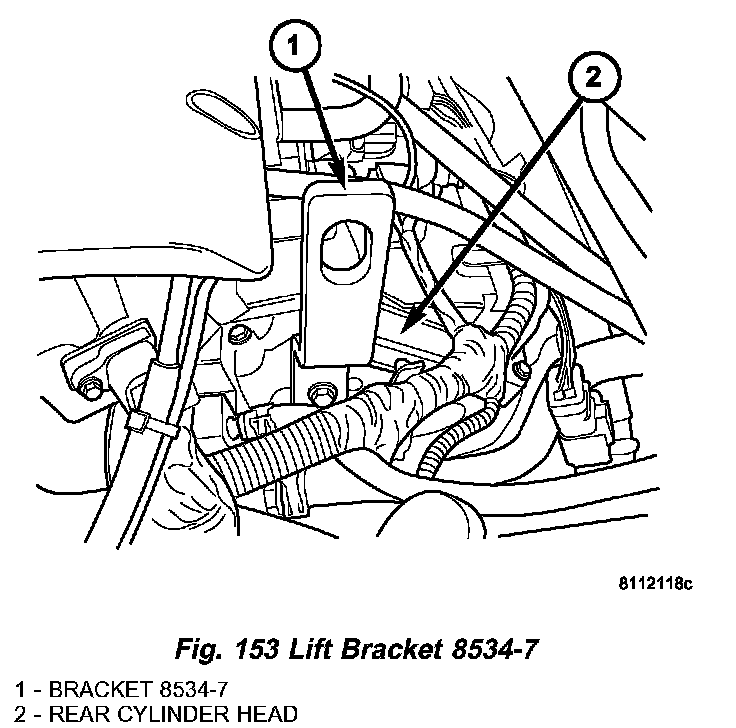

b. Disconnect coolant temperature sensor (at thermostat housing). Remove engine harness-to-cylinder head bolt. Position harness out of the way. Install and secure lift/support bracket and bolt 8534-7 as shown in (Fig. 153).

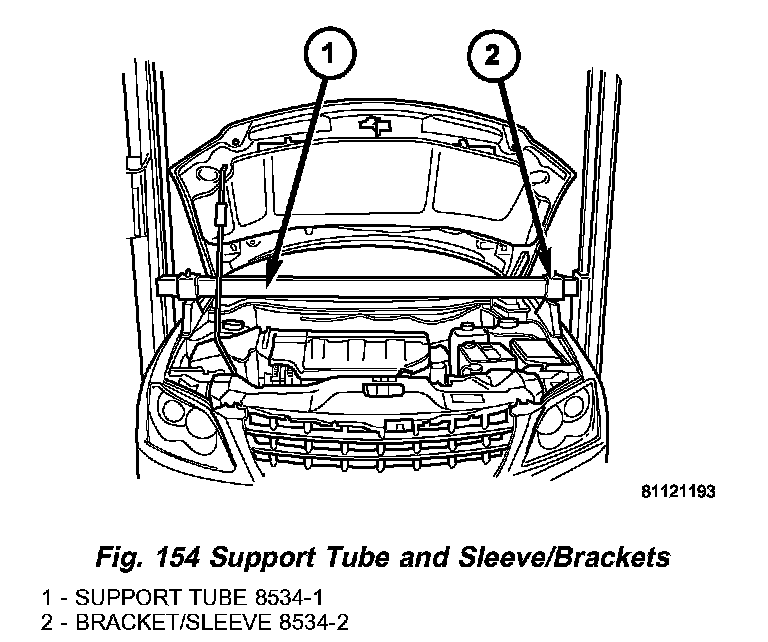

c. Assemble 8534-2 mounting bracket/sleeve assemblies to support tube 8534-1 and install to vehicle, allowing brackets to rest on inner fender ledges (Fig. 154).

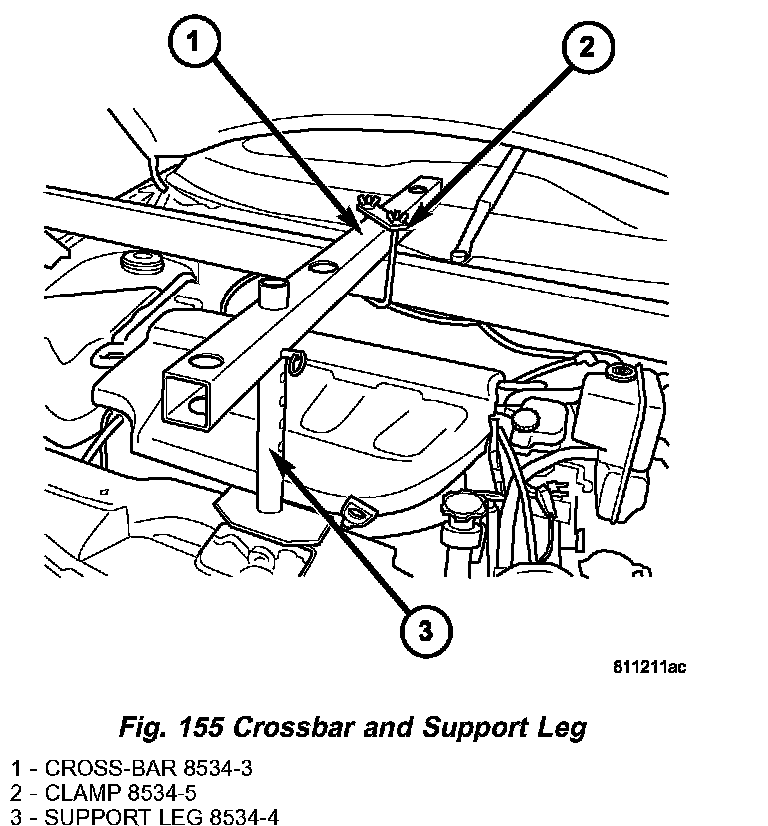

d. Assemble cross-bar 8534-3, clamp 8534-5 and support leg 8534-4 to support tube, allowing support leg to rest on radiator upper support (Fig. 155).

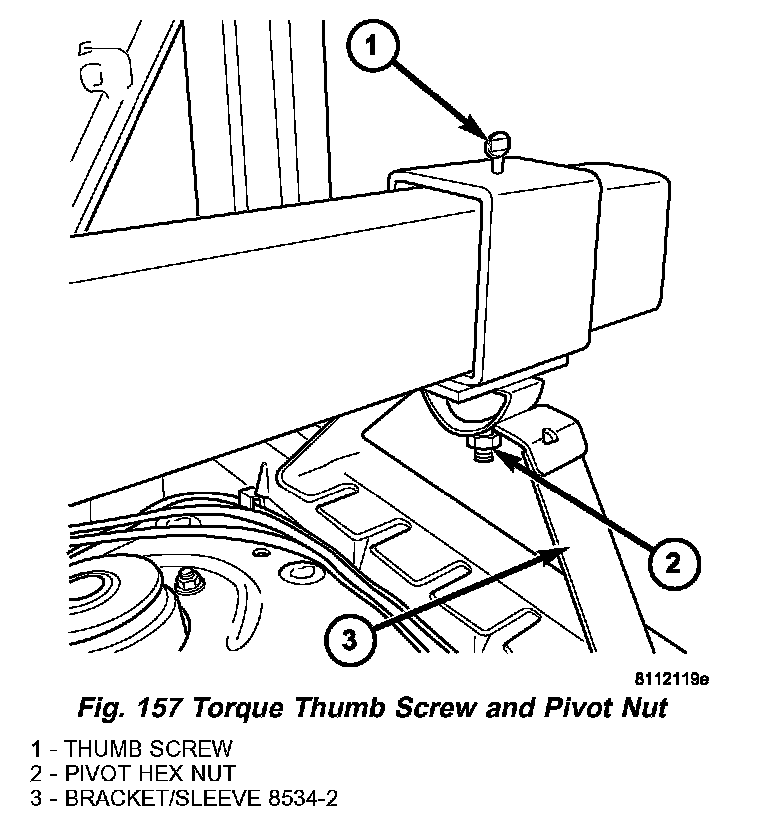

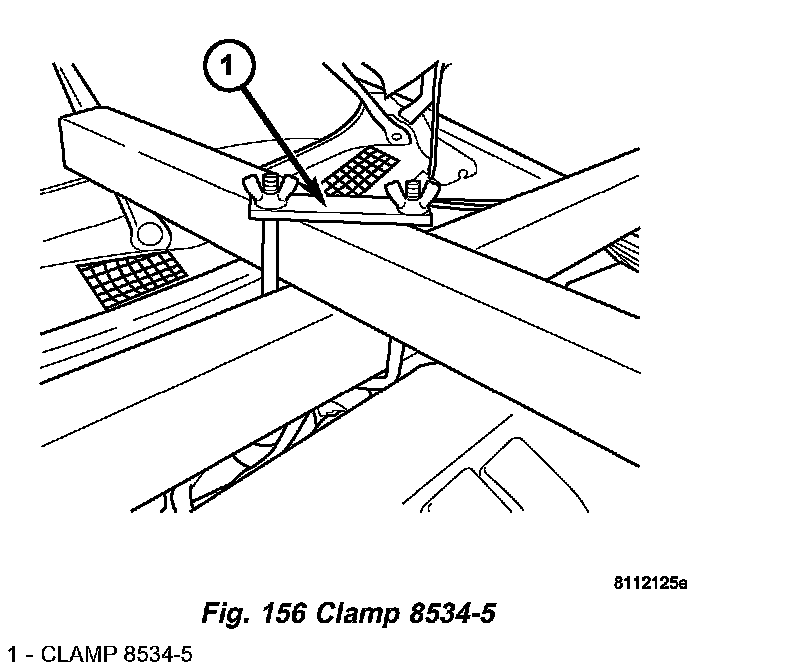

e. Tighten cross-bar-to-support tube clamp 8534-5 (Fig. 156), as well as mounting bracket/sleeve 8534-2 thumb screw and hex nut to secure fixture (Fig. 157).

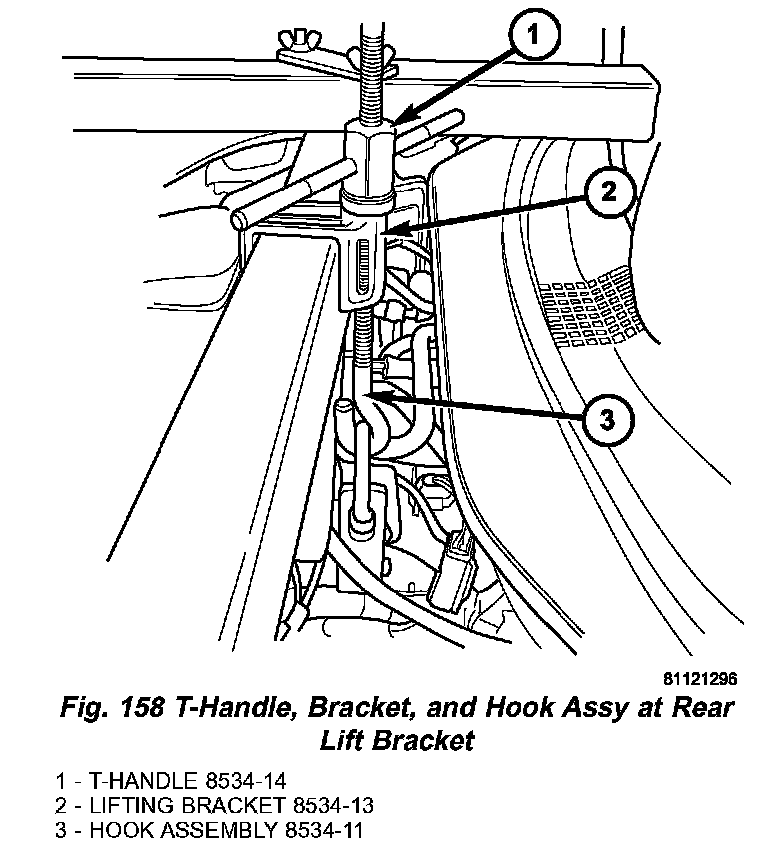

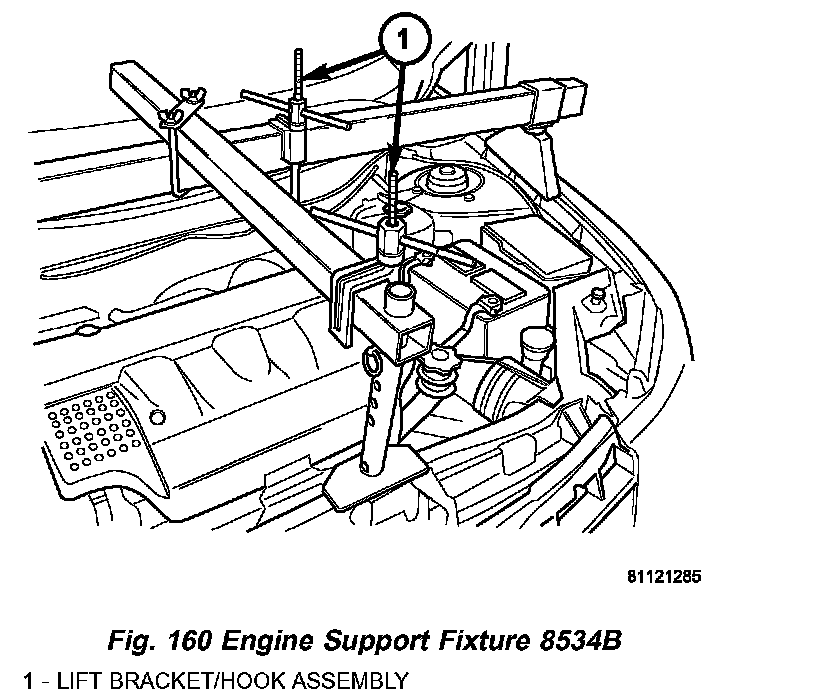

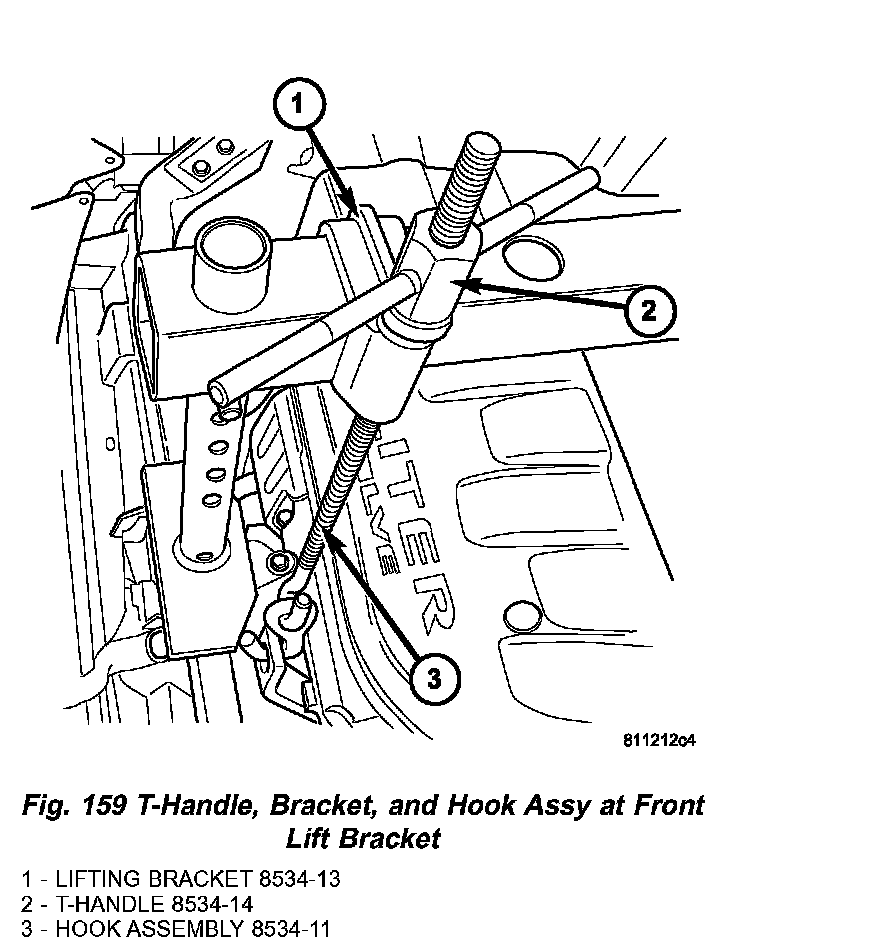

f. Install lift bracket/hook assemblies as shown in (Fig. 158) (Fig. 159) (Fig. 160). Tighten t-handles just enough to build tension between the fixture and drivetrain.
4. Disconnect gearshift cable from manual valve lever.
5. Remove manual valve lever from manual shaft.
6. Raise vehicle on hoist.
7. Remove engine mount (front and rear) to engine cradle crossmember nuts.
8. Place scribe marks at engine cradle crossmember and body for alignment upon reassembly.
9. Support cradle at rear with screw jack or equivalent. Partially remove engine cradle crossmember-to-body bolts, lowering cradle at rear enough to facilitate cradle pivoting.
10. Support cradle at front with screw jack or equivalent. Remove engine cradle crossmember-to-body bolts. Lower cradle at front approximately 10 inches to facilitate valve body removal.

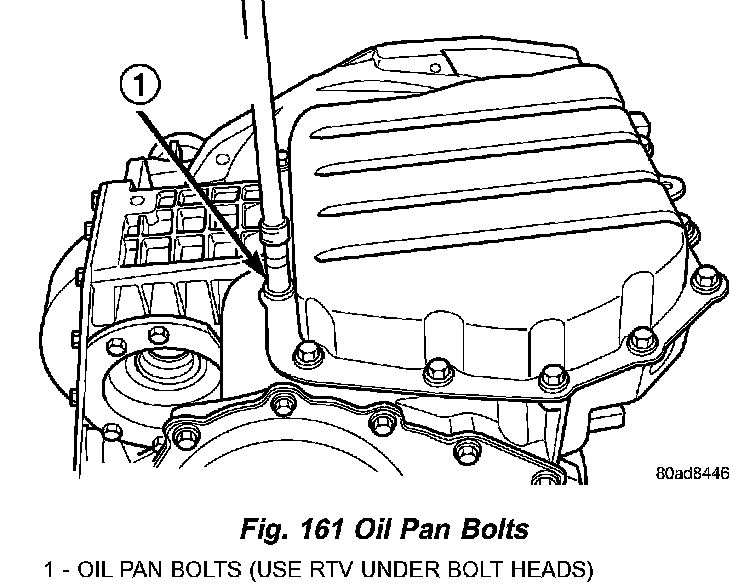

11. Remove oil pan bolts (Fig. 161).

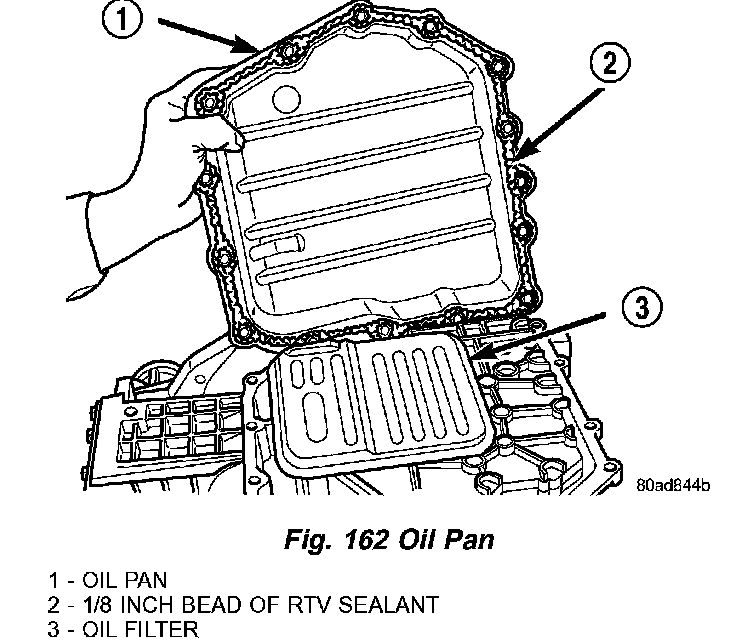

12. Remove oil pan (Fig. 162).





13. Remove oil filter (Fig. 163).





14. Remove the valve body-to-transaxle case bolts (Fig. 164).

NOTE: To ease removal of the valve body, turn the manual valve lever fully clockwise to low or first gear.

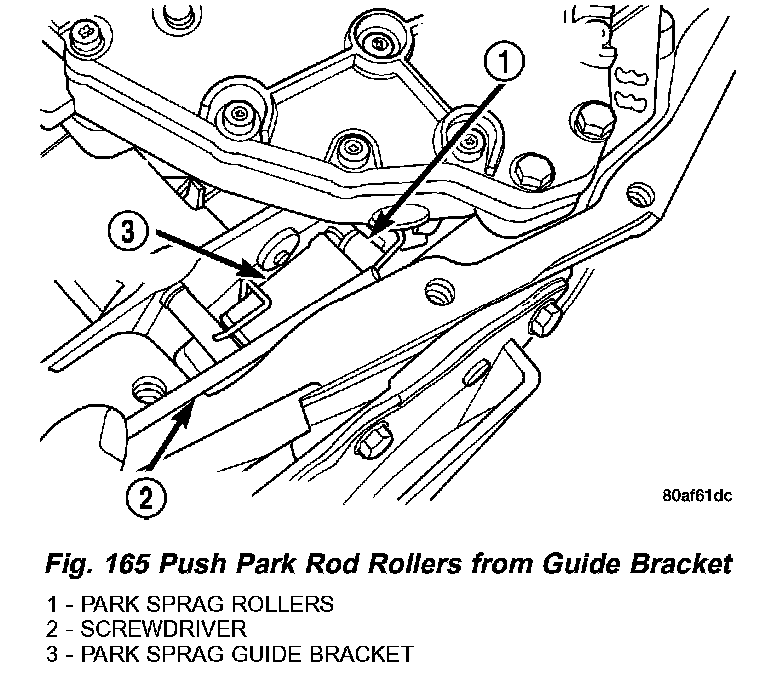

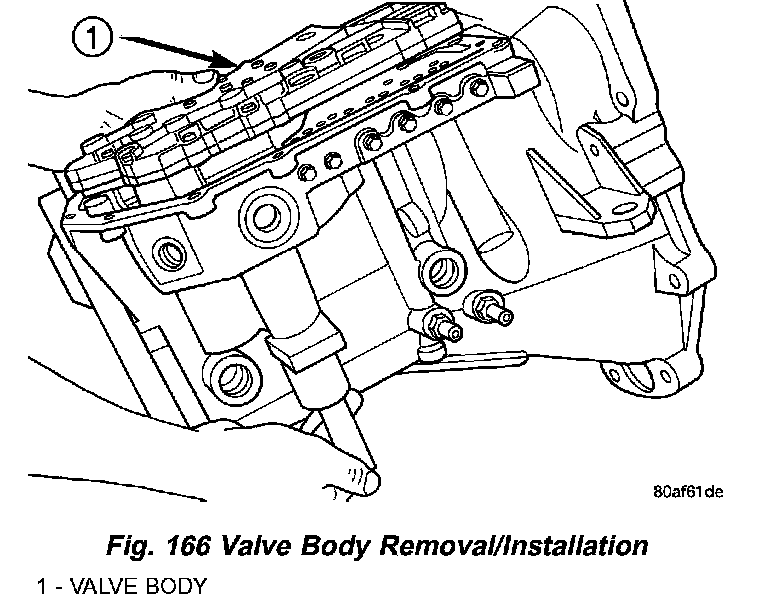

15. Remove park rod rollers from guide bracket and remove valve body from transaxle (Fig. 165) (Fig. 166). Note position of accumulator and springs upon removal for assembly reference.

CAUTION: The valve body manual shaft pilot may distort and bind the manual valve if the valve body is mishandled or dropped.

DISASSEMBLY

NOTE: If valve body assembly is being reconditioned, the PCM/TCM Quick Learn Procedure must be performed.

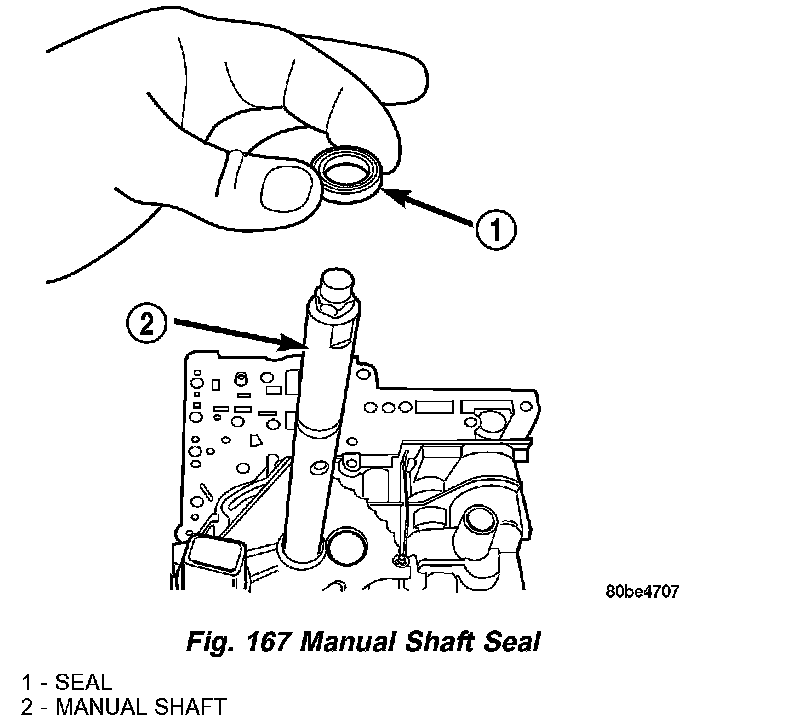

1. Remove manual shaft seal (Fig. 167).

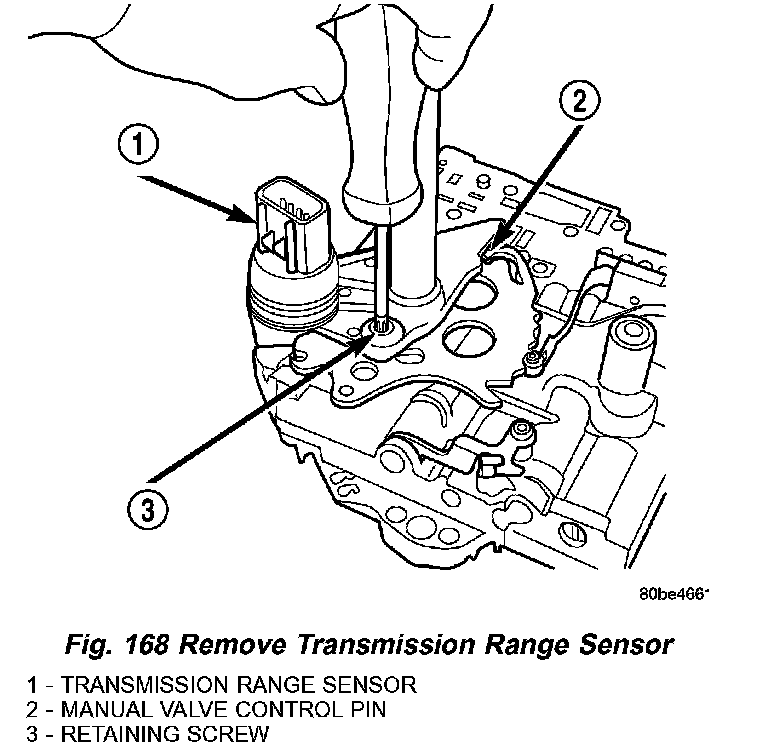

2. Remove Transmission Range Sensor retaining screw (Fig. 168).

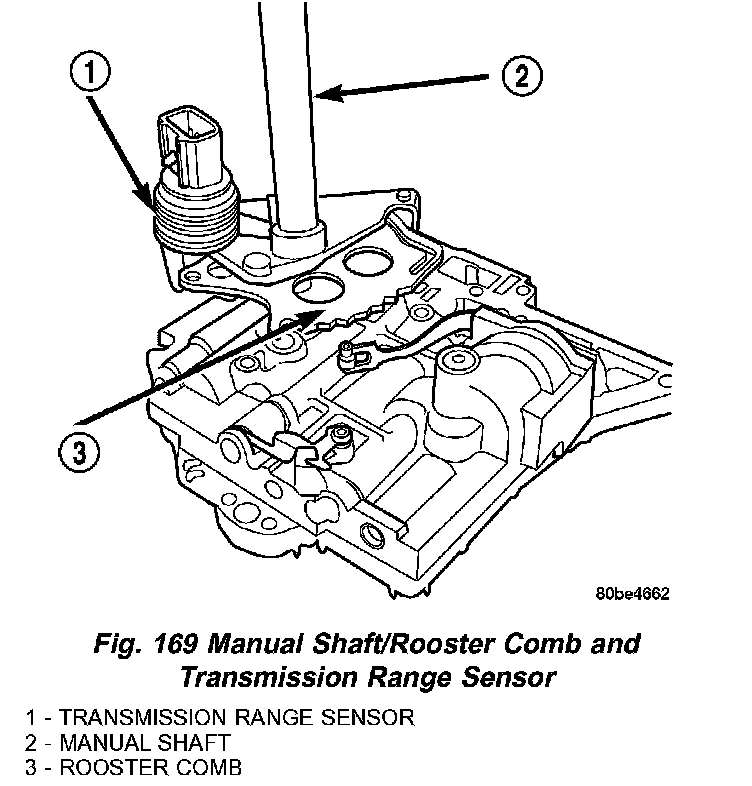

3. Remove Manual Shaft/Rooster Comb and Transmission Range Sensor (Fig. 169).

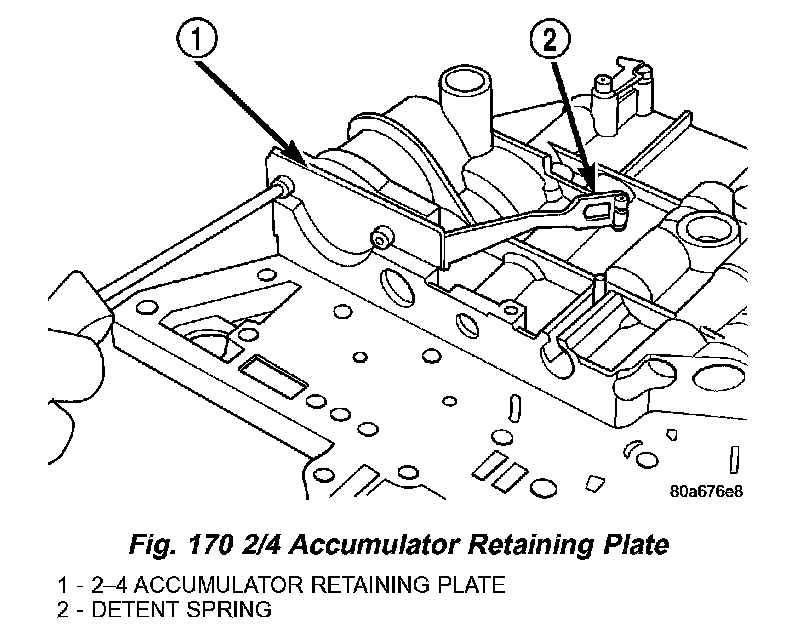

4. Remove 2/4 Accumulator Retaining Plate (Fig. 170).

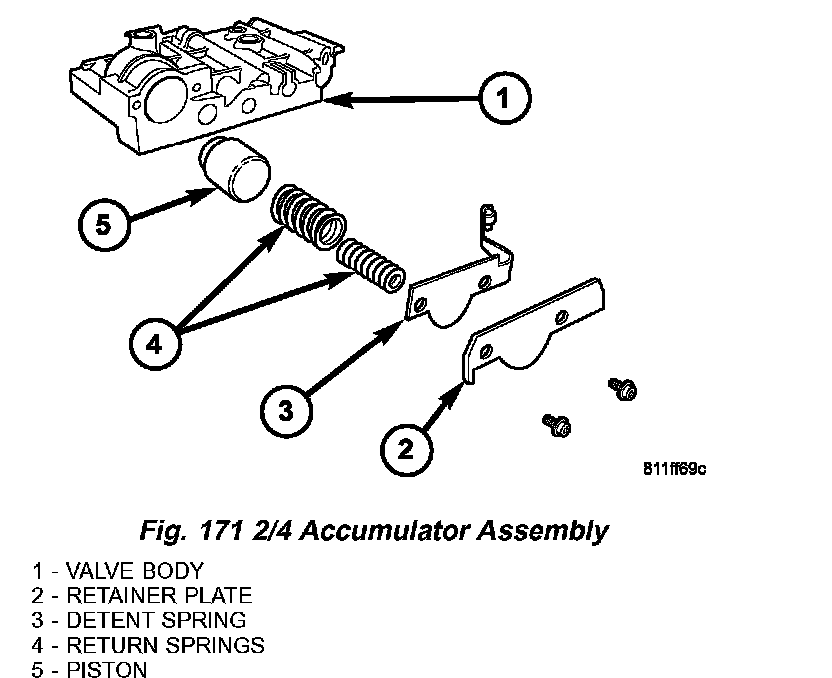

5. Remove 2/4 Accumulator components as shown in (Fig. 171).

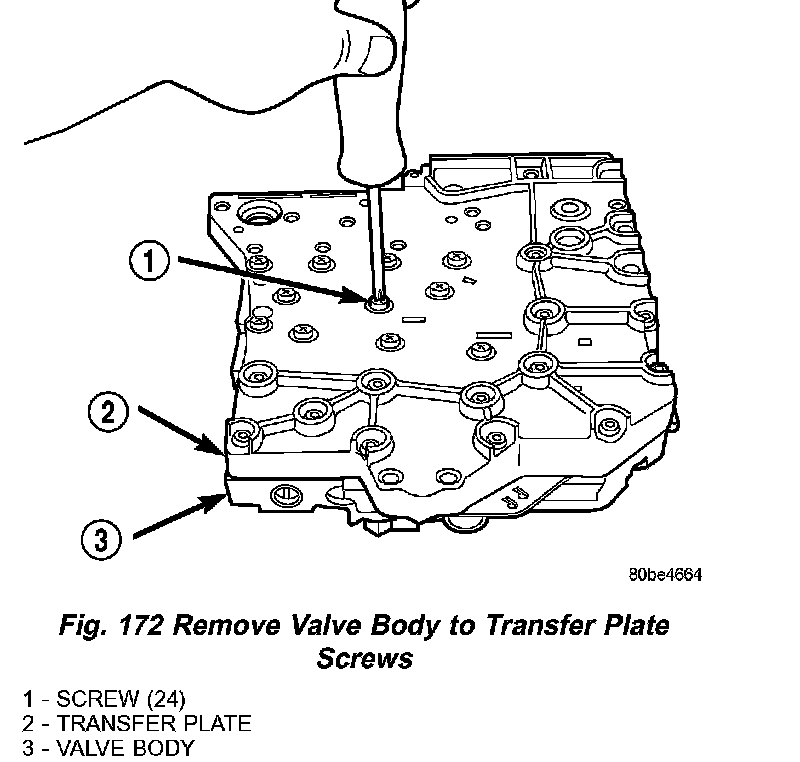

6. Remove Valve Body to Transfer Plate screws (Fig. 172).

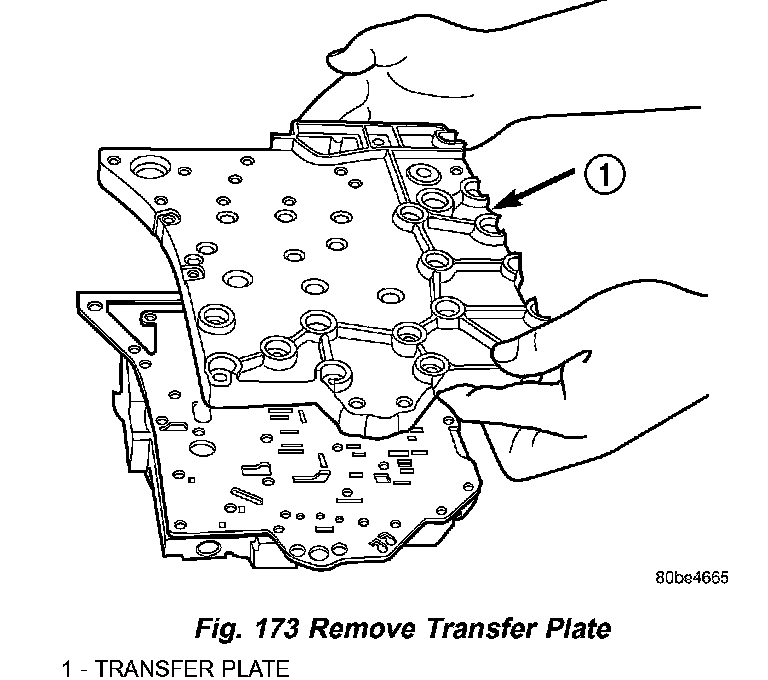

7. Invert assembly and remove Transfer Plate (Fig. 173). Beware of loose check balls.

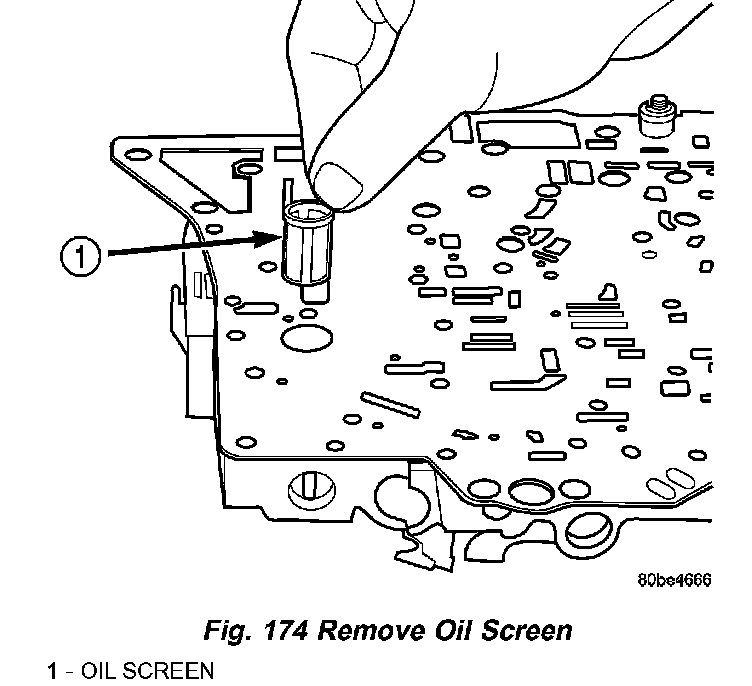

8. Remove oil screen (Fig. 174).

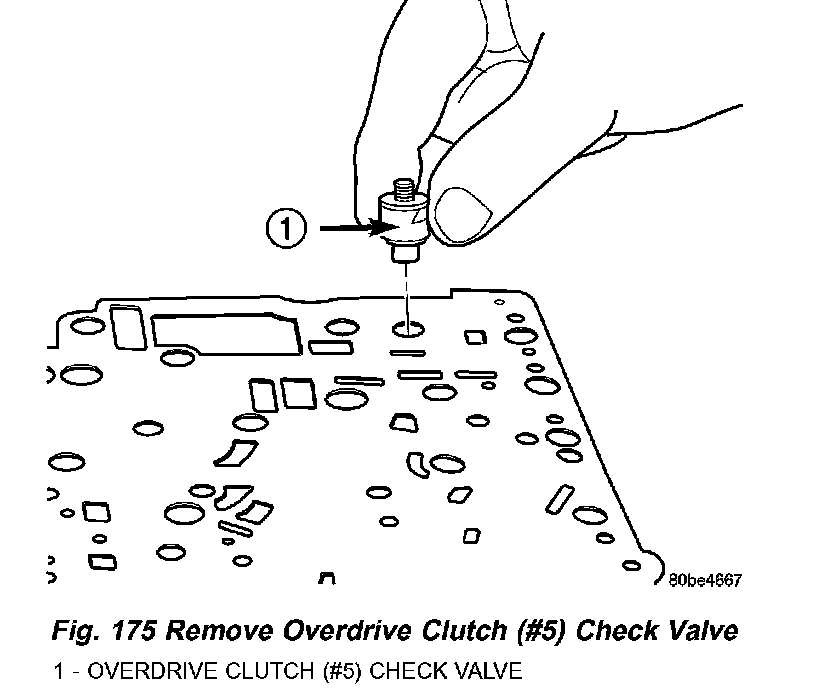

9. Remove the overdrive clutch (#5) check valve (Fig. 175)

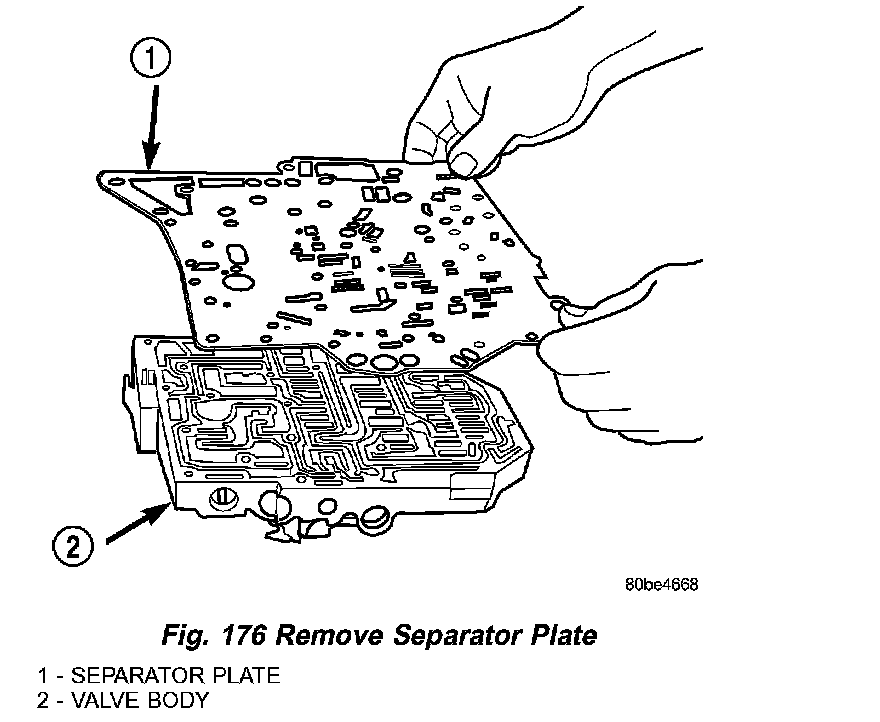

10. Remove separator plate (Fig. 176).

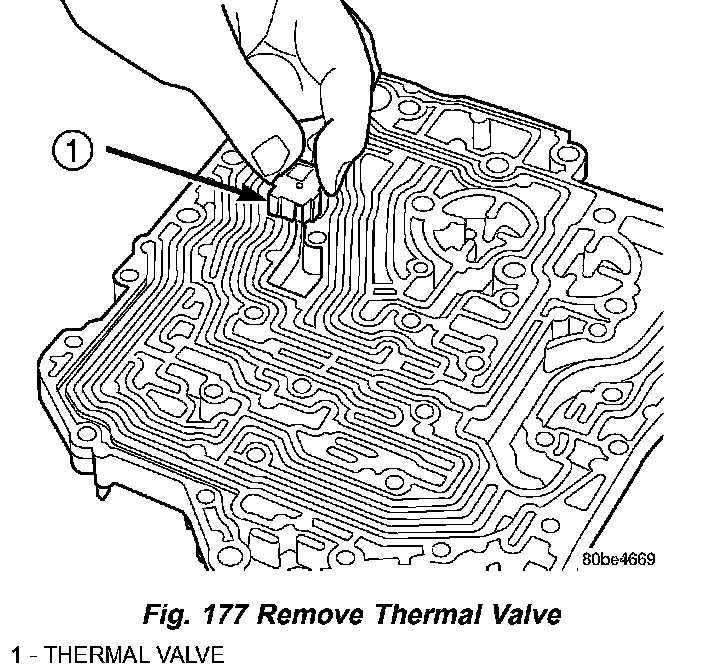

11. Remove thermal valve (Fig. 177).

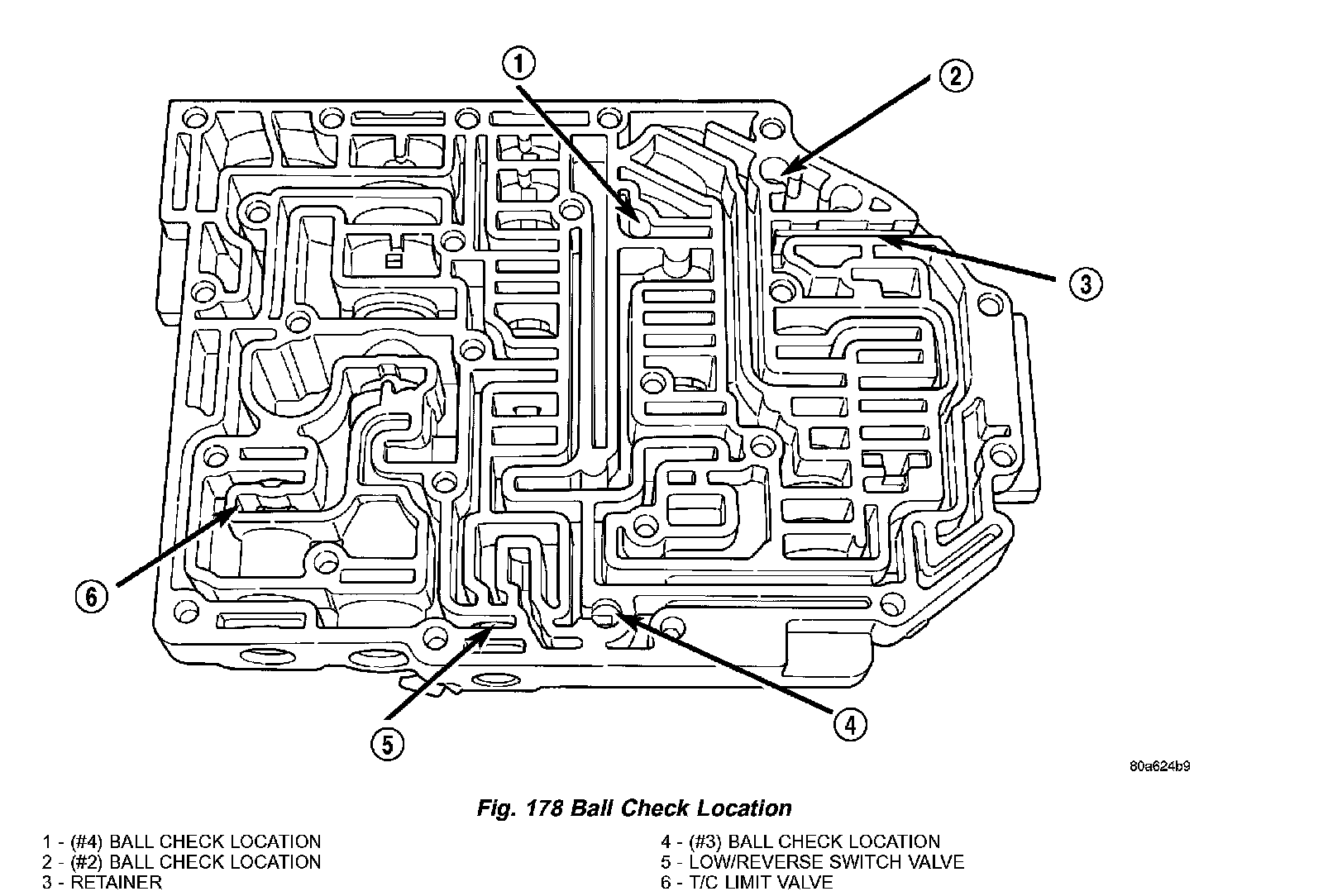

12. Remove check balls (Fig. 178).

NOTE: Tag all valve/spring assemblies for reassembly identification.





13. Remove dual retainer plate using Tool 6301 (Fig. 179).





14. Remove regulator valve spring retainer (Fig. 180).

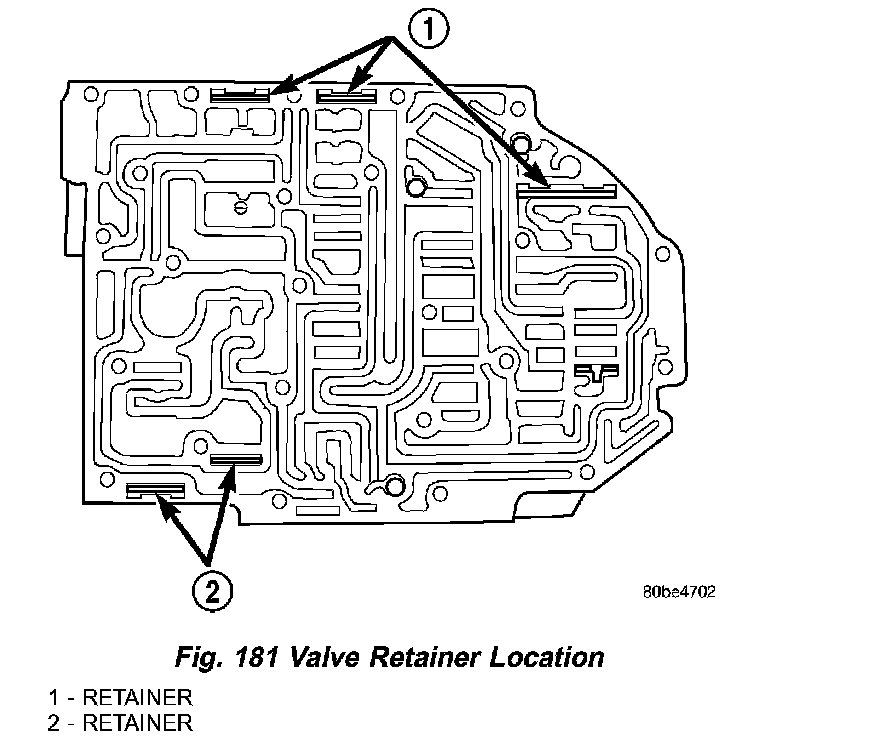

15. Remove remaining retainers as shown in (Fig. 181).

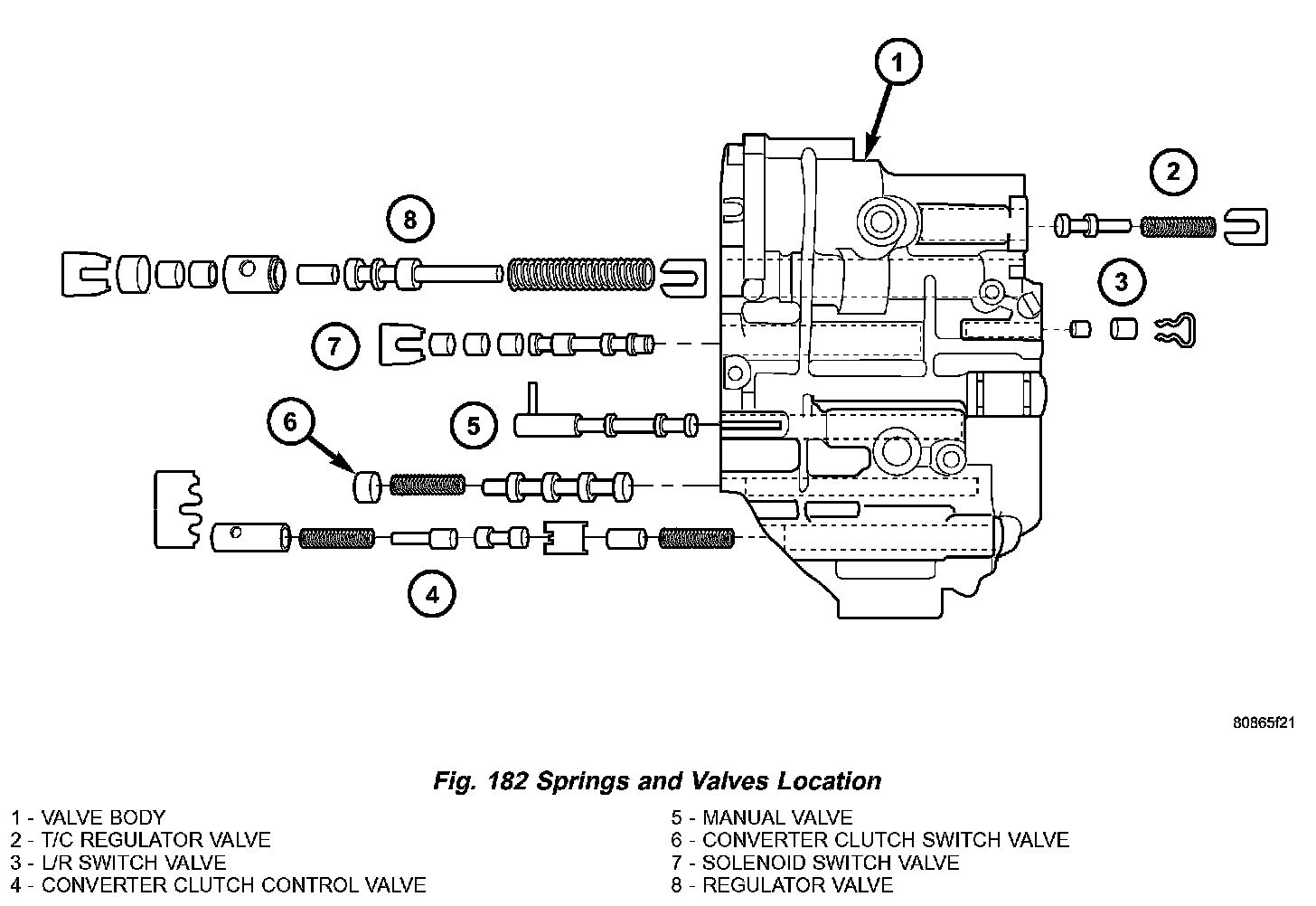

16. Remove valves and springs as shown in (Fig. 182).

NOTE: Refer to Valve Body Cleaning and Inspection for cleaning procedures.

ASSEMBLY

NOTE: If valve body assembly is reconditioned, the PCM/TCM Quick Learn Procedure must be performed.

1. Install valves and springs as shown in (Fig. 182).

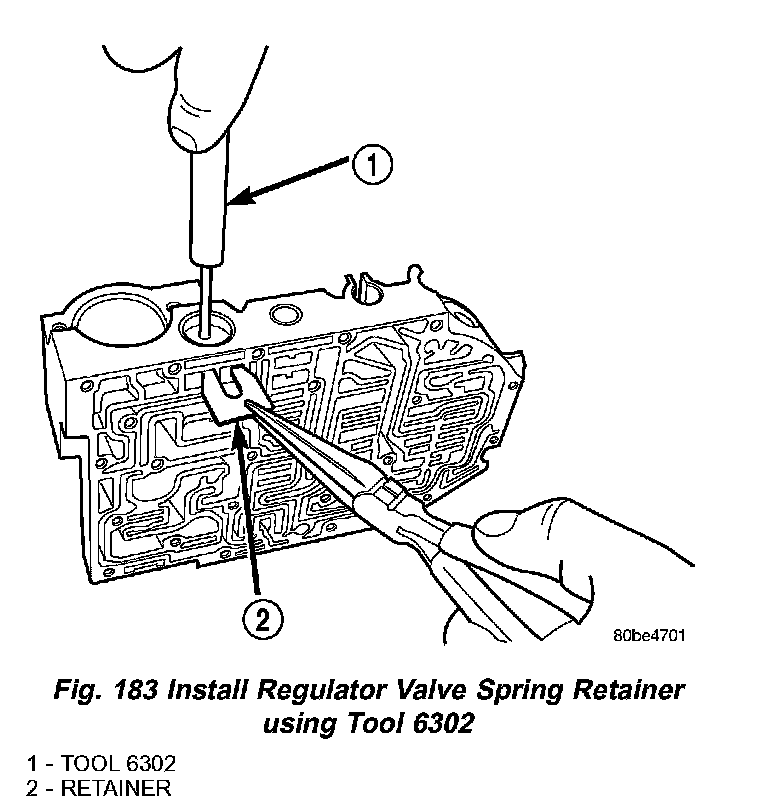

2. Install regulator valve spring retainer (Fig. 183).

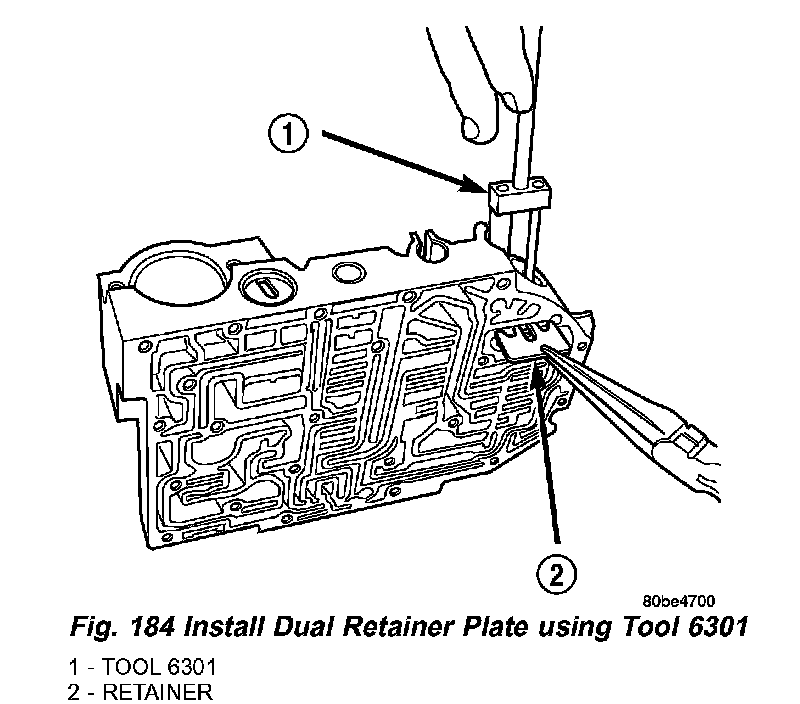

3. Install dual retainer plate using Tool 6301 (Fig. 184).

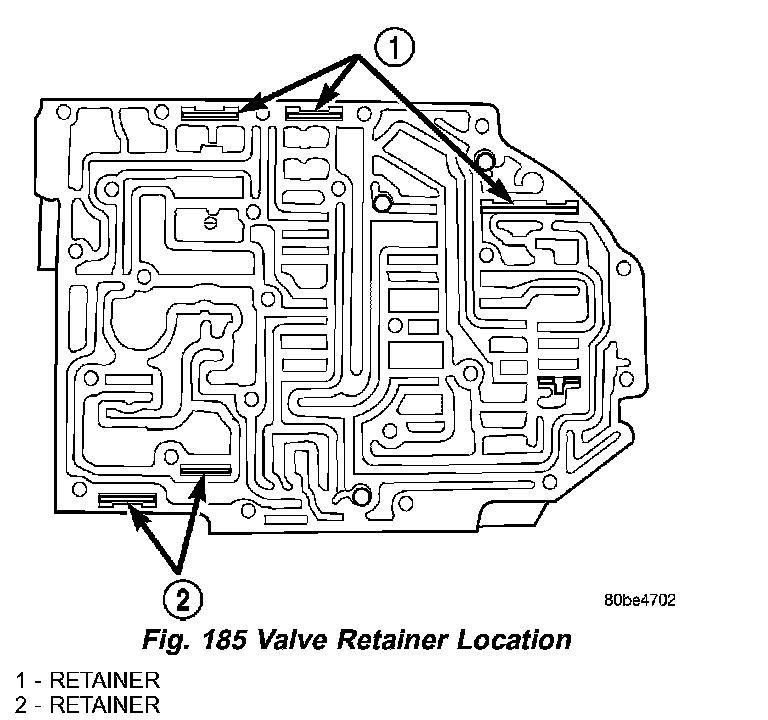

4. Verify that all retainers are installed as shown in (Fig. 185). Retainers should be flush or below valve body surface.

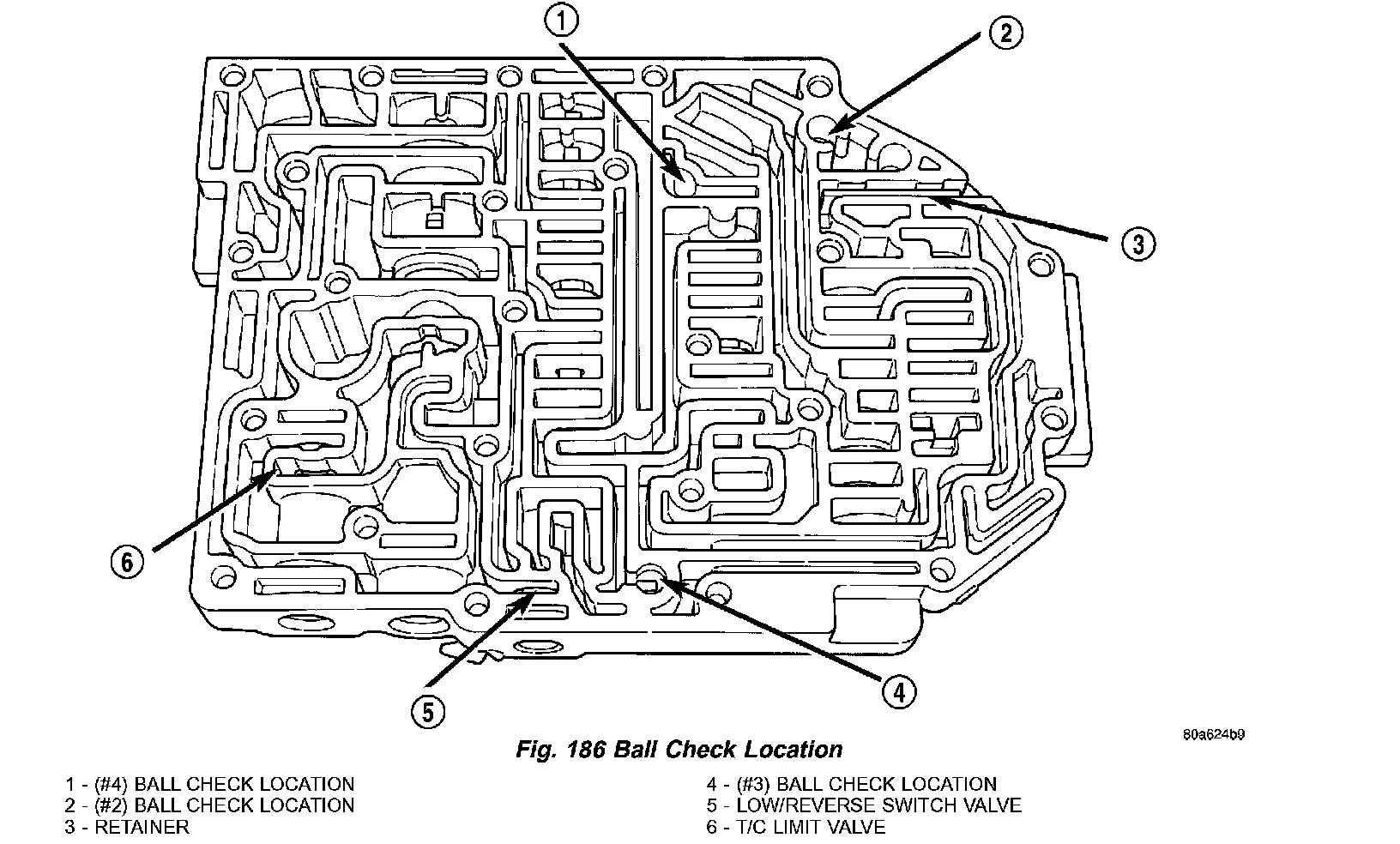

5. Install check balls into position as shown in (Fig. 186). If necessary, secure them with petrolatum or transmission assembly gel for assembly ease.

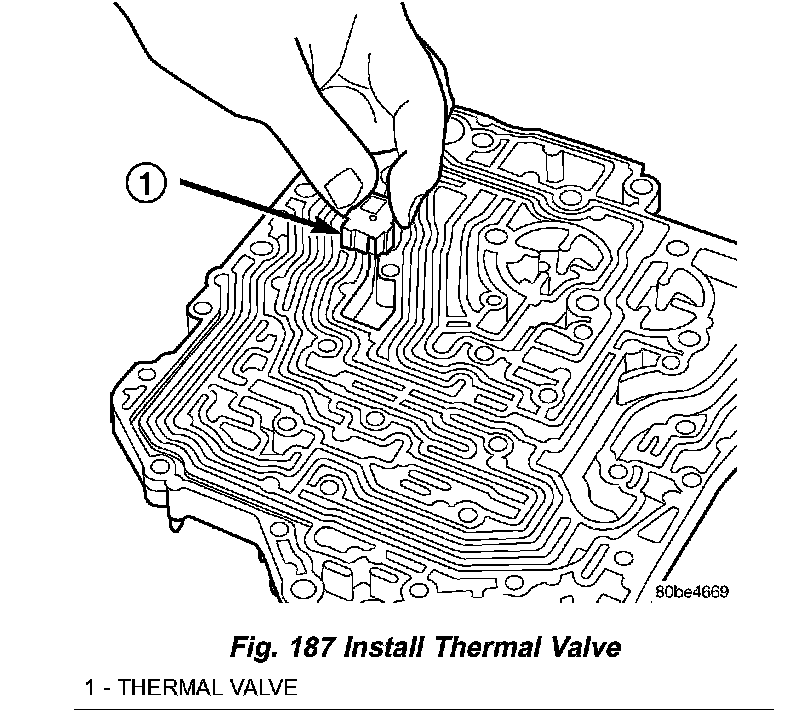

6. Install thermal valve into transfer plate (Fig. 187).

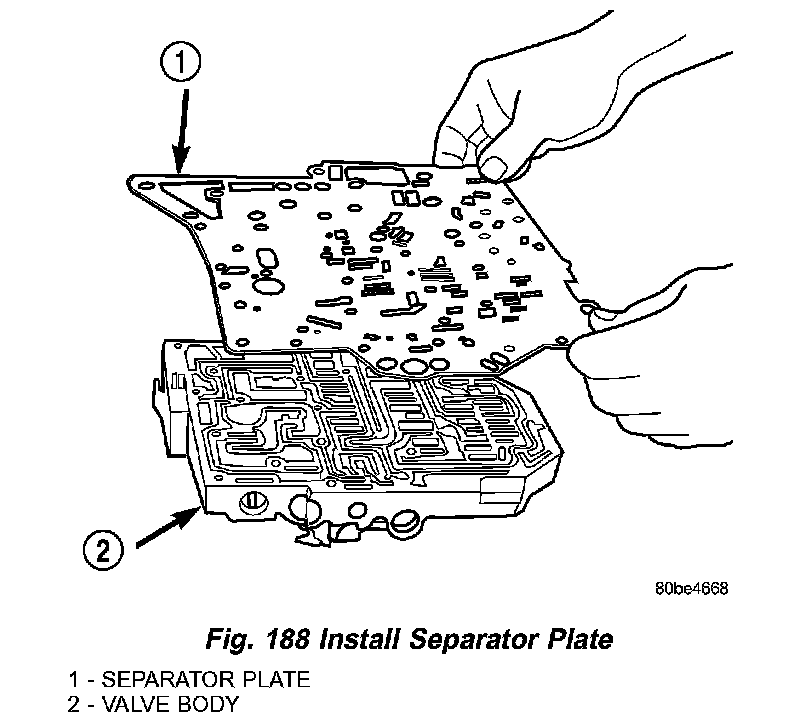

7. Install separator plate to valve body (Fig. 188).

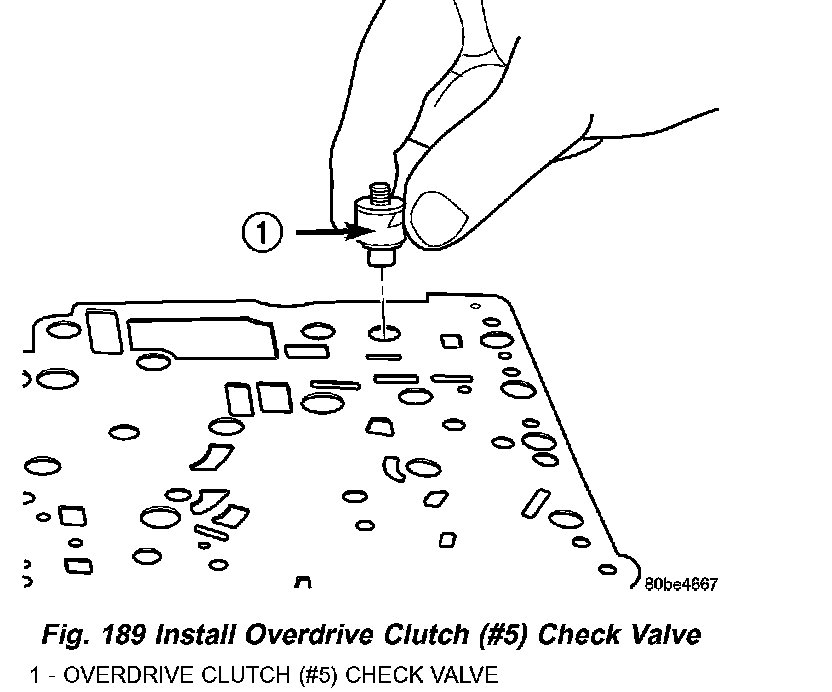

8. Install the overdrive clutch (#5) check valve to separator plate (Fig. 189)

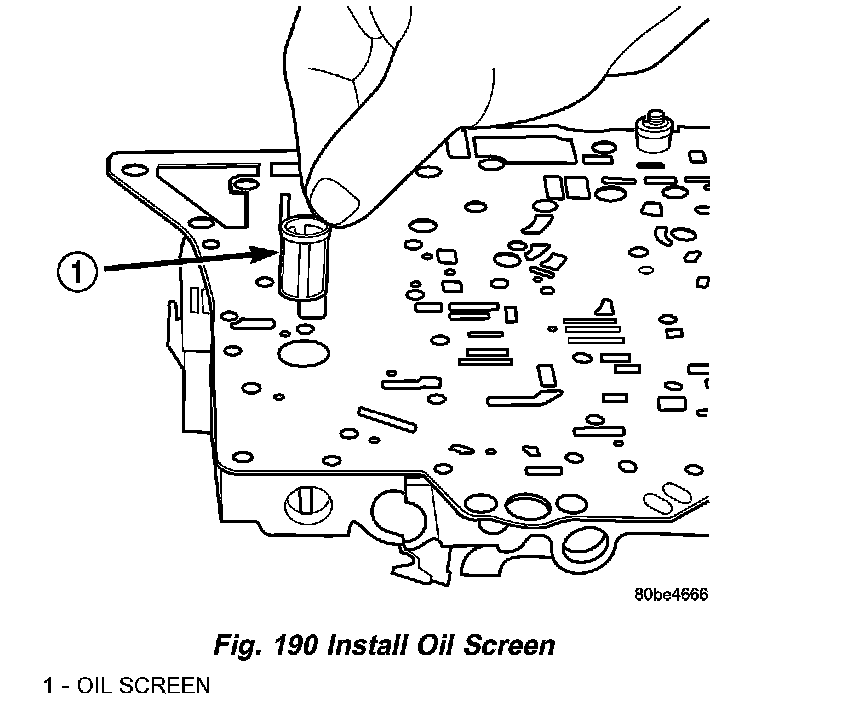

9. Install oil screen to separator plate (Fig. 190).

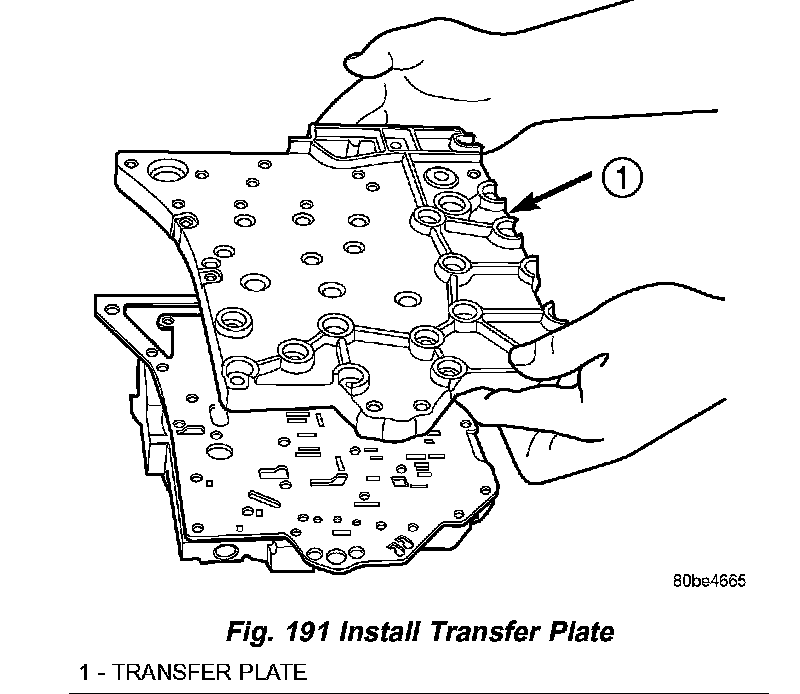

10. Install transfer plate to valve body and separator plate. Make sure oil screen and #5 check valve do not bind (Fig. 191).





11. Install twenty-four transfer plate to valve body screws (Fig. 192) and torque to 5 Nm (45 inch lbs.).

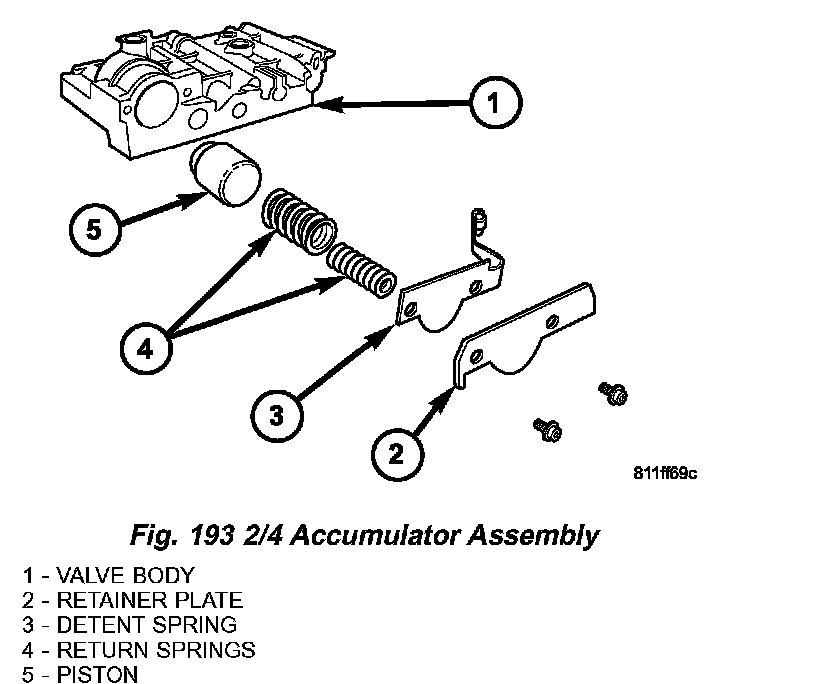

12. Install 2/4 Accumulator components as shown in (Fig. 193).

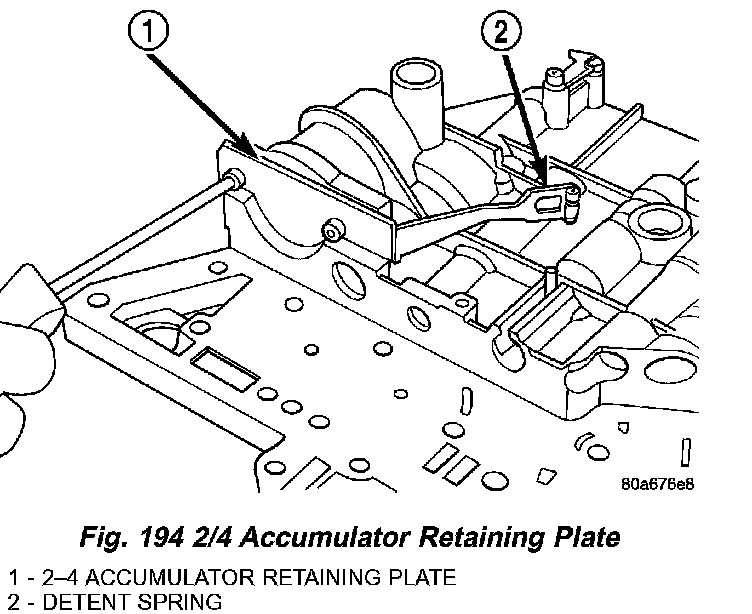

13. Torque 2/4 Accumulator retainer to 5 Nm (45 inch lbs.) (Fig. 194).

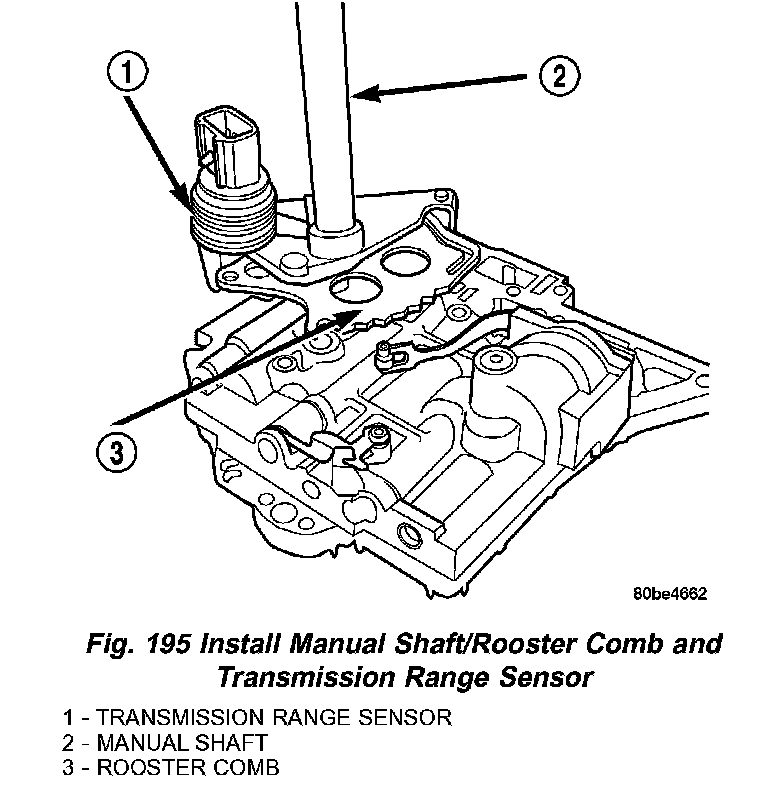

14. Install Manual Shaft/Rooster Comb and Transmission Range Sensor (Fig. 195).

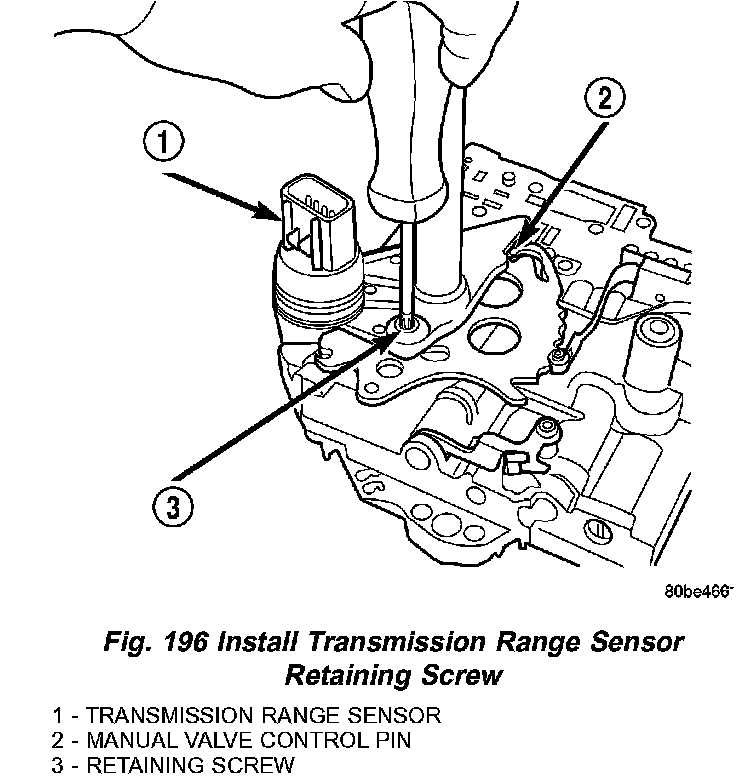

15. Make sure Manual Valve control pin is contained within the rooster comb slot (Fig. 196). Install Transmission Range Sensor retaining screw (Fig. 196) and torque to 5 Nm (45 inch lbs.).

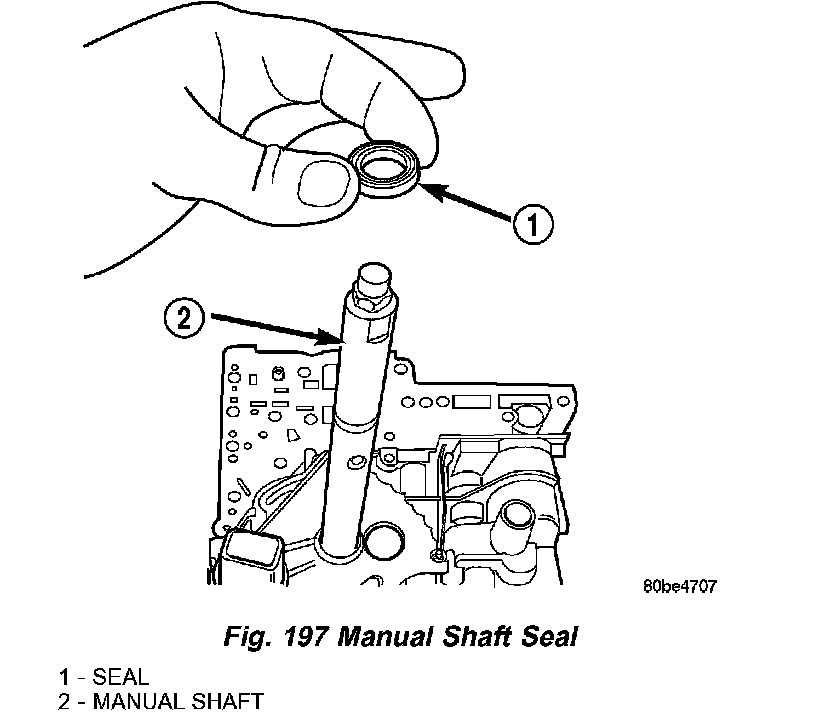

16. Install manual shaft seal (Fig. 197).

INSTALLATION

NOTE: If valve body assembly is being replaced or reconditioned, it is necessary to perform the PCM Quick Learn Procedure.

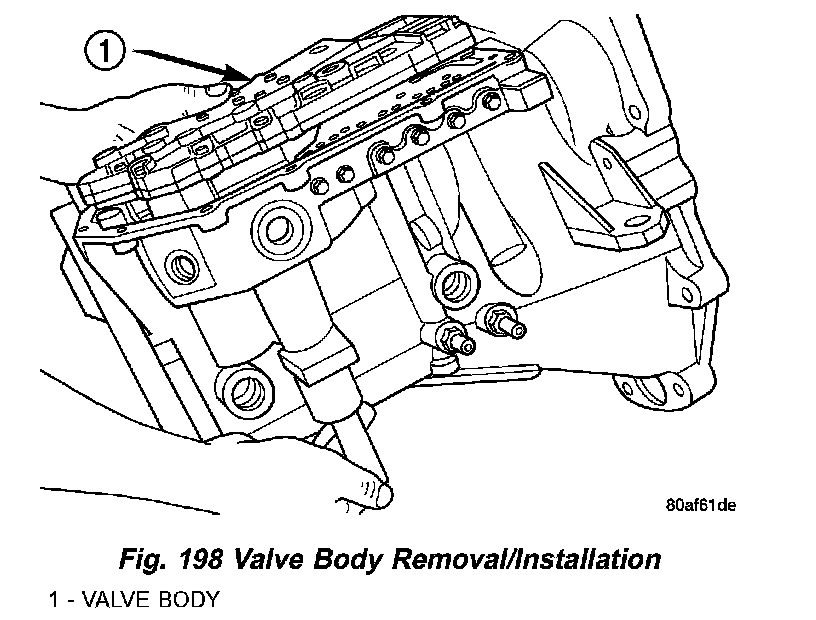

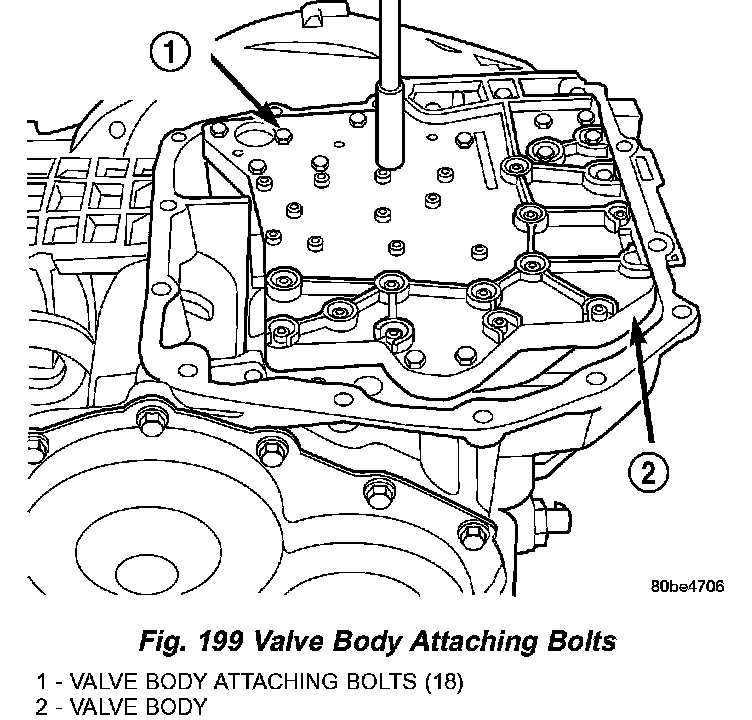

1. Install accumulators and springs as previously removed. Install valve body assembly to transaxle (Fig. 198). Install and torque valve body-to-transaxle case bolts (Fig. 199) to 12 Nm (105 inch lbs.).

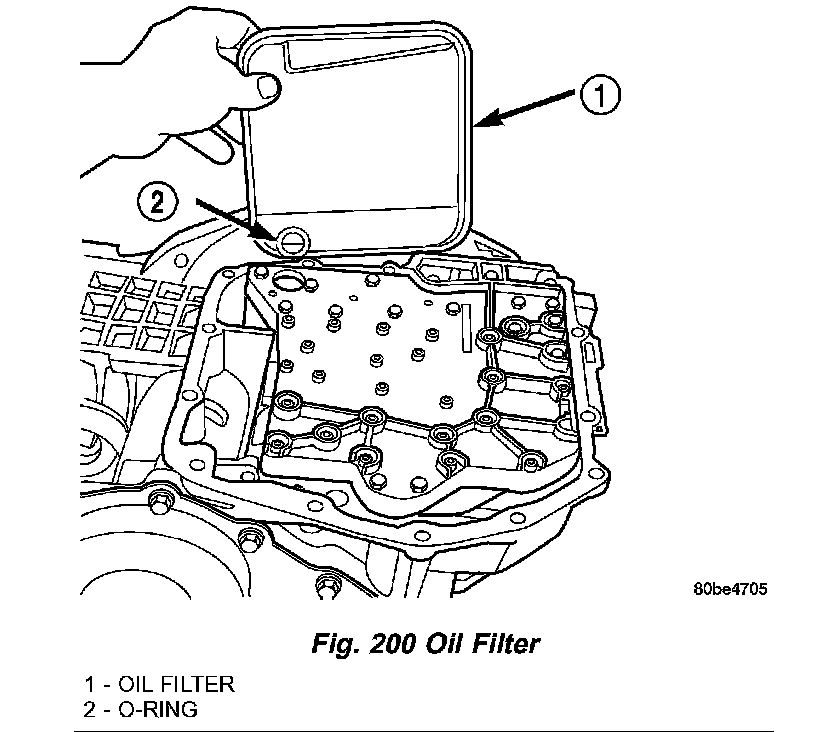

2. Install transaxle oil filter (Fig. 200). Inspect the O-ring and replace if necessary.

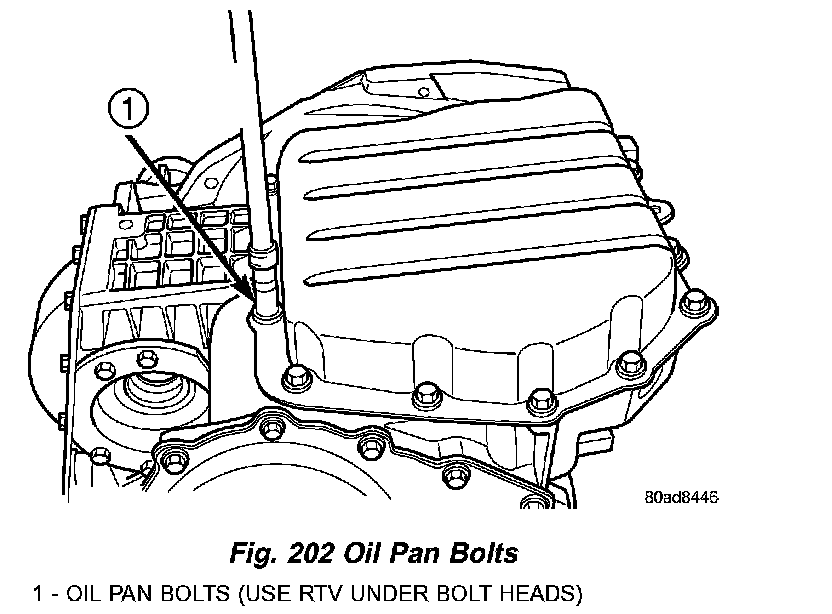

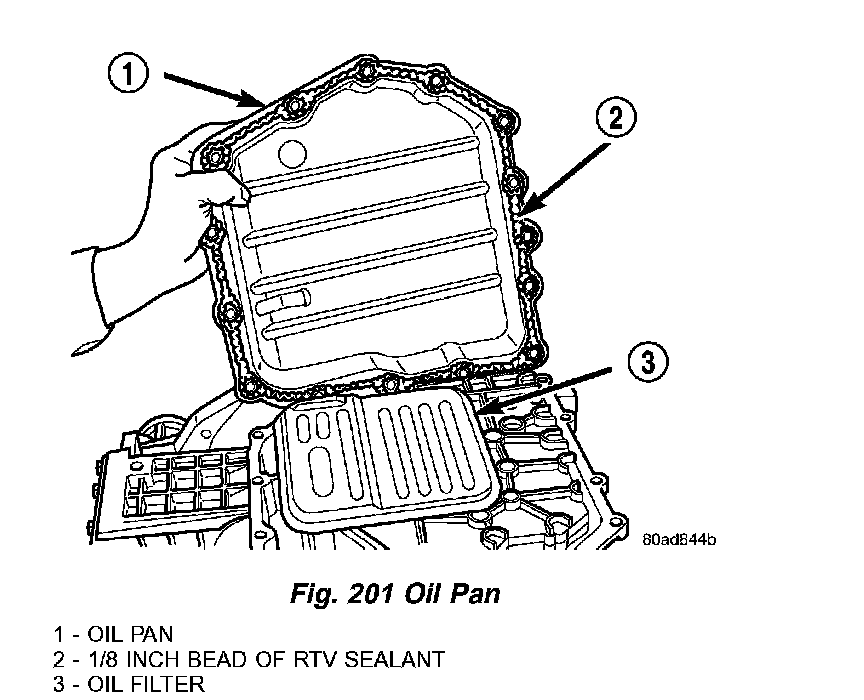

3. Ensure the transaxle oil pan and transaxle case sealing surfaces are clean and dry. Install an 1/8" bead of Mopar Silicone Rubber Adhesive Sealant to the oil pan and install (Fig. 201). Torque oil pan-to-transaxle case bolts (Fig. 202) to 19 Nm (165 inch lbs.).
4. Raise engine cradle crossmember into position.
5. Aligning index/scribe mark placed upon disassembly, Install four (4) cradle-to-body bolts and torque to 162 Nm (120 ft. lbs.).
6. Lower vehicle.
7. Remove engine support fixture 8534B.
8. Raise vehicle.
9. Install and torque engine front and rear mount-to-cradle nuts to 54 Nm (40 ft. lbs.).
10. Lower vehicle.
11. Connect transmission range sensor connector.
12. Install manual valve lever to manual shaft.
13. Install gearshift cable to manual valve lever.
14. Install battery and tray.
15. Connect battery negative cable.
16. Fill transaxle with Mopar ATF +4 Transmission fluid.
