Front Section

NOTE: The A/C suction line is serviced in two sections. The rear section of the suction line is serviced as an assembly with the rear section of the A/C liquid line.

REMOVAL

WARNING: REFER TO THE APPLICABLE WARNINGS AND CAUTIONS FOR THIS SYSTEM BEFORE PERFORMING THE FOLLOWING OPERATION. FAILURE TO FOLLOW THE WARNINGS AND CAUTIONS COULD RESULT IN POSSIBLE PERSONAL INJURY OR DEATH.




1. Recover the refrigerant from the refrigerant system.
2. Disconnect and isolate the negative battery cable.
3. Remove the air cleaner housing.

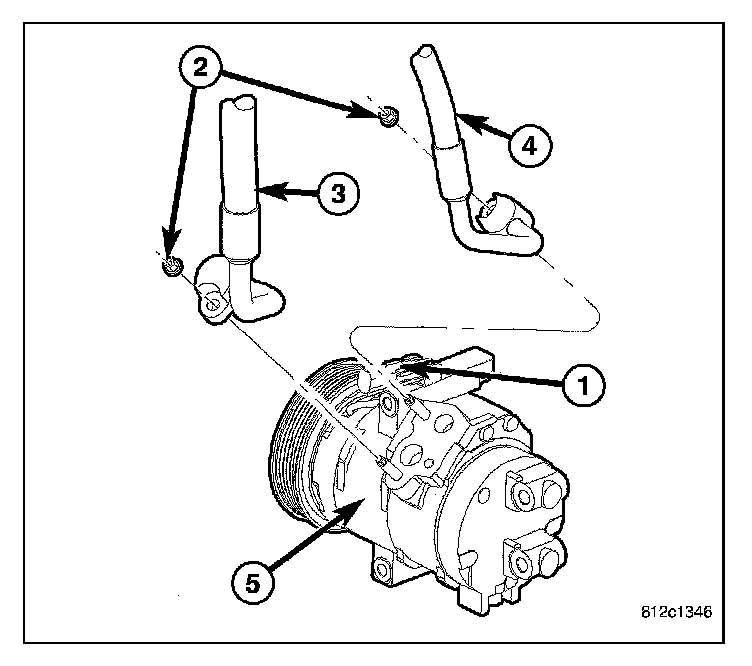

4. Remove the nut (2) that secures the front section of the A/C suction line (3) to the A/C compressor (5).
5. Disconnect the A/C suction line from the A/C compressor and remove and discard the dual plane seal.
6. Install plugs in, or tape over the opened suction line fitting and compressor inlet port.

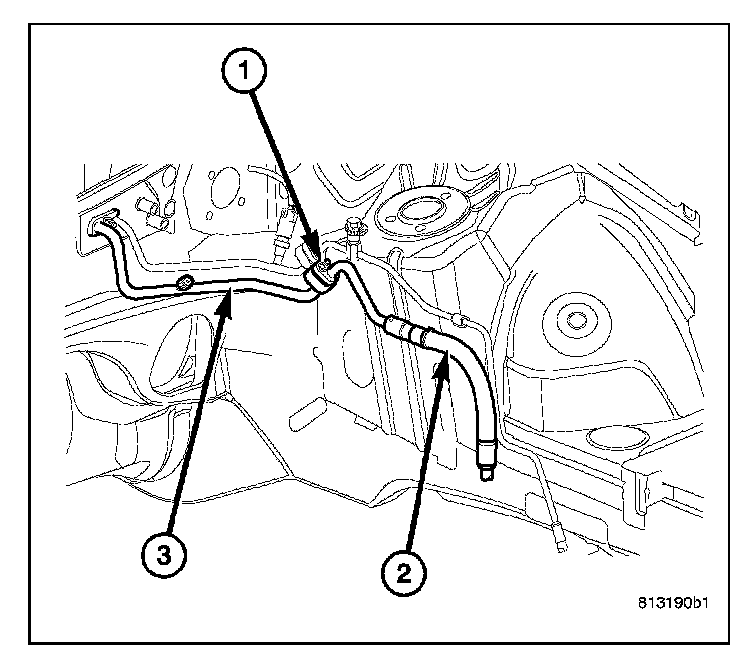

7. Remove the nut (1) that secures the front section of the A/C suction line (2) to the rear section of the suction line (3).
8. Disconnect the front section of the A/C suction line from the rear section of the suction line and remove and discard the dual plane seal.
9. Install plugs in, or tape over the opened suction line fittings.
10. Remove the front section of the A/C suction line from the engine compartment.

INSTALLATION




1. Position the front section of the A/C suction line (2) into the engine compartment.
2. Remove the tape or plugs from the fittings that connect the front section of the A/C suction line to the rear section of the A/C suction line (3).
3. Lubricate a new dual plane seal with clean refrigerant oil and install it onto the suction line fitting. Use only the specified seal as it is made of a special material for the R-134a system. Use only refrigerant oil of the type recommended for the A/C compressor in the vehicle.
4. Connect the front section of the A/C suction line to the rear section of the A/C suction line.
5. Install the nut (1) that secures the front section of the A/C suction line to the rear section of the A/C suction line. Tighten the nut to 22 N.m (16 ft.lbs.).

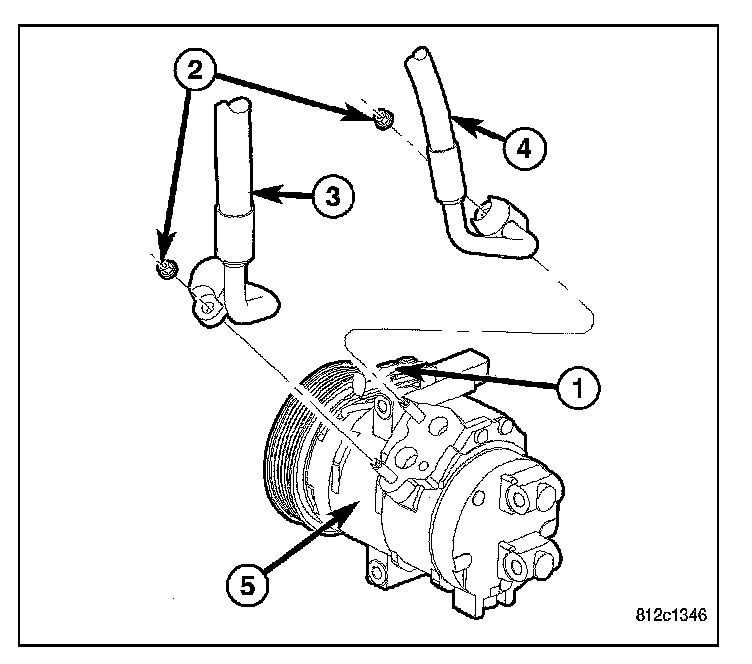

6. Remove the tape or plugs from the fitting on the front section of the A/C suction line (3) and the inlet port of the A/C compressor (5).
7. Lubricate a new dual plane seal with clean refrigerant oil and install it onto the suction line fitting. Use only the specified seal as it is made of a special material for the R-134a system. Use only, refrigerant oil of the type recommended for the A/C compressor in the vehicle.
8. Connect the A/C suction line to the A/C compressor.
9. Install the nut (2) that secures the front section of the A/C suction line to the A/C compressor. Tighten the nut to 22 N.m (16 ft.lbs.).
10. Install the air cleaner housing.
11. Reconnect the negative battery cable.
12. Evacuate the refrigerant system.
13. Charge the refrigerant system.
