Rearview Mirror

REAR VIEW MIRROR

REMOVAL

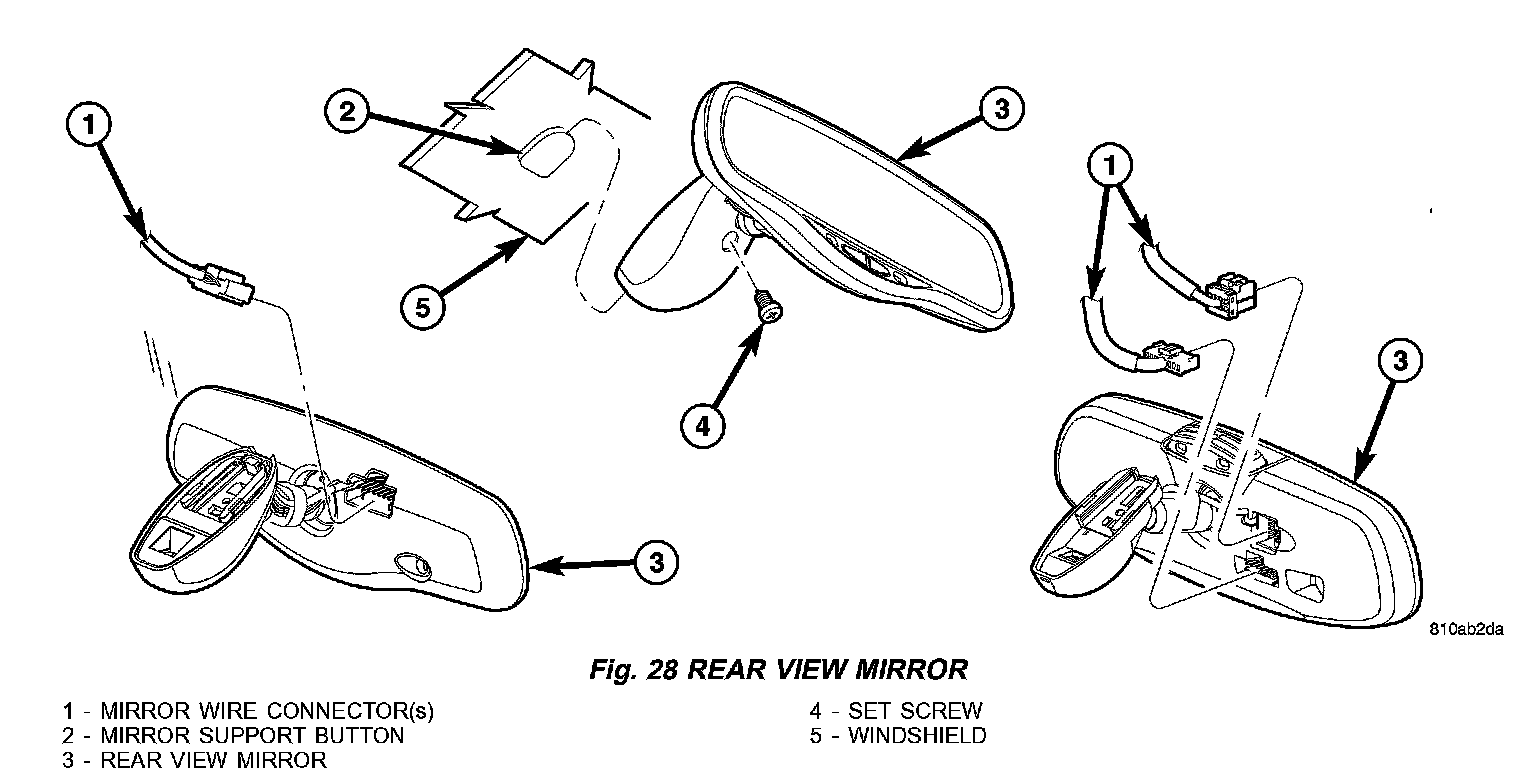

Fig. 28:

1. If equipped, disconnect mirror wire connector(s) (Fig. 28).
2. Loosen the mirror base set screw.
3. Slide the mirror base upward and off the support button.

INSTALLATION

1. Position the mirror base at the support button and slide it downward onto the button (Fig. 28).
2. Tighten the set screw 1 N.m (15 in.lbs.) torque.
3. If equipped, connect mirror wire connector(s).
