C201
C201
C201 (Body Side) Part 1 Of 2:

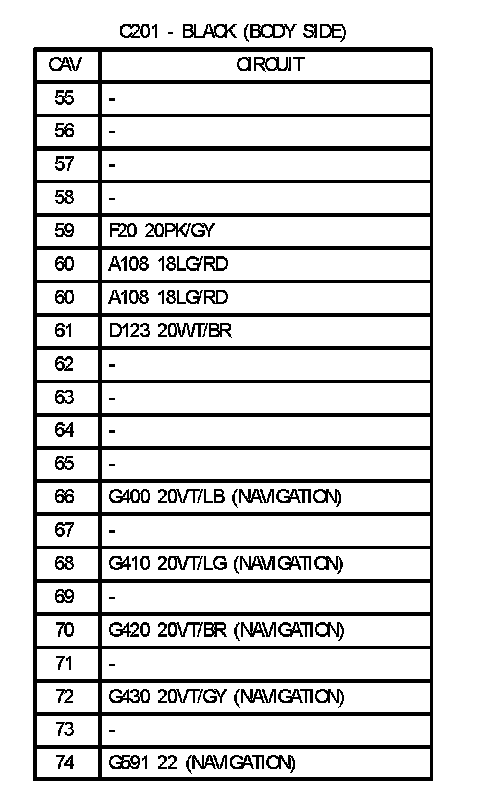

C201 (Body Side) Part 2 Of 2:

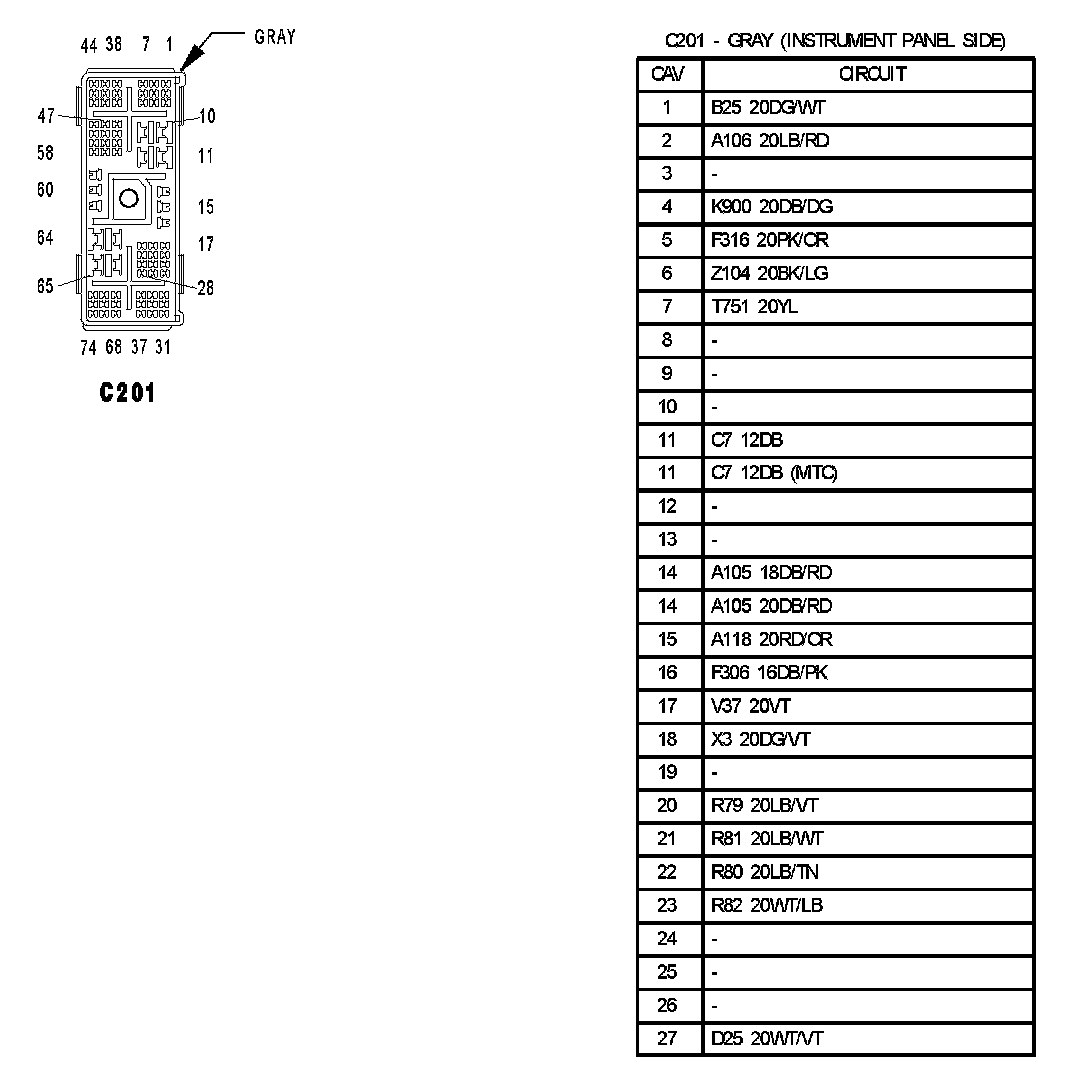

C201 (Instrument Panel Side) Part 1 Of 2:

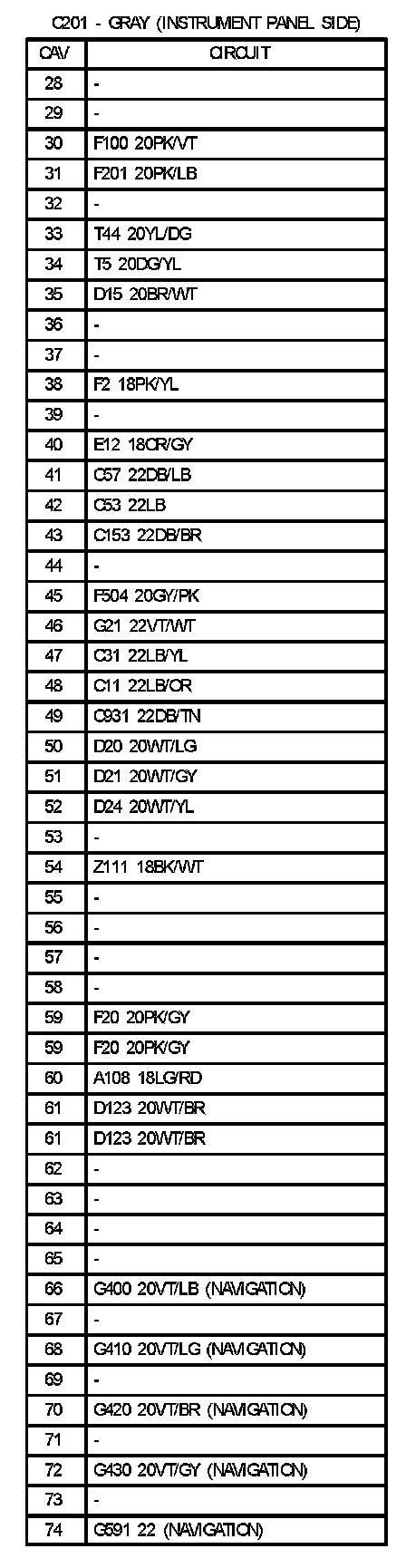

C201 (Instrument Panel Side) Part 1 Of 2:
