Fog/Driving Lamp Bulb: Service and Repair

REMOVAL
1. Open hood, disconnect and isolate the battery negative cable.

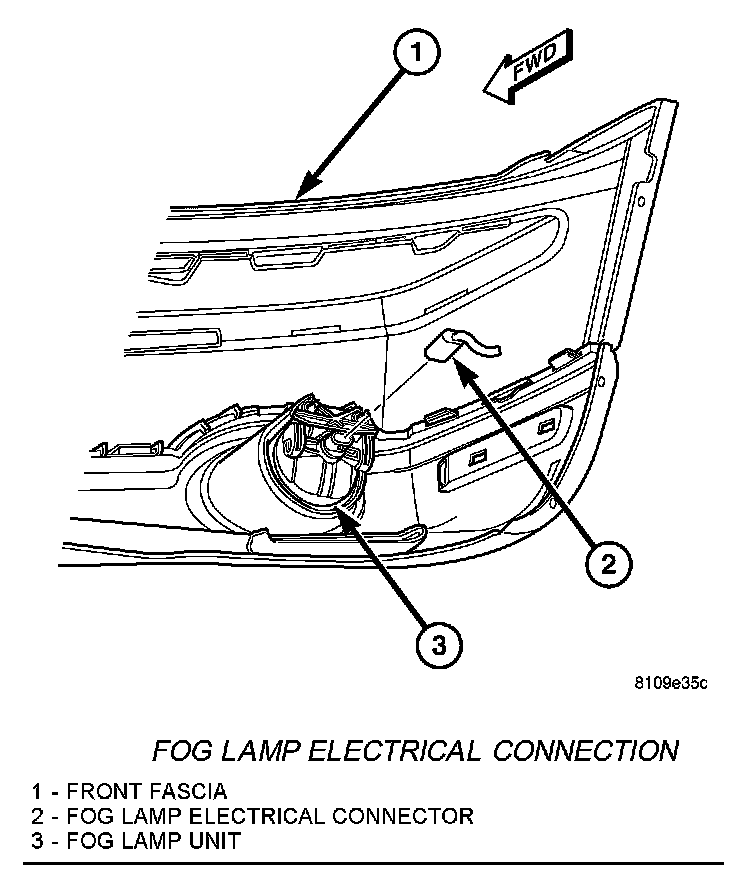

Fog Lamp Electrical Connection:

2. Reach up behind the front fascia and disconnect the fog lamp electrical connector.
3. Twist the fog lamp 1/4 turn counterclockwise and pull rearward from fog lamp unit.

INSTALLATION
1. Place the fog lamp into fog lamp unit and twist the fog lamp 1/4 turn clockwise until it hits its stop.
2. Connect the fog lamp electrical connector.
3. Connect the battery negative cable.
4. Verify vehicle and system operation.
5. Close hood.
