Procedures

REMOVAL

1. Disengage locking tabs attaching rear header trim panel.

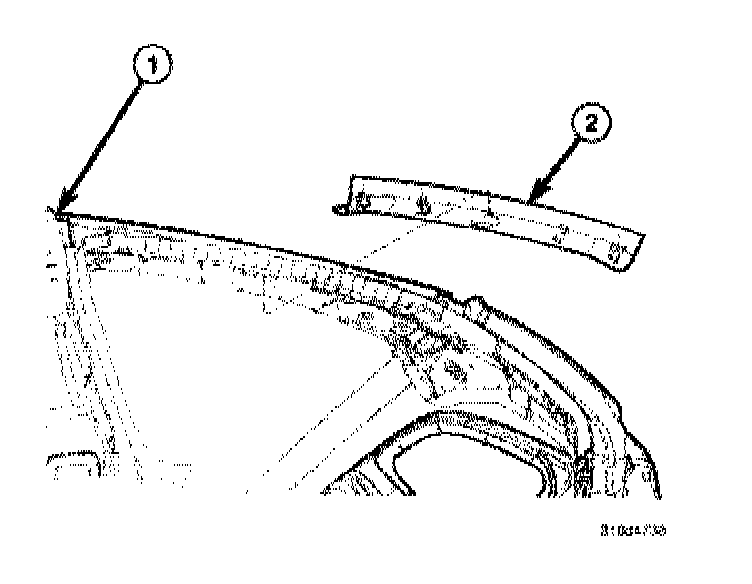

Rear Header Trim:

2. Remove rear header trim from vehicle.



INSTALLATION

1. Place rear header trim panel into position.
2. Press on rear header trim to engage push pins to body assembly.
