Home
>>
Chrysler
>>
2005
>>
Pacifica V6-3.8L VIN L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C100 - C303
>>
C106
C106

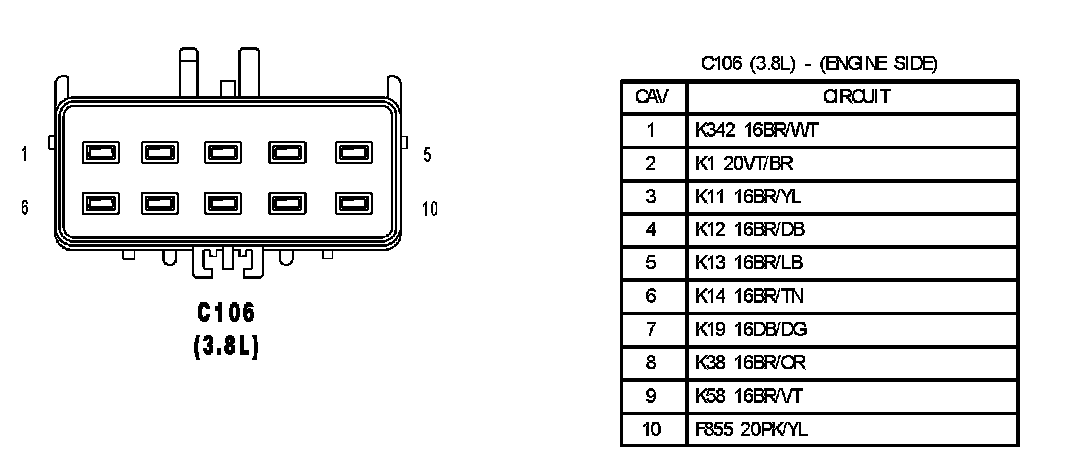

C106 (3.8L):

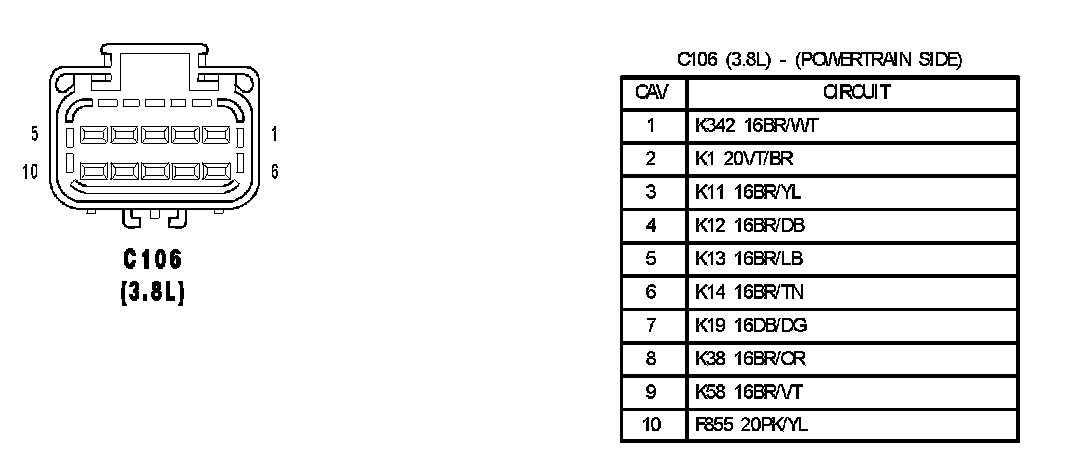

C106 (3.8L):
