Seat Belt Tensioner
Seat Belt Tensioner

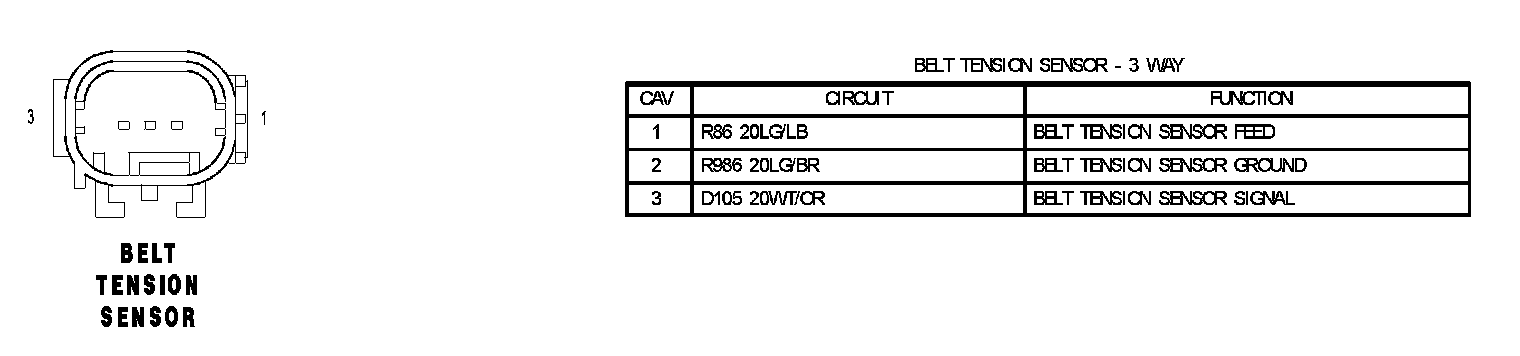

Belt Tension Sensor:

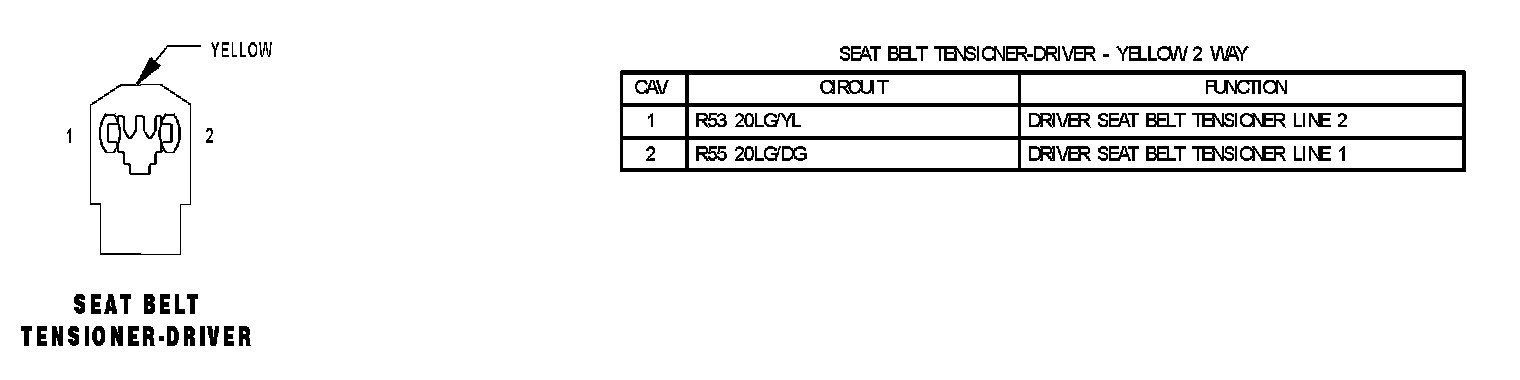

Seat Belt Tension - Driver:

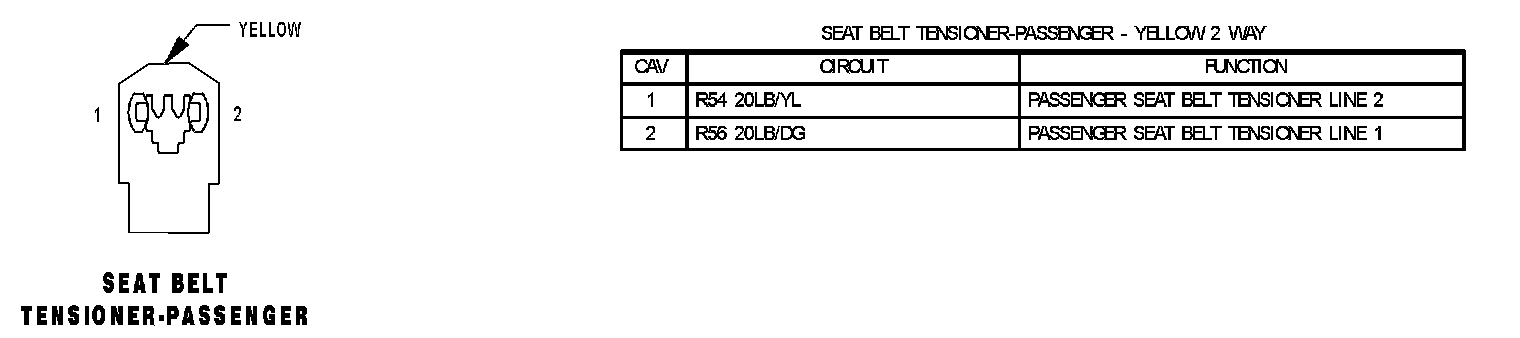

Seat Belt Tension - Passenger:
