Air Cleaner Housing: Service and Repair
AIR CLEANER HOUSINGREMOVAL
1) Disconnect the negative battery cable.

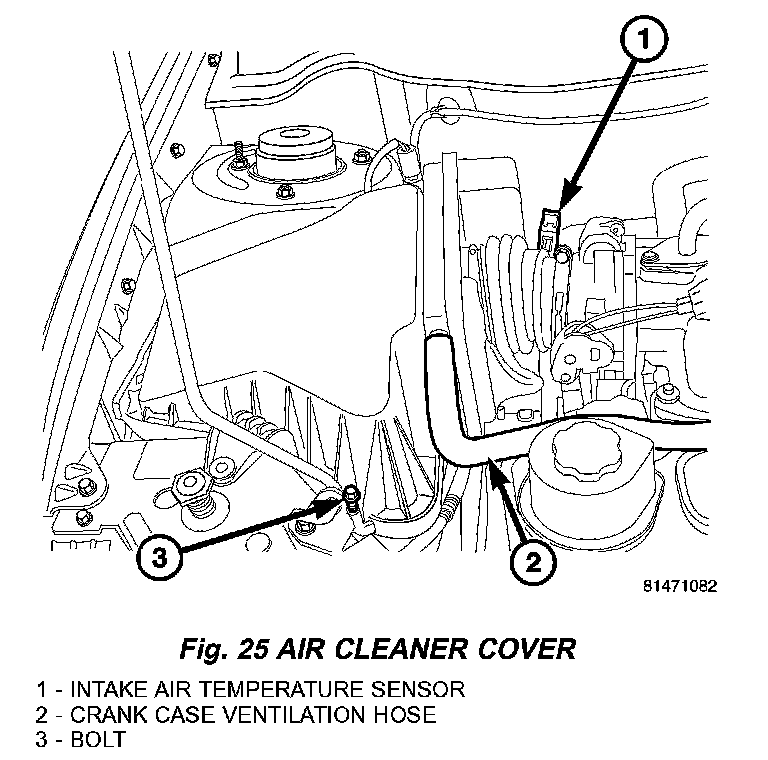

2) Disconnect the inlet air temperature sensor (Fig. 25).
3) Disconnect the CCV hose from the air cleaner cover (Fig. 25).
4) Remove the air inlet tube to throttle body (Fig. 25).
5) Remove the bolt for air cleaner housing at upper radiator cross member (Fig. 25).
6) Pull air box up and off over the single locating pin.
7) Remove air box from vehicle.
INSTALLATION
1) Install air cleaner housing into vehicle and onto the locating pin.

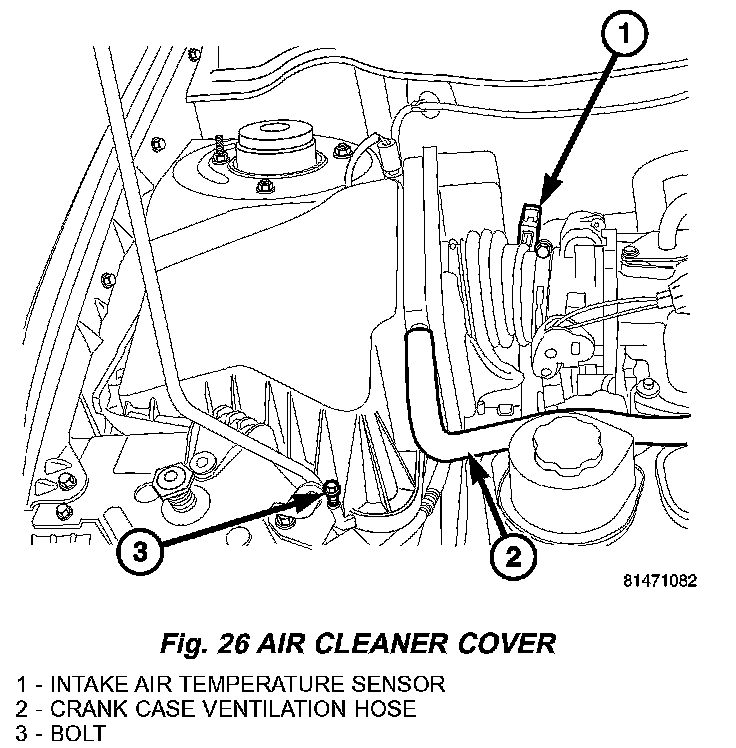

2) Install bolt to hold air cleaner housing to the upper radiator cross member (Fig. 26).
3) Install the air inlet tube to the throttle body and tighten clamp (Fig. 26).
4) Connect the IAT sensor (Fig. 26).
5) Connect the CCV hose to the air cleaner cover (Fig. 26).
6) Connect the negative battery cable.
