Throttle Body: Service and Repair

REMOVAL
1. Disconnect negative cable from battery
2. Remove the air cleaner box.

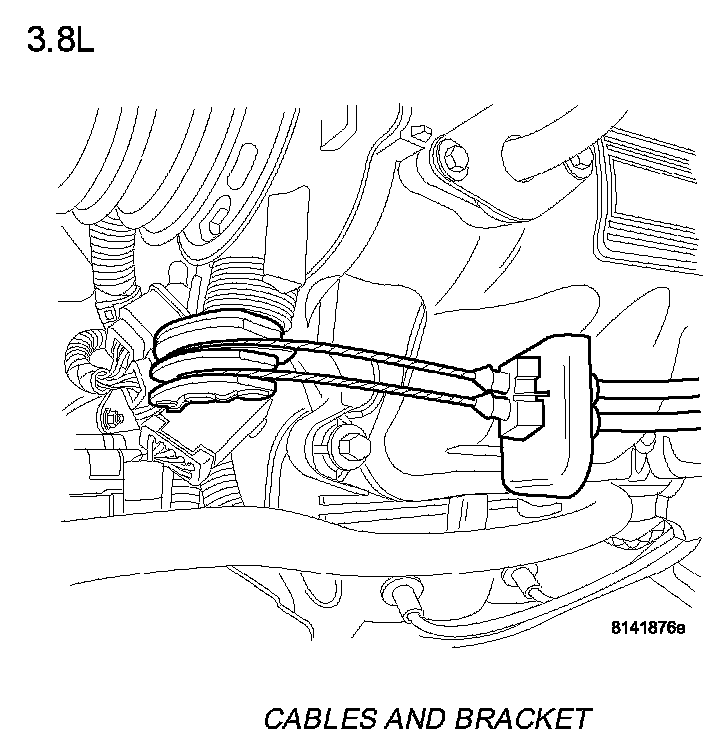

Cables And Bracket:

3. Remove throttle and speed control cables.

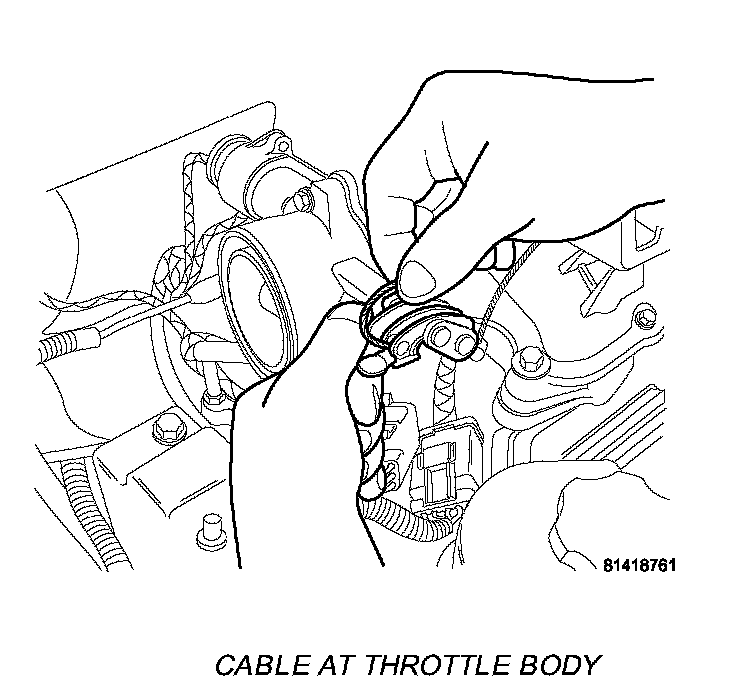

Cable At Throttle Body:

4. Hold throttle lever in wide open position. Remove throttle cable and speed control cables from throttle arm.

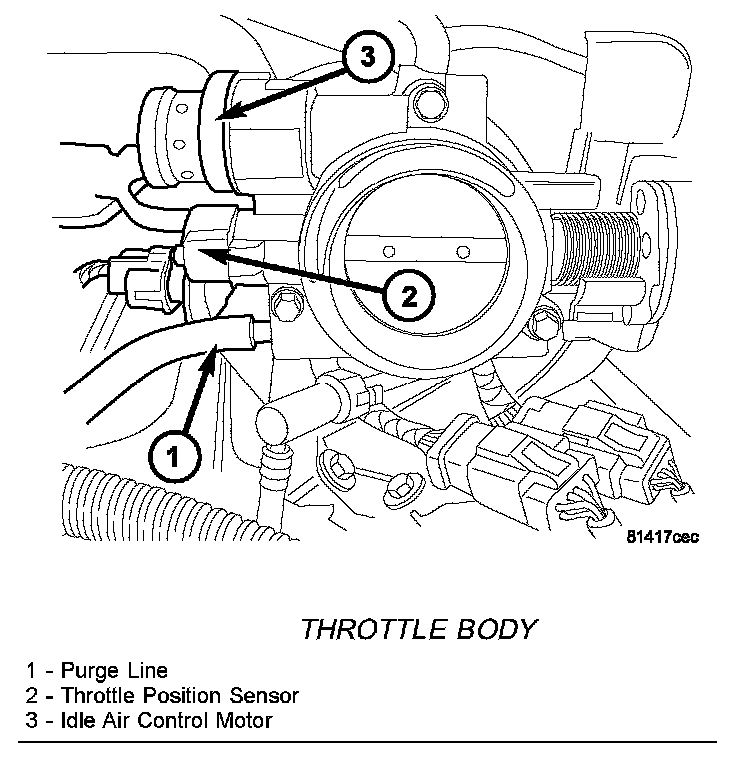

Throttle Body:

5. Disconnect electrical connectors and purge line from throttle body.
6. Remove 3 throttle body bolts.

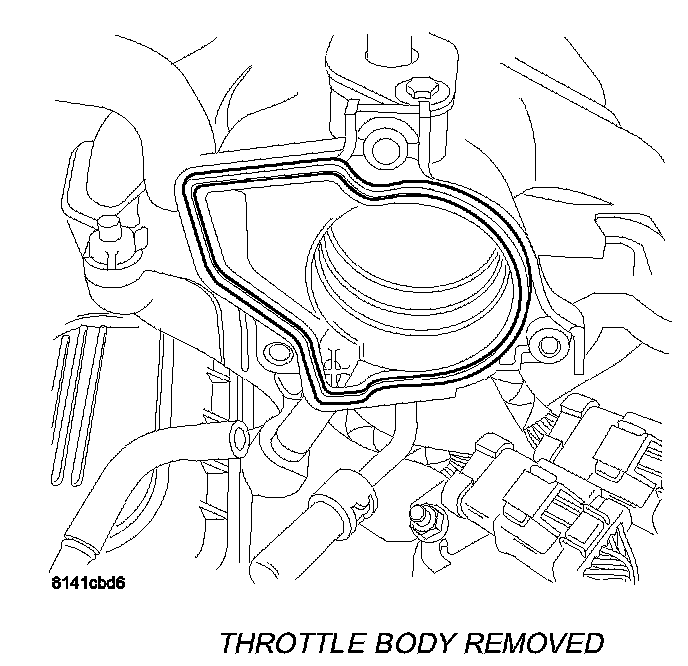

Throttle Body Removed:

7. Remove throttle body.
8. Clean mating surfaces.

INSTALLATION
1. Inspect and replace throttle body gasket if necessary.

Throttle Body Removed:

2. Install throttle body gasket.

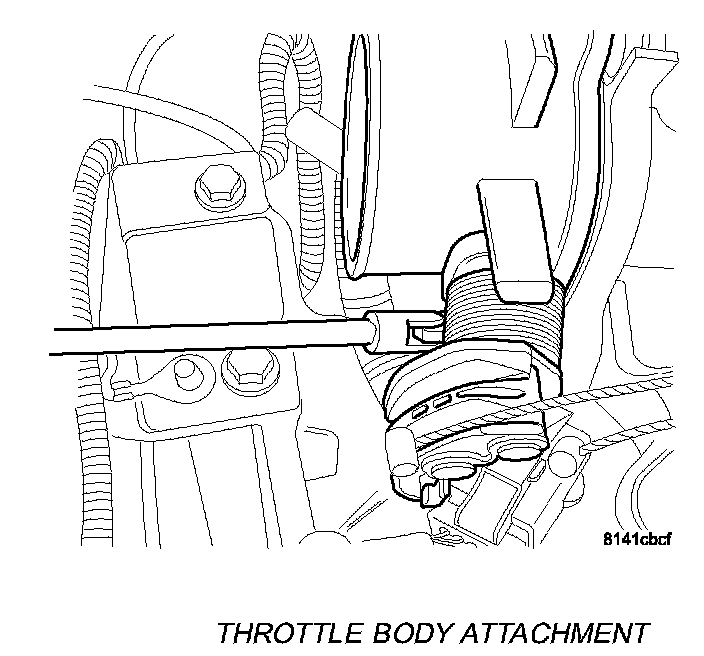

Throttle Body Attachment:

3. Install throttle body.
4. Install 3 throttle body bolts and tighten.

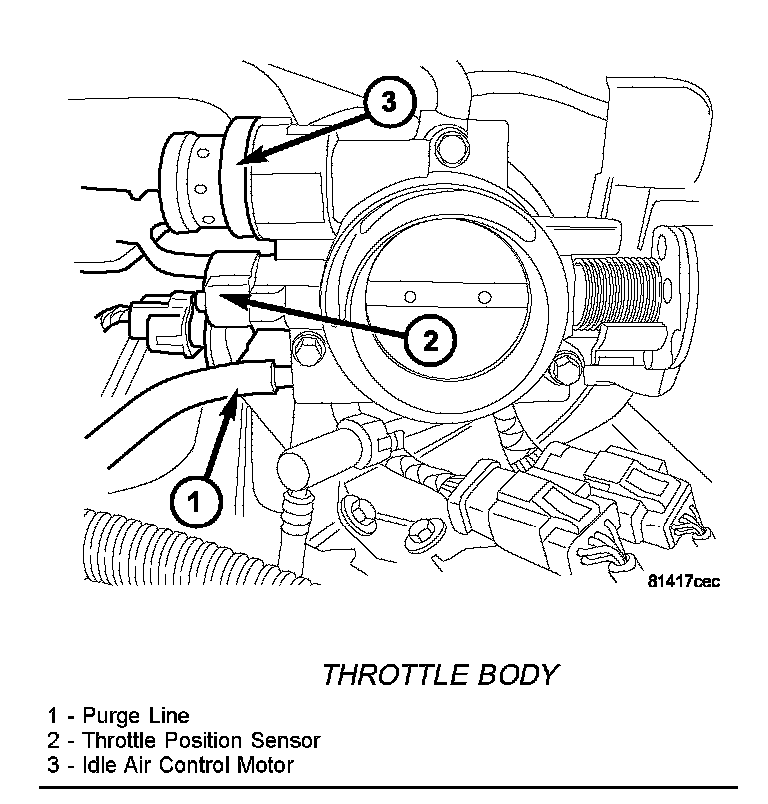

Throttle Body:

5. Connect electrical connectors and purge line to throttle body.

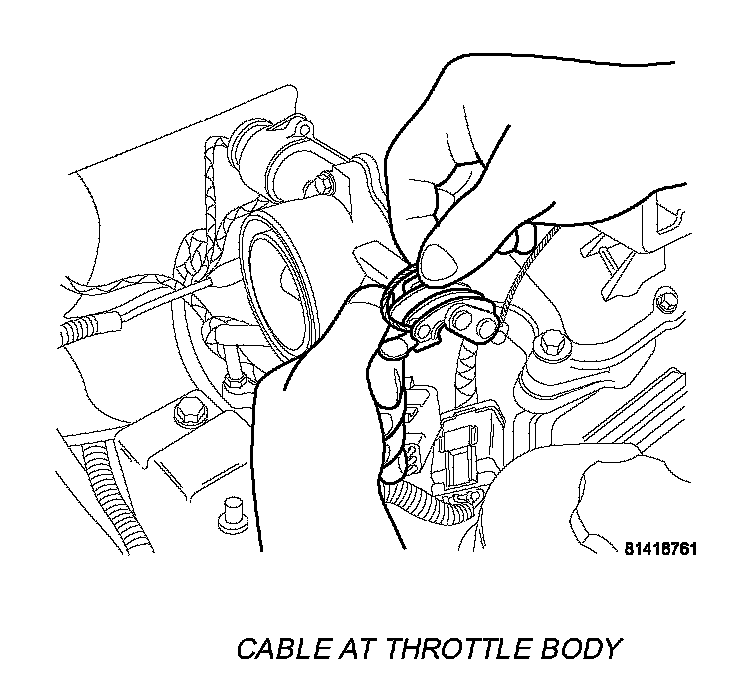

Cable At Throttle Body:

6. Hold throttle lever in wide open position. Install throttle cable and speed control cables to throttle arm.
7. Install the air cleaner box,
8. Install the engine cover.
9. Connect negative cable from battery.
