Chrysler
>>
2005
>>
Sebring Sedan L4-2.4L VIN X
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Fog/Driving Lamp
>>
Diagrams
>>
Connector Views
Connector Views

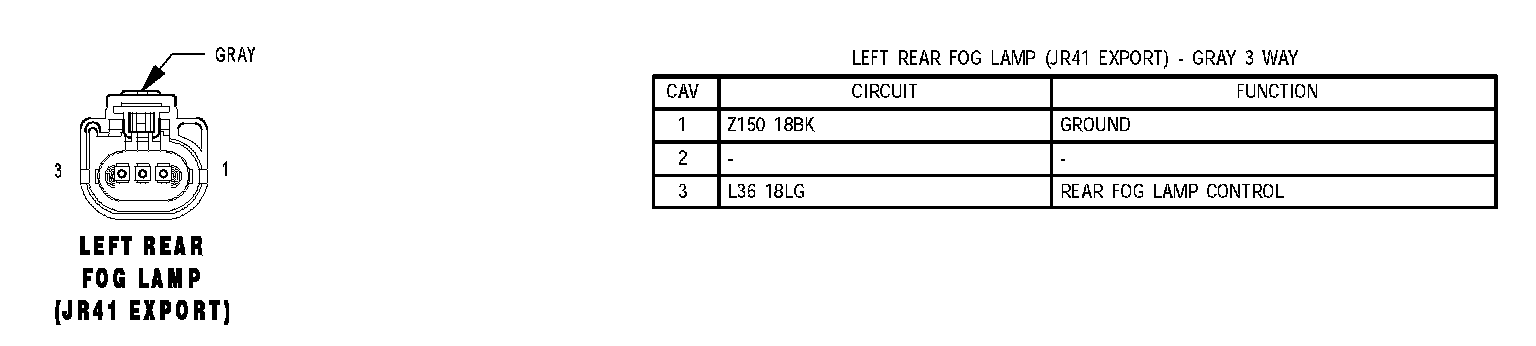

Left Rear Fog Lamp (JR41 Export):

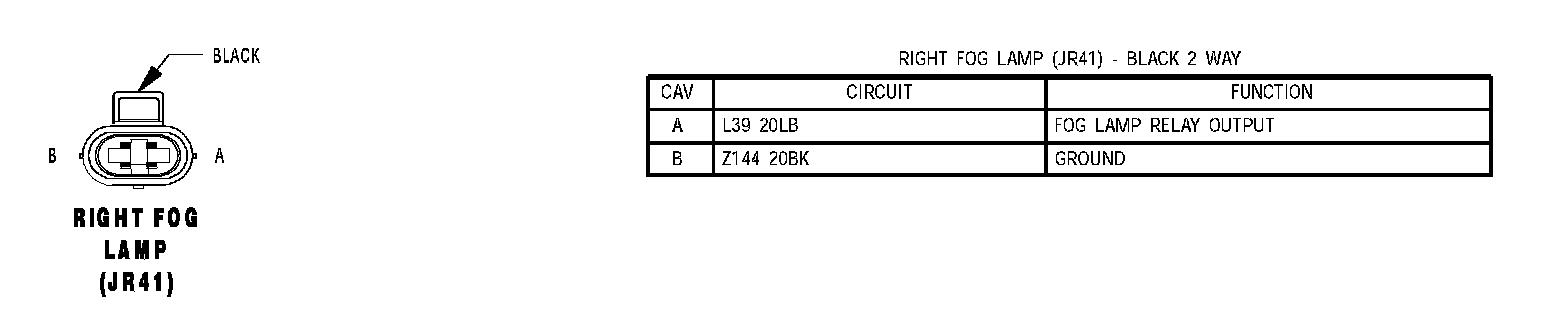

Right Fog Lamp (JR41):

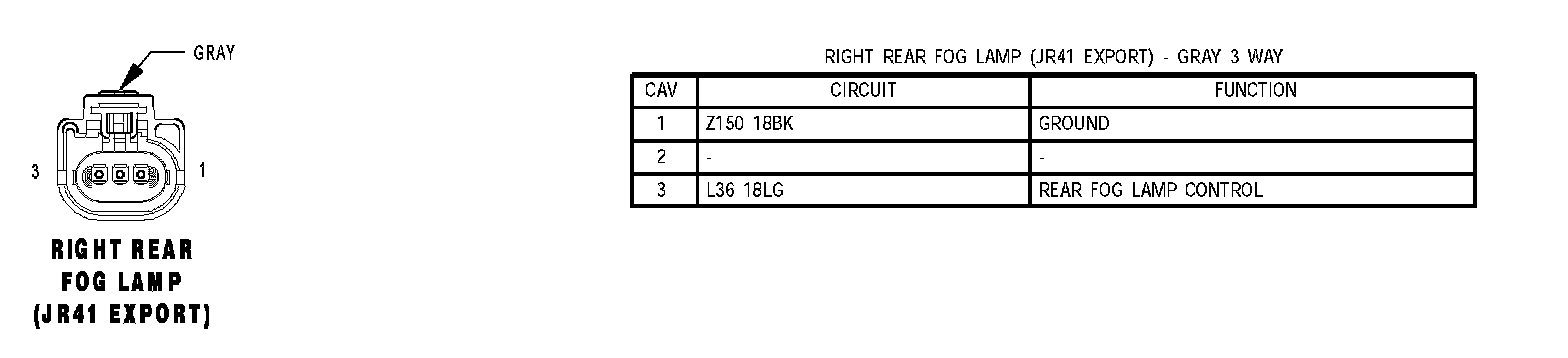

Right Rear Fog Lamp (JR41 Export):
