Home >> Chrysler >> 2006 >> Crossfire SRT-6 V6-3.2L SC VIN N >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heated Glass Element

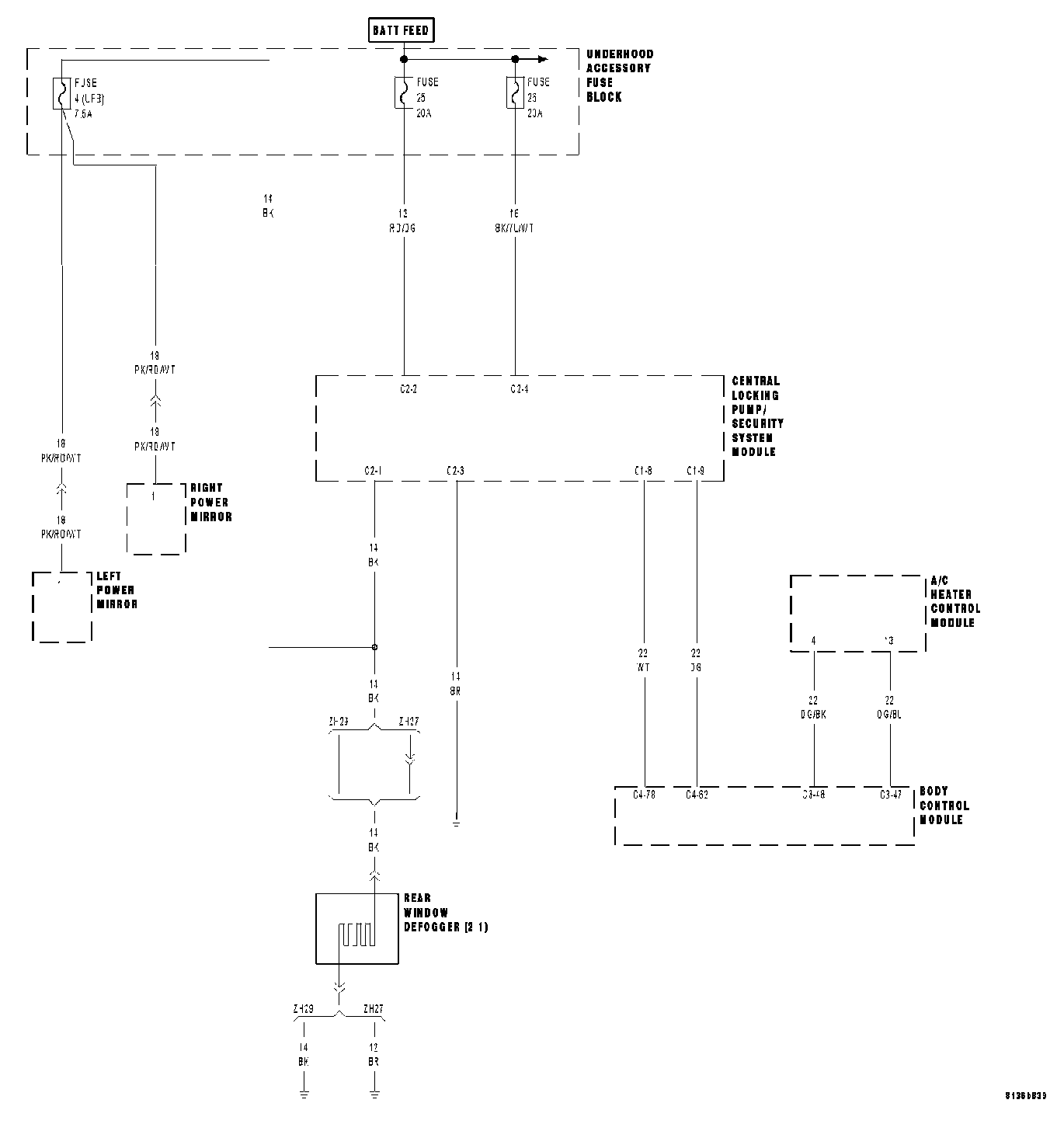

Heated Glass Element

SCHEMATICS AND DIAGRAMS
