Wiring Diagram Index

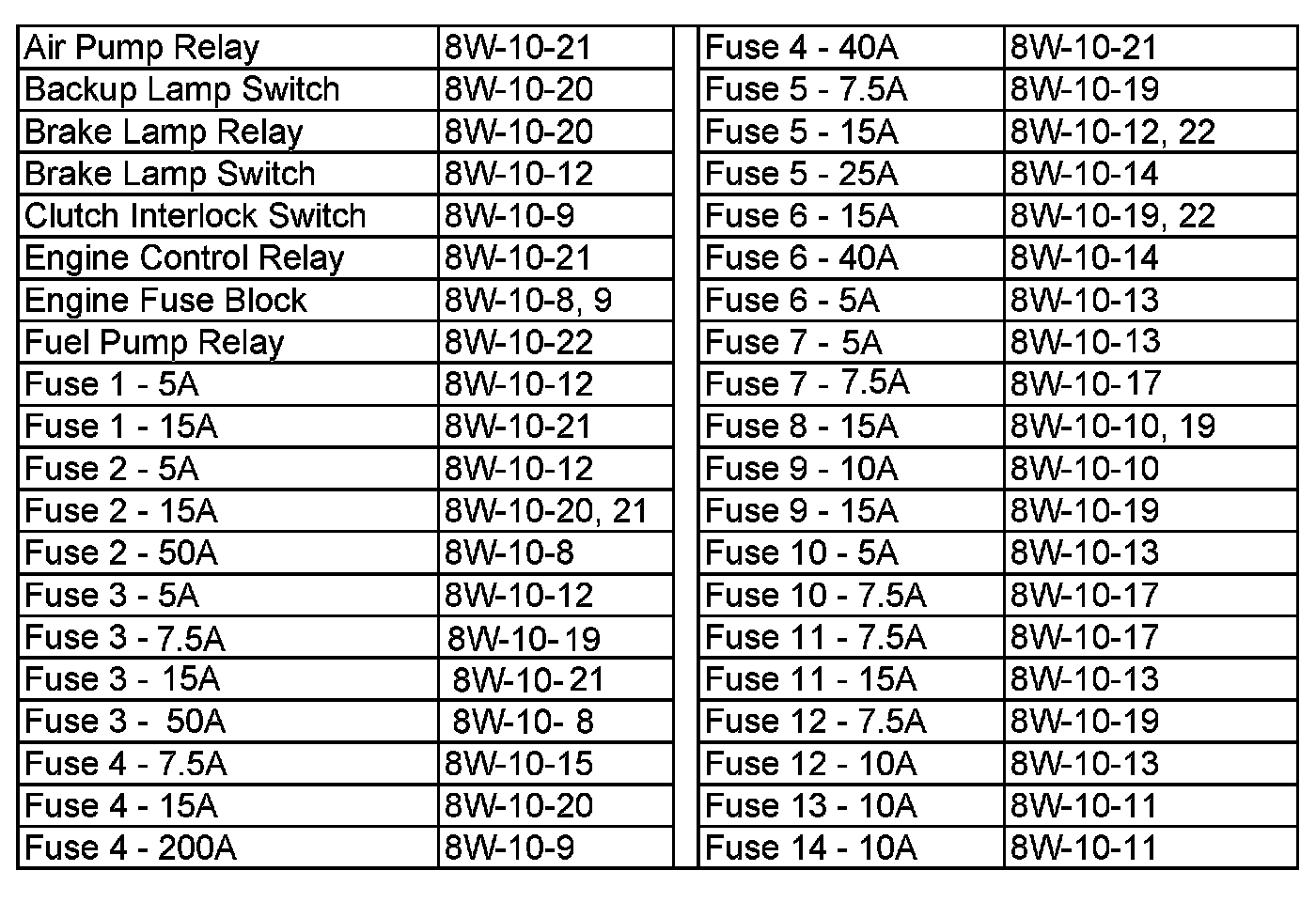

Power Distribution Circuits (Air Pump Relay - Fuse 14):

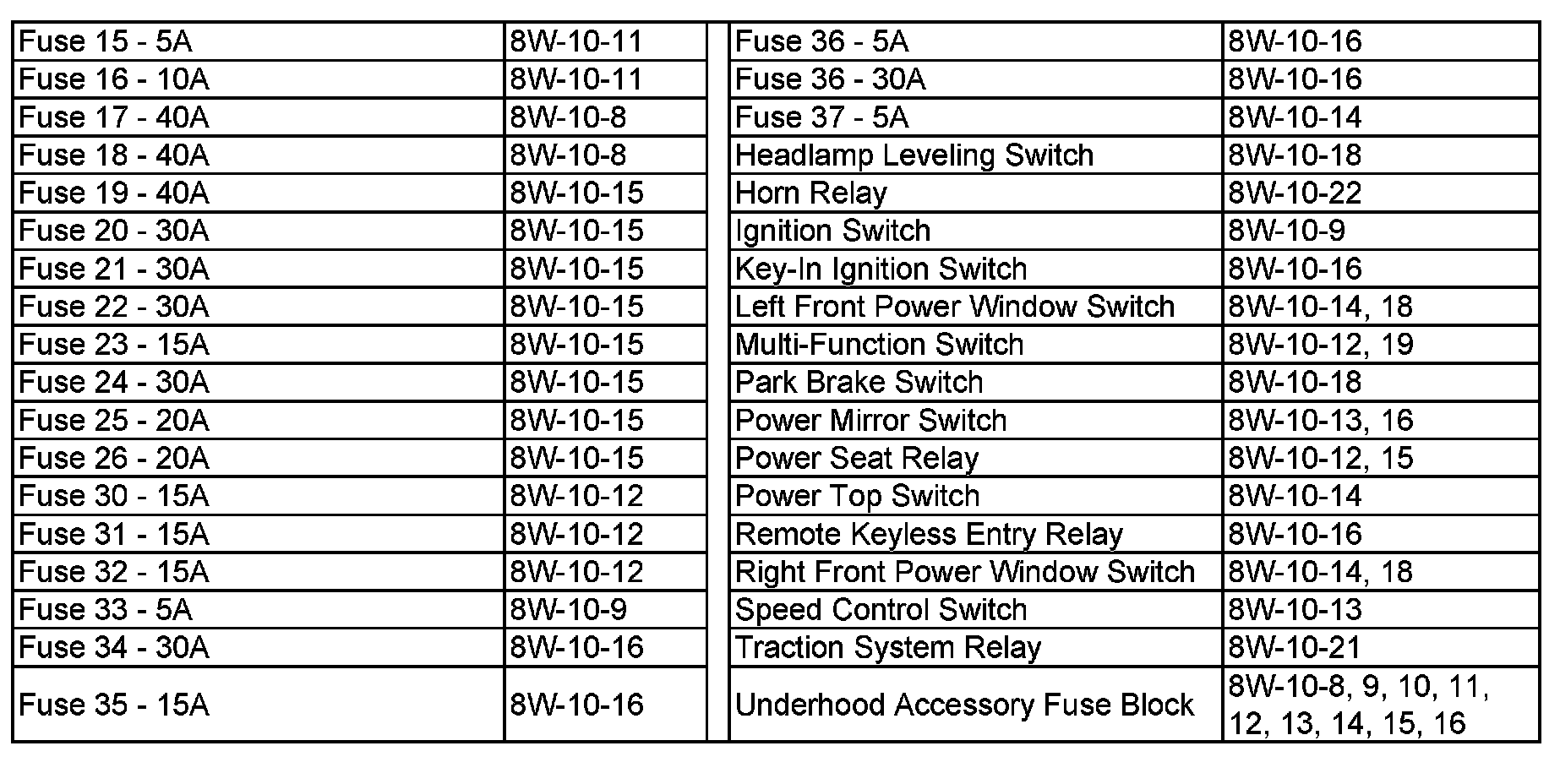

Power Distribution Circuits (Fuse 15 - Underhood Accessory Fuse Block):
