Installation

INSTALLATION

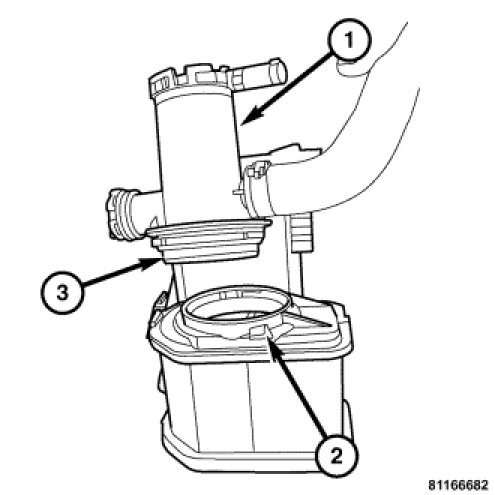

1. Install the charcoal canister shutoff valve (1) to EVAP canister (2) using new O-ring (3).

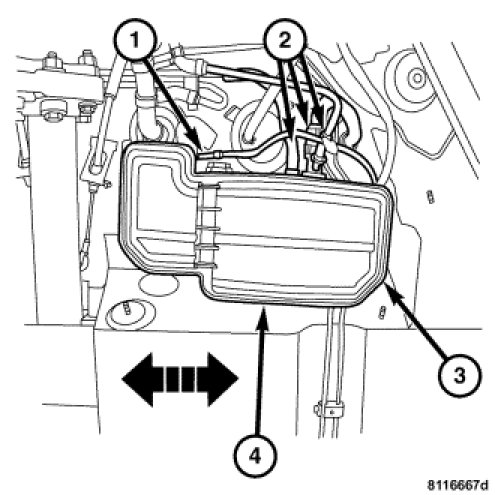

2. Connect the charcoal canister shutoff valve harness connector (1).

3. Connect the hoses (2).

4. Slide the EVAP canister to the right, on to mounting bracket.

5. Install the splash shield and retaining nuts.

6. Lower the vehicle.

7. Connect the negative battery cable.
