Installation

INSTALLATION

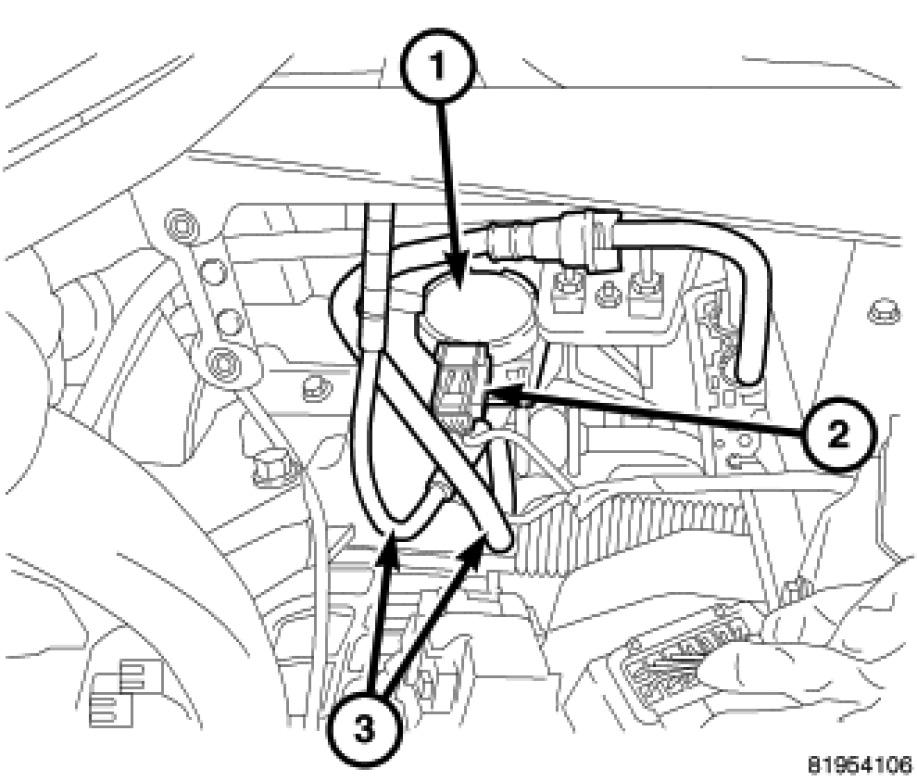

1. Install purge solenoid onto bracket (3).




2. Connect the vacuum hoses (3).

3. Connect the electrical connector (2).

4. Install the PCM.

5. Connect the negative battery cable.
