Sunroof / Moonroof Motor
Sunroof / Moonroof Motor

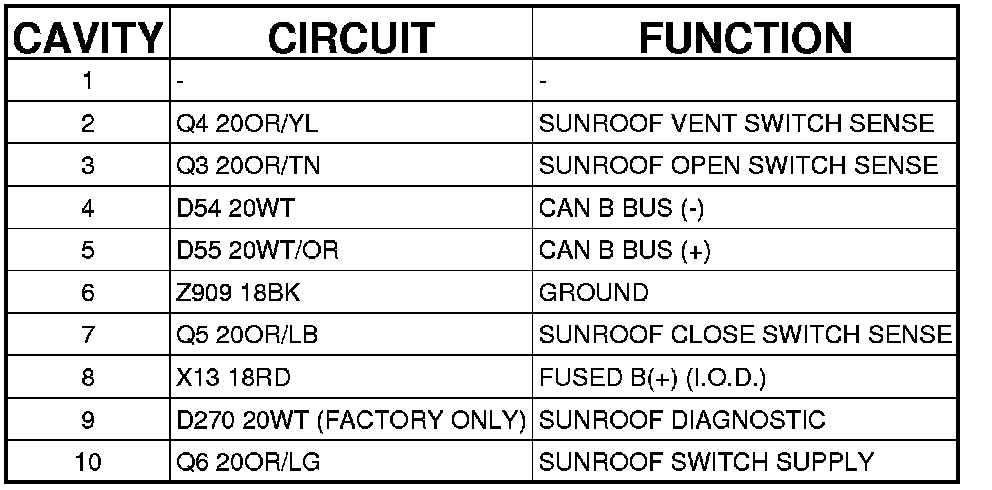

Connector - (SUNROOF) 10 WAY

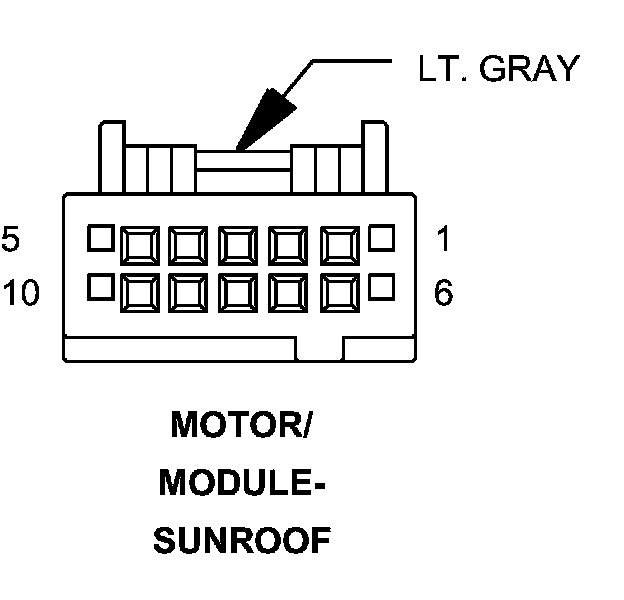

MOTOR/MODULE-SUNROOF - (SUNROOF) 10 WAY
