Cruise Control Servo: Service and Repair

CRUISE CONTROL ACTUATOR

Removal Procedure

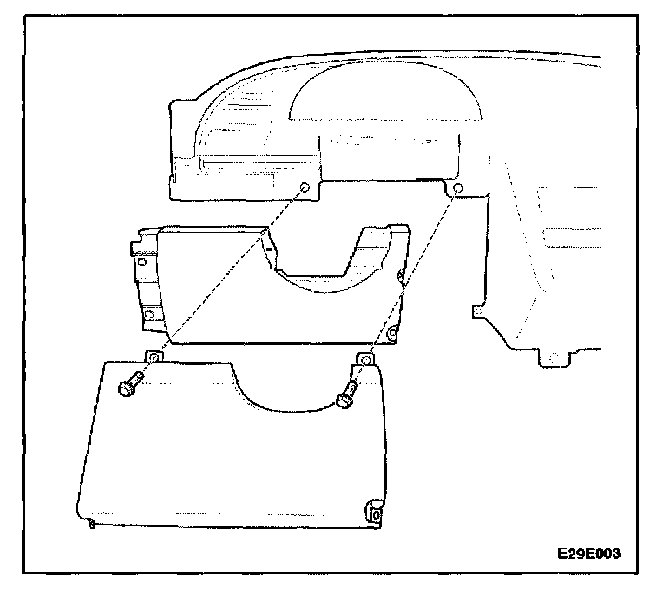

1. Carefully pull the knees bolster trim panel unit it is loose from its retaining clips.
2. Remove the bolts and knee protector plate.

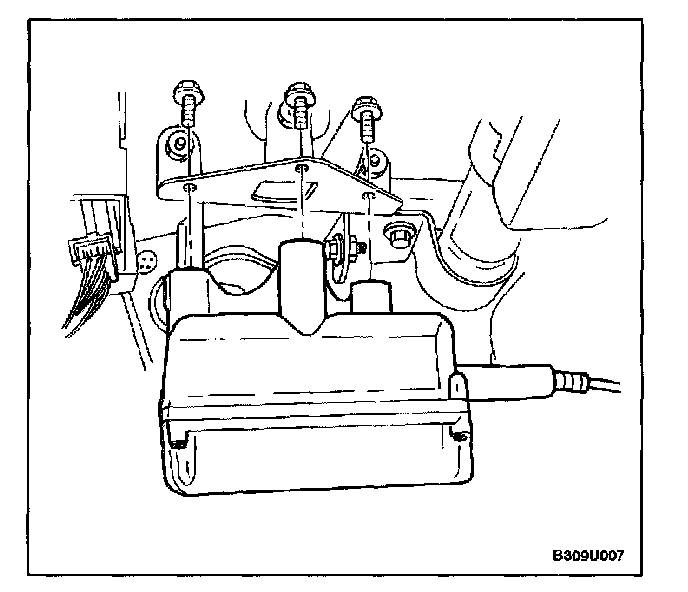

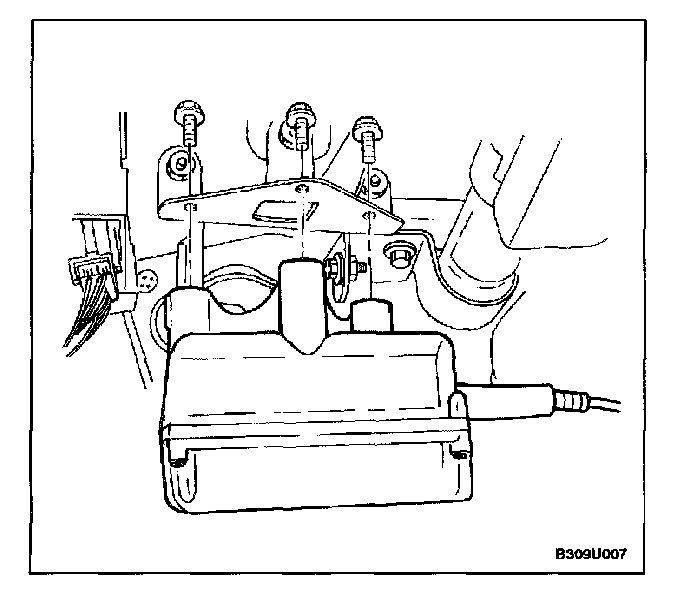

3. Remove to actuator mounting bolts.

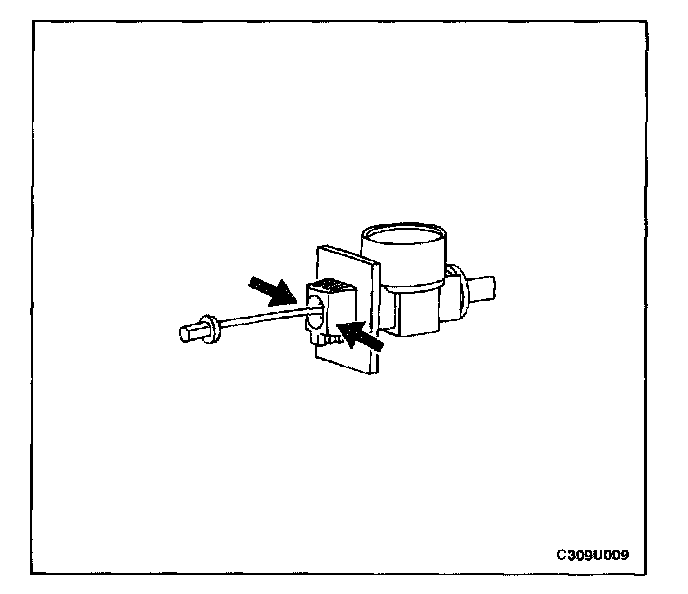

4. Press the tabs on the cable adjuster, from the adjuster bracket.

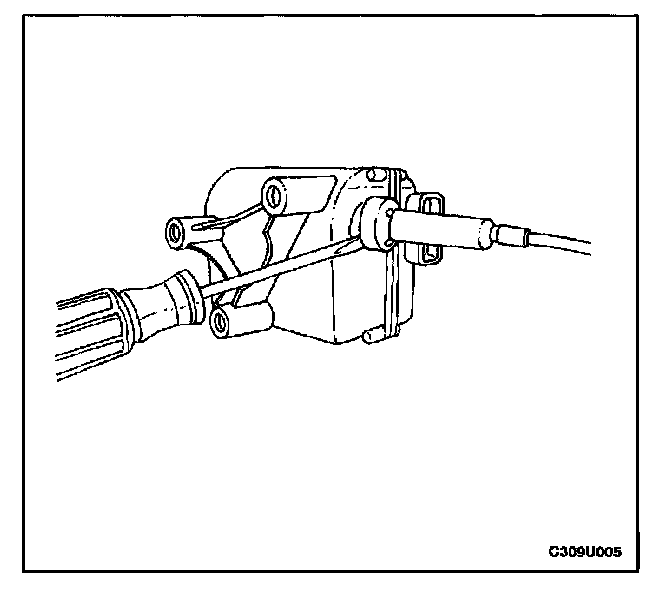

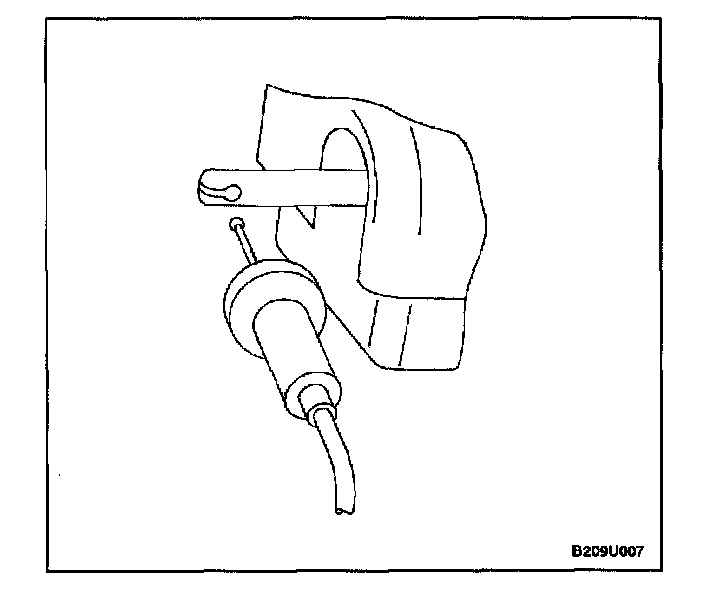

5. Tilt the cable housing to expose one of the slots in the actuator, and insert the tip of a flathead screwdriver into one of the slots.

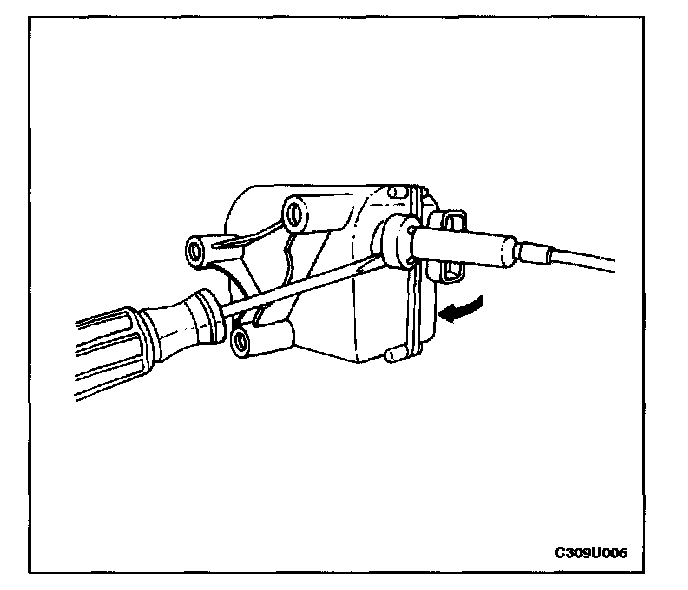

6. Tilt the cable housing toward the screwdriver, so that the cable housing retainers will release.

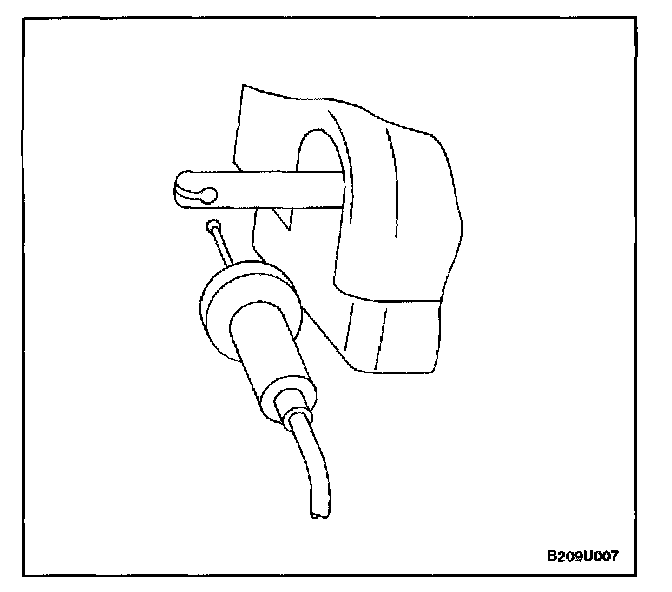

7. Remove the cable ball from the actuator rod.

Installation Procedure




1. Insert the cable ball into the actuator rod.




2. Align the cable housing and push the cable housing onto the actuator until it is locked in the retainers.




3. Install the cruise control actuator.

Tighten
Tighten the cruise control actuator mounting bolts to 20 N.m (15 lb-ft).




4. If the adjuster spring is not fully compressed, press the cable release button and slide the cable into the adjuster until the spring is fully compressed.




5. Insert the cable adjuster into the adjuster bracket.

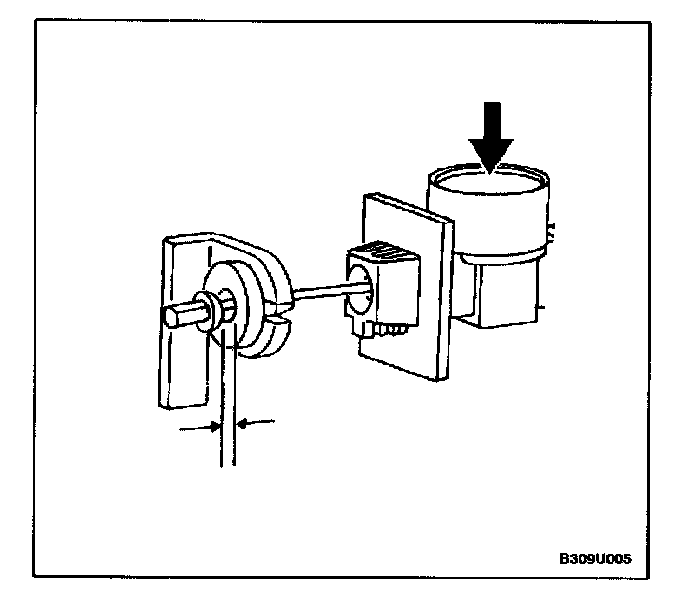

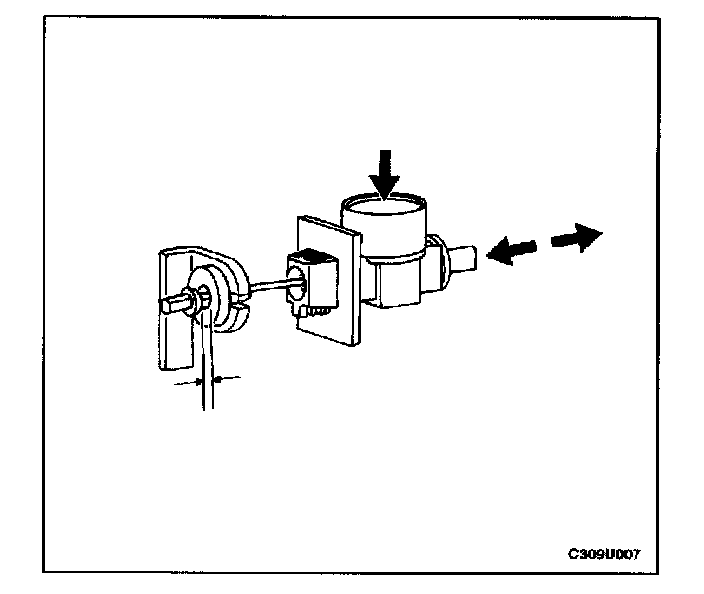

6. Press the cable release button and adjust the cable to achieve a gap of 0.5 mm (0.02 inches) between the bushing and the nipple of the ball.
