Toe-In

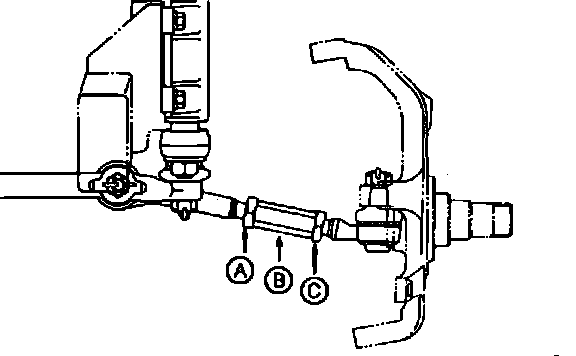

Fig. 5 Toe-in Adjustment.:

1. Loosen locknuts on both sides of tie rod adjusting tube, right and left tie rod Fig. 5.
2. Adjust tie rod length by turning tie rod adjusting tube, right and left tubes must be turned same amount.
3. After adjustment, torque tie rod 86-122 ft. lbs.
