Home >> Daihatsu >> 1991 >> Charade L3-0993cc 1.0L >> Repair and Diagnosis >> Diagrams >> Connectors >> Front Door >> Left Hand

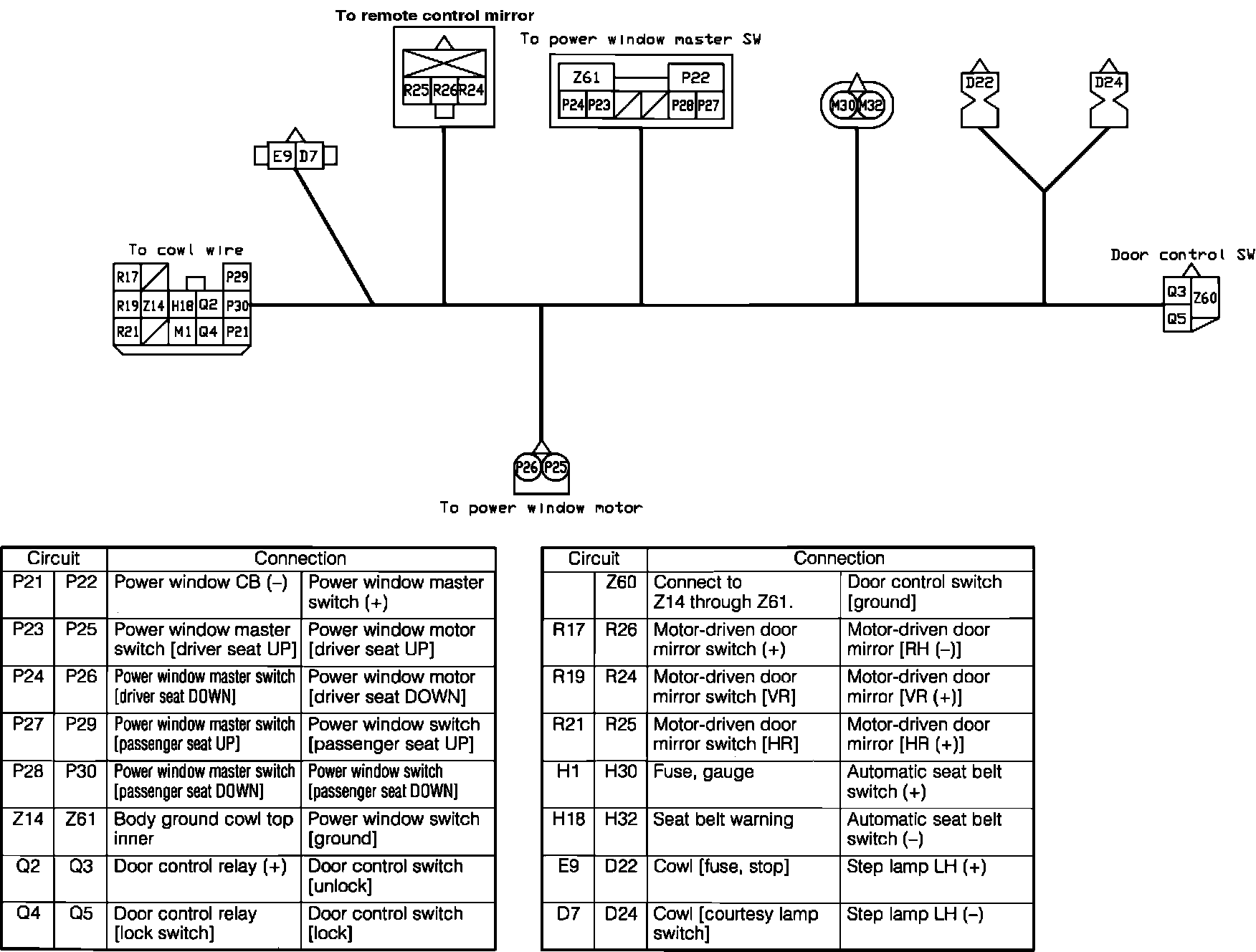

Left Hand

Model G100, G102, 2 Door:
