Home >> Dodge or Ram Truck >> 1987 >> Dakota 4WD V6-239 3.9L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Wiper and Washer Systems >> Wiper Control Module >> Locations

Wiper Control Module: Locations

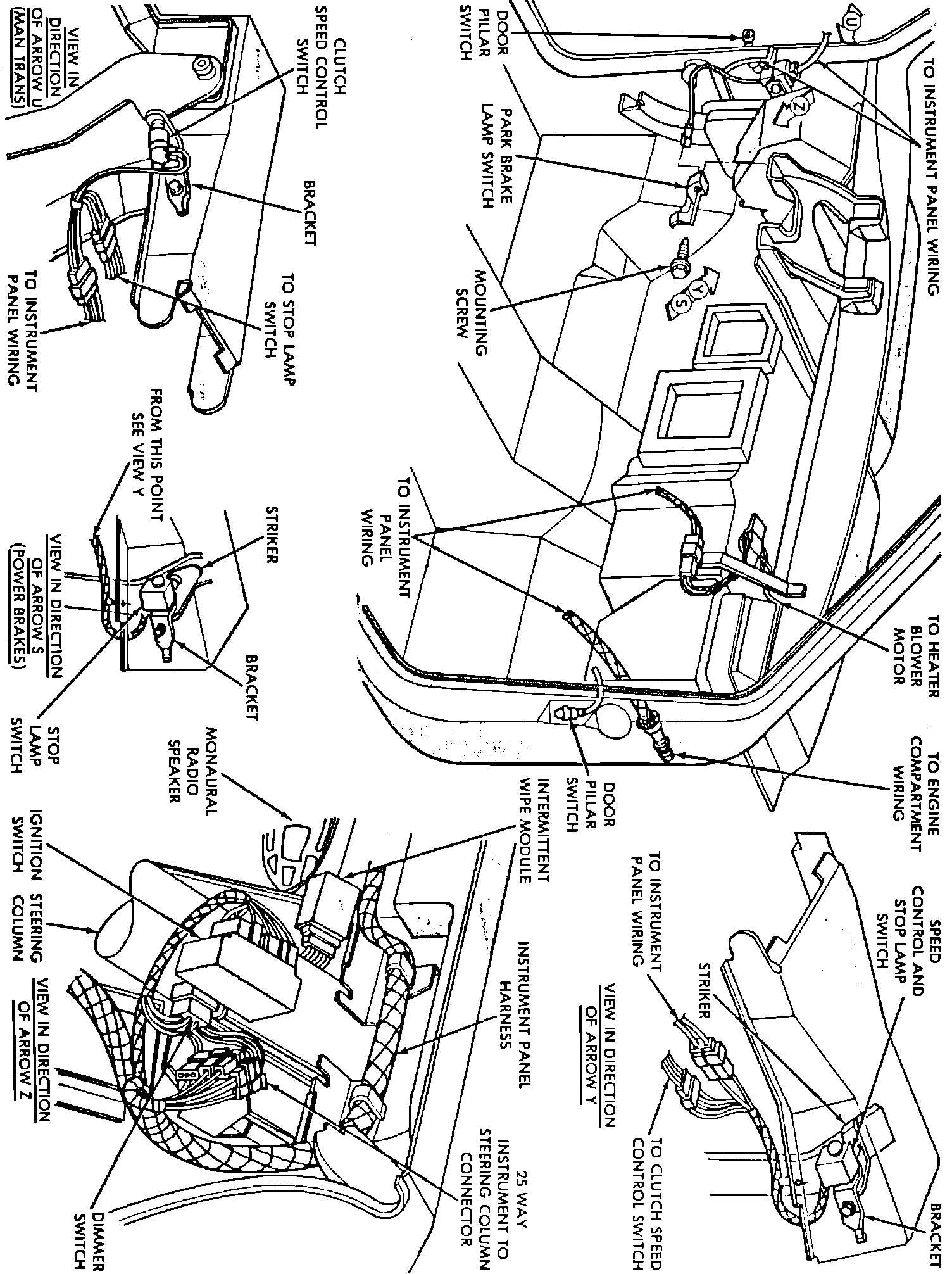

Passenger compartment electrical components.:




On RH Side Of Steering Column

Applicable to: 1987 Dakota
