Coolant Temperature Sensor/Switch (For Computer): Service and Repair

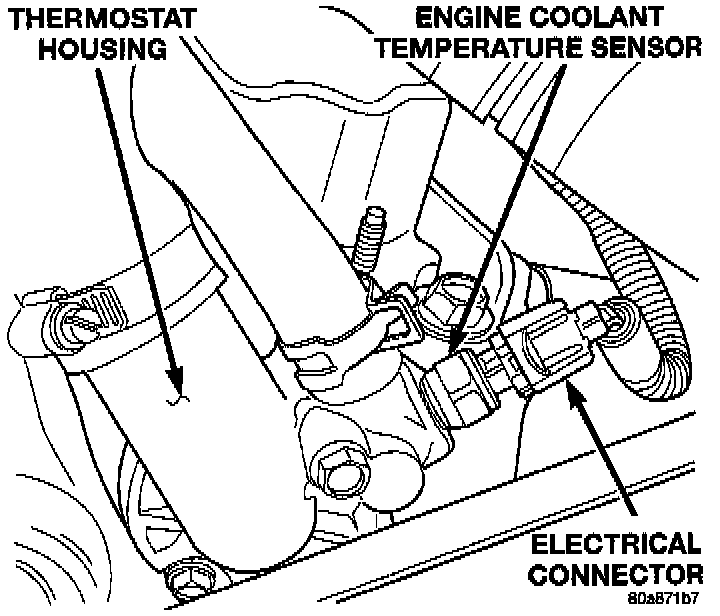

Fig 87 Engine Coolant Temperature Sensor:

WARNING: HOT, PRESSURIZED COOLANT CAN CAUSE INJURY BY SCALDING. COOLING SYSTEM MUST BE PARTIALLY DRAINED BEFORE REMOVING THE COOLANT TEMPERATURE SENSOR. REFER TO COOLING.

REMOVAL
1. Partially drain cooling system. Refer to Cooling System.
2. Disconnect electrical connector from sensor (Fig. 87).
3. Remove sensor from thermostat housing.

INSTALLATION
1. Install sensor.
2. Tighten to 11 Nm (8 ft lb) torque.
3. Replace any lost engine coolant. Refer to Cooling System.
